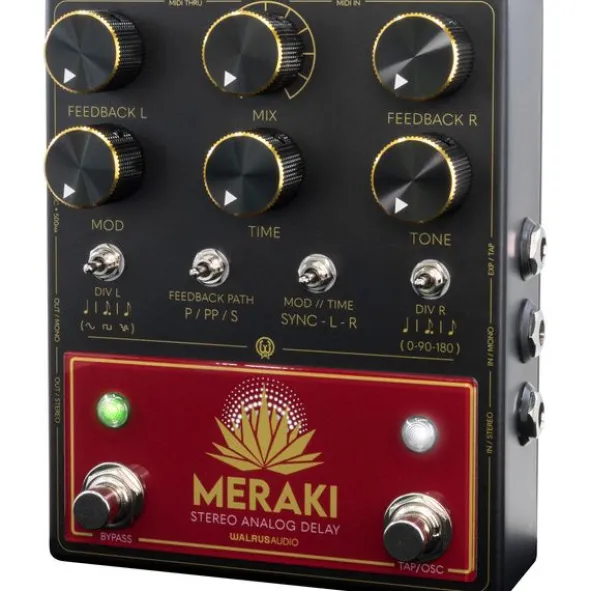

Walrus Audio Meraki Red Stereo Delay

Effect Pedal

• Hi-End stereo analogue delay
• Uses 8x MN3005 chips for warm, rich echoes
• Delay time from 80 ms to 1200 ms
• Stereo or Mono usable
• Delay Modes: Parallel, Ping-Pong, Series (serial)
• Independent setting of delay times for left and right channel
• Independent setting of note values per channel: crotchet, quaver, dotted quaver
• Provides both syncopated and classic delay sounds
• Active tilt EQ for the effect signal, from bass-boost/hi-cut to high-boost/bass-cut
• Adjustable waveforms for modulation: sine, square, random
• Adjustable modulation phase for the right channel: 0º, 90º, 180º
• Parallel delay mode: left and right channels operate independently of each other
• Delay mode ping-pong: repetitions alternate between the channels
• Delay Mode Series: syncopated rhythms
• Delays of the left channel are mixed with the input of the right channel
• Trails and no-trails mode: Effect fades out or effect stops immediately after deactivation
• Tap tempo foot switch
• Holding the tap tempo foot switch sets the feedback to maximum (oscillation)
• MIDI input
• Expression controls the delay time or the modulation depth

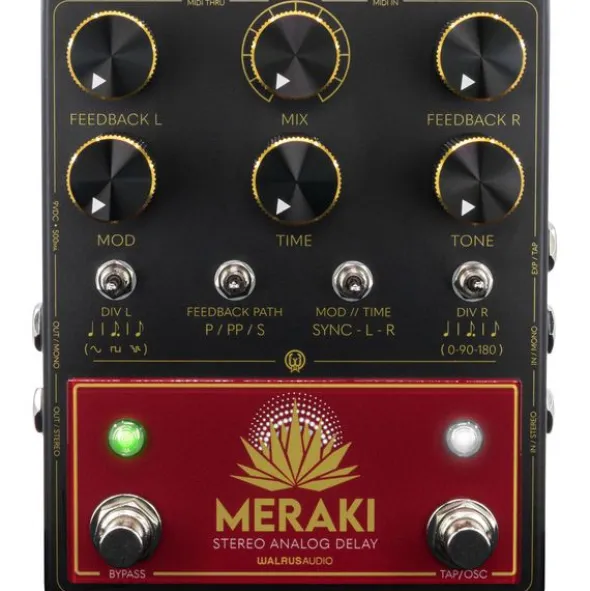

• Controls: Feedback L, Mix, Feedback R, Mod, Time, Tone
• Switches: Div L, Feedback Path, Mod/Time, Div R
• Footswitch: Effect Bypass, Tap/Osc
• Input: 2 x 6.3 mm jack
• Output: 2 x 6.3 mm jack

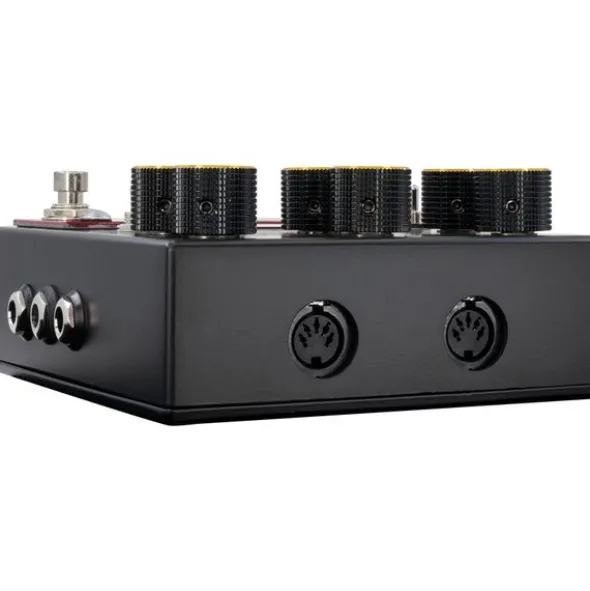

• MIDI In: 1 x MIDI DIN
• MIDI Thru: 1 x MIDI DIN
• Tap/Exp input: 1x 6.3 mm jack
• Power supply: Operation with 9V DC power supply (2.1 mm x 5.5 mm barrel connector, centre negative, available under Art. 409939 – not included
• Power consumption: 500 mA
• Dimensions: 12.7 x 14.6 x 5.7 cm
• Made in USA
