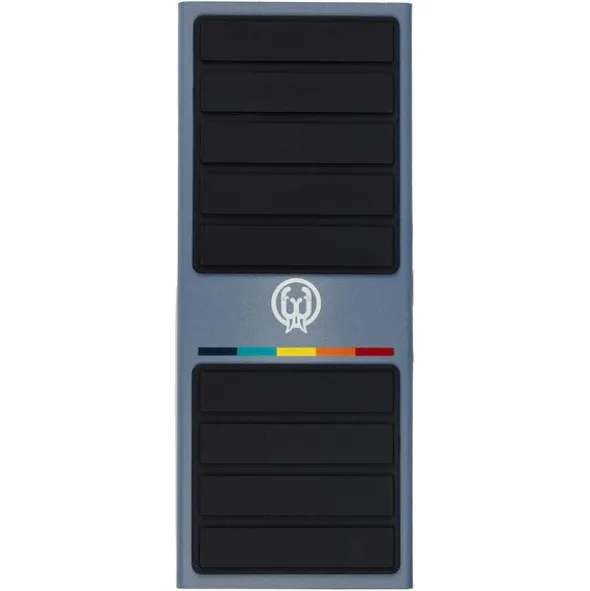

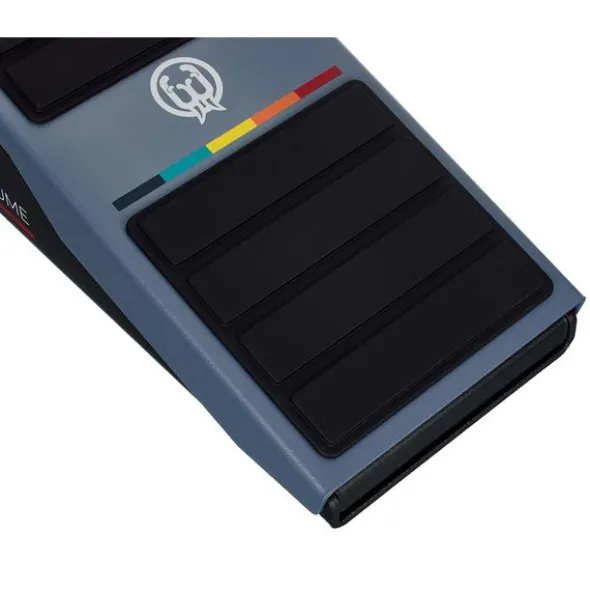

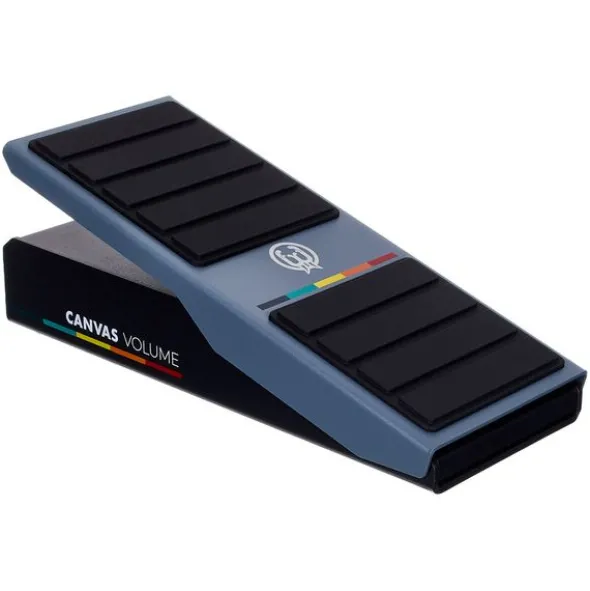

Walrus Audio Canvas Volume Pedal

Volume Pedal

• Robust analogue volume pedal with many flexible adjustment options
• Based on a contactless, precise position sensor and high-quality VCAs
• Analogue signal path without the mechanical compromises of traditional volume pedal designs
• Contactless design without potentiometers or gears for consistent performance
• Volume curves can be adjusted to suit the feel of the game
• The user interface is discreetly placed under the heel of the pedal
• Two-button control with LED indicators for clear parameter selection
• Fully adjustable functions such as taper, minimum volume, maximum gain and lag
• Taper control offers eight sweep curves based on classic volume pedals
• “Minimum On” adjusts the volume of the pedal’s lower setting
• “Max Gain” adjusts the volume when the pedal is pressed, from unity gain to +9 dB boost
• ‘Lag’ sets a delayed response of the volume for smoother transitions.
• Robust steel and aluminium chassis
• Supports flexible routing: mono with tuner output, dual mono or true stereo operation
• Integrated utility menu for more in-depth system control

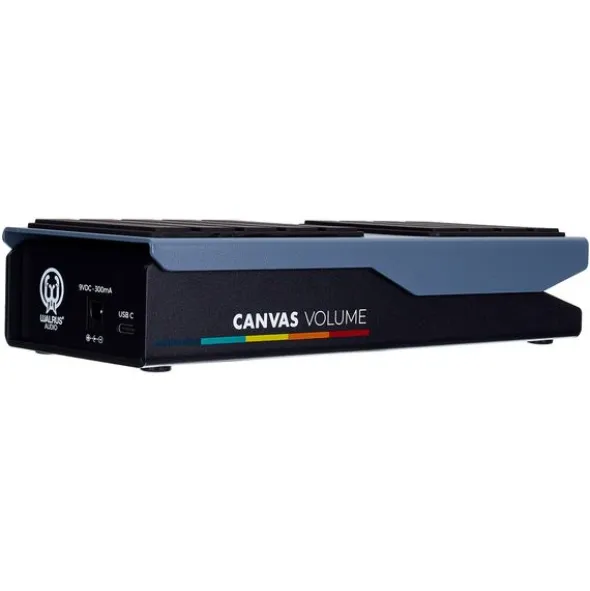

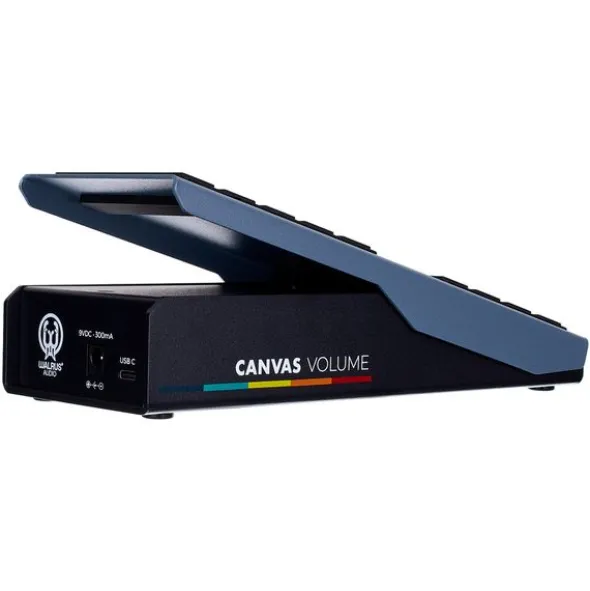

• USB-C port for firmware updates
• High impedance 1 MO input preserves the sound of passive instruments

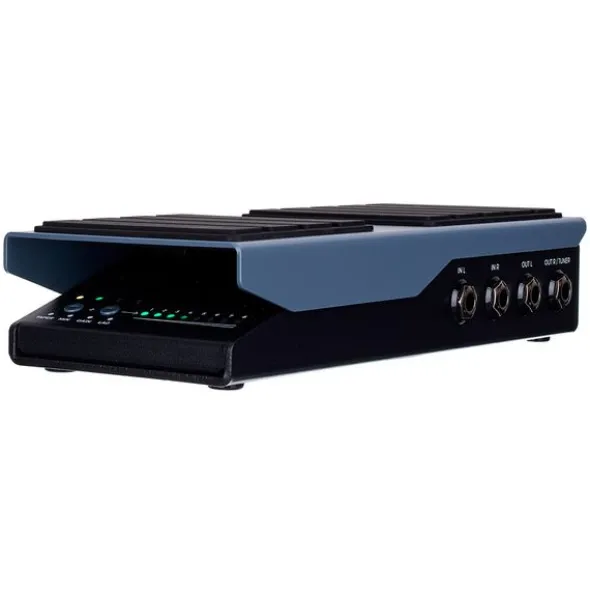

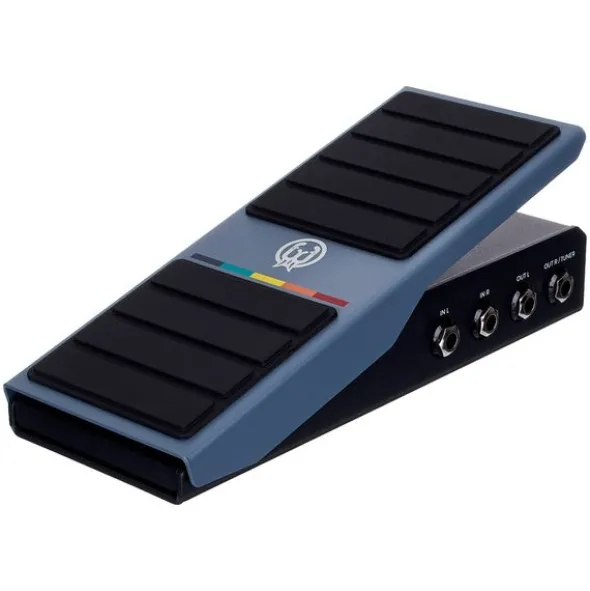

• Inputs L and R: 2 x 6.3 mm jack
• Outputs L and R/Tuner: 2 x 6.3 mm jack

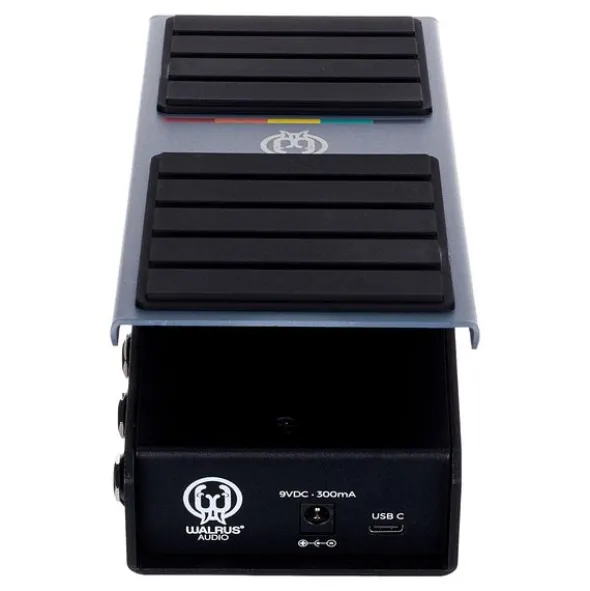

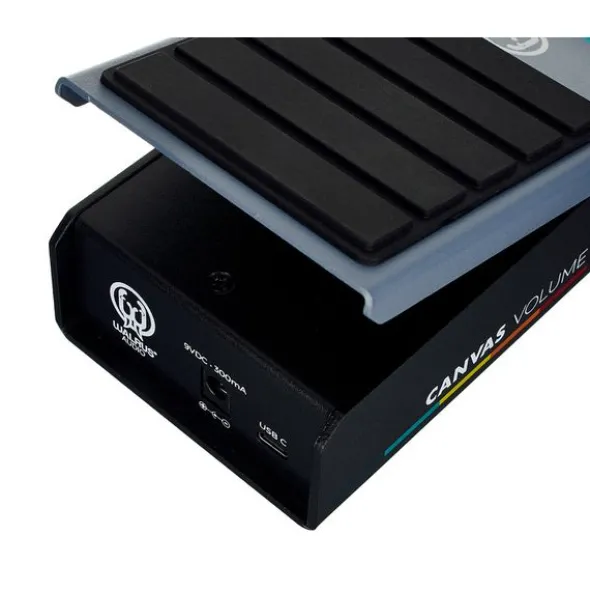

• Power supply (not included): 9 V DC (centre negative), 300 mA min
• Dimensions (W x H x D): 4.8 x 9.1 x 22.5 cm
• Made in USA
