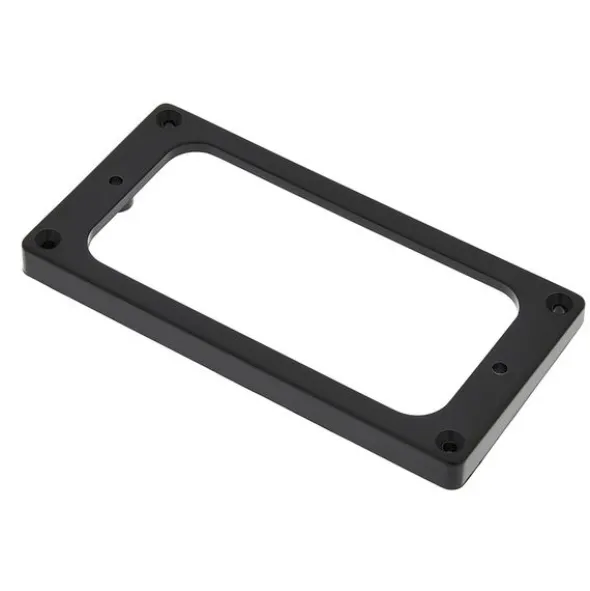

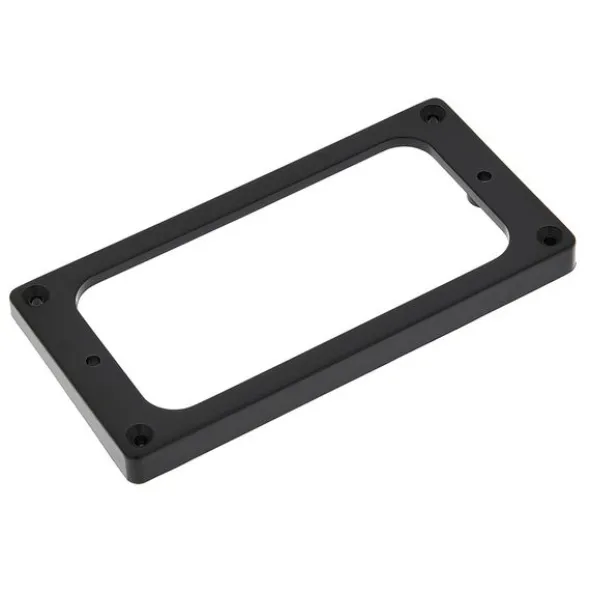

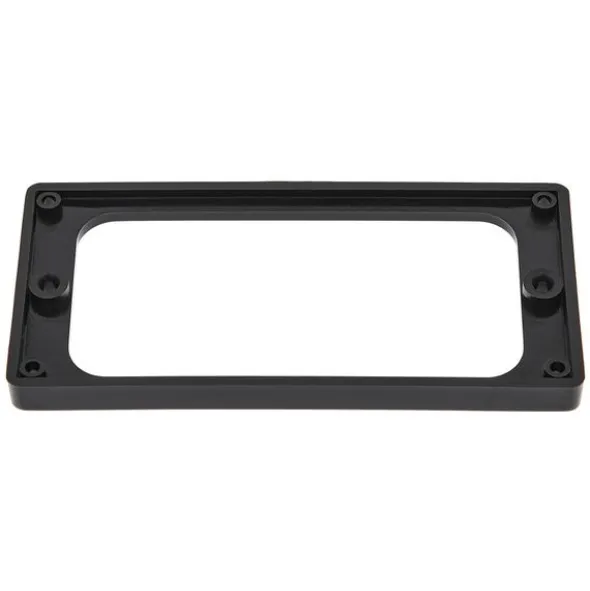

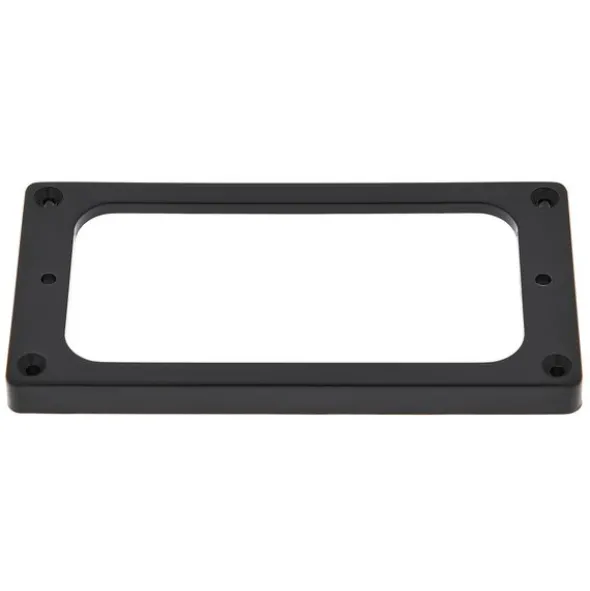

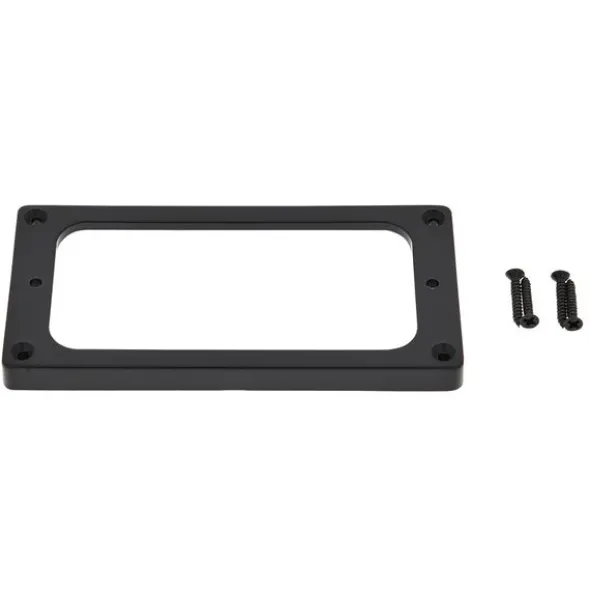

TV Jones EM1 Humbucker Ring Low BK

Pickup Frame

• Suitable for TV Jones Universal Mount Pickups
• For mounting Universal Mount (Filter’Tron size) pickups in a standard humbucker slot
• For use at the neck position on instruments with a high bridge (T.O.M.-style) or at all positions on instruments with a low bridge (F-style) or tremolo
• Material: Plastic
• Frame height: low
• Height: 4.5 – 6.7 mm
• Outer dimensions (L x W): 88.9 x 44.5 mm
• Inner dimensions (L x W): 71.5 x 34.5 mm
• Mounting screw spacing (L x W): 36.5 x 80.9 mm
• Distance between pick-up screws: 78.5 mm
• Colour: Black
• Made in USA
• Quantity: 1 piece

Notes: not suitable for standard humbucker pickups. – Original Gretsch and TV Jones Filter’Trons have a 1/4″ corner radius, while some modern Filter’Trons have a smaller corner radius and may not fit this frame.
