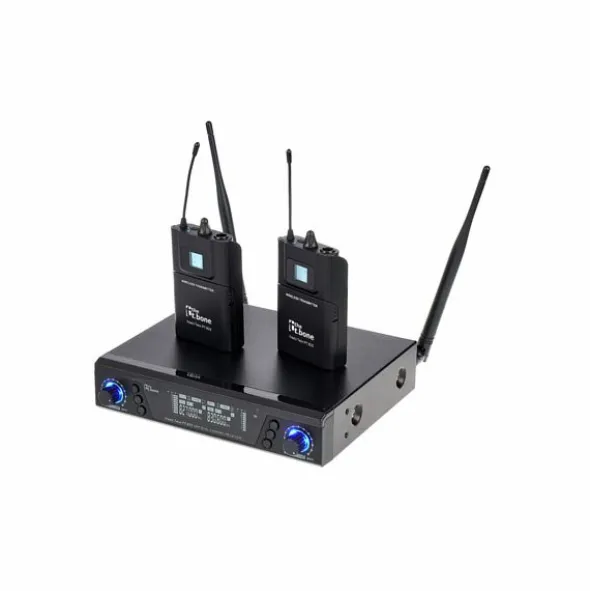

the t.bone freeU Twin PT 823 B-Stock

2-Channel UHF Wireless System

• With pocket transmitter and guitar cable for instrument applications
• Frequency band: 823 – 832 MHz
• Frequency range: 50 – 16,000 kHz
• Ten pre-programmed frequency groups with ten available channels each
• Auto squelch
• Frequency scan in the receiver
• Adjustable AF output
• Transmission power: 30 mW
• Infrared transfer of the settings from the receiver to the transmitter
• Pilot tone
• Increments of 80 kHz
• Modulation type: F3E
• Two BNC connectors for antennas
• Two XLR outputs and one jack output
• Operates with a 12 V, 1 A DC power supply, centre positive
• Transmitter housing: Plastic
• LC display
• each transmitter works with 2x AA Batteries or rechargeable batteries (not included)
• Housing: 9.5″, 1 U
• Includes guitar cables, antennas, EU power supply and rack kit for the installation of a 1 U receiver
• Suitable antenna converter: 177448 (not included)

Note: A maximum of two systems (four channels in total) can be operated simultaneously in this frequency band.

Disponível desdeAgosto 2018

número de artigo449962

unidade de venda1peça(s)

Guitar Channels2

Transmission FormatAnalog

Frequency823 MHz – 832 MHz

Transmitter TypePocket Transmitter

Receiver TypeStationary

Mountable AntennaBNC

Charging SystemNo

Integrated BatteryNo

DanteNo

DiversityYes

Transmission Power in mW30 mW

Usable Frequencies100

Switching bandwidth in MHz9 MHz

Frequency DisplayYes

Automatic Frequency SearchYes

Battery Status DisplayYes

Transmitter battery poweredNo

OutputXLR

Receiver Width in mm210 mm

Receiver Height in mm44 mm

Receiver Depth in mm200 mm

RackkitYes

Receiver Weight in kg0,9 kg
