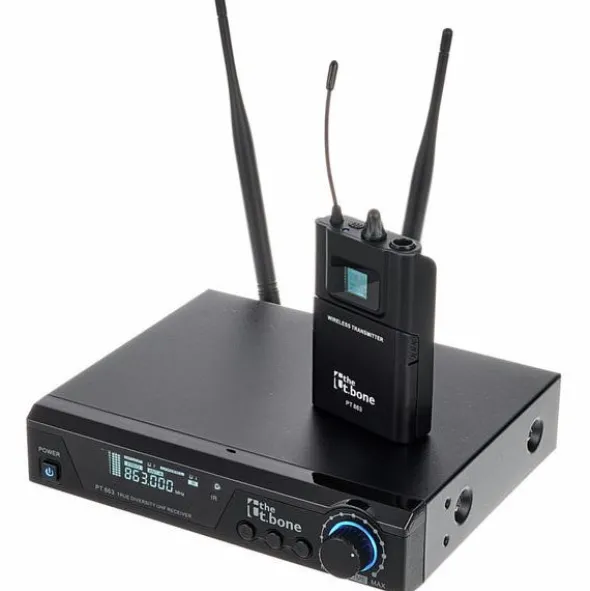

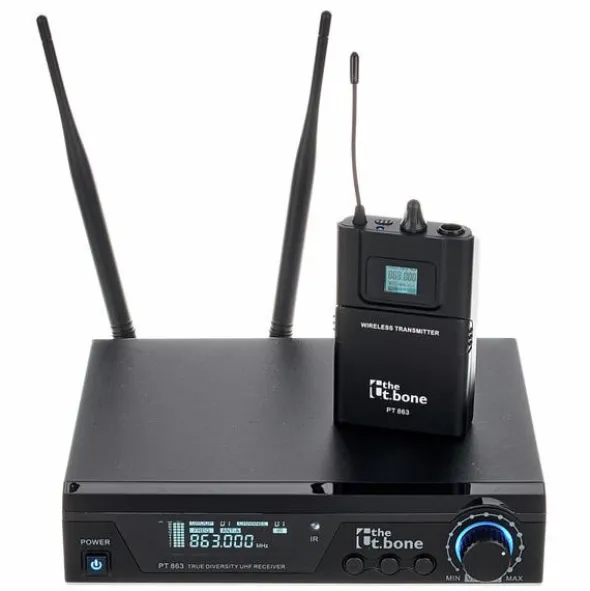

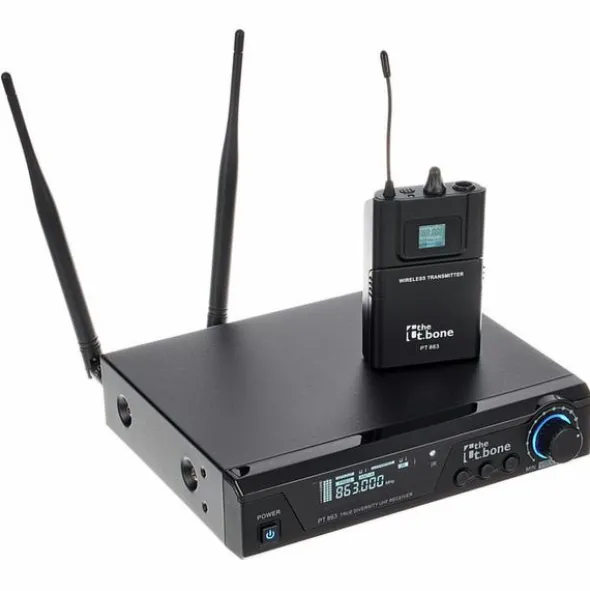

the t.bone freeU PT 863

UHF Wireless System

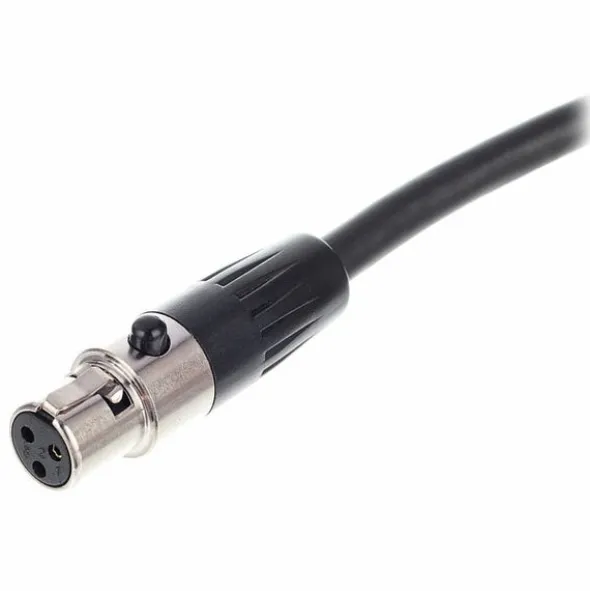

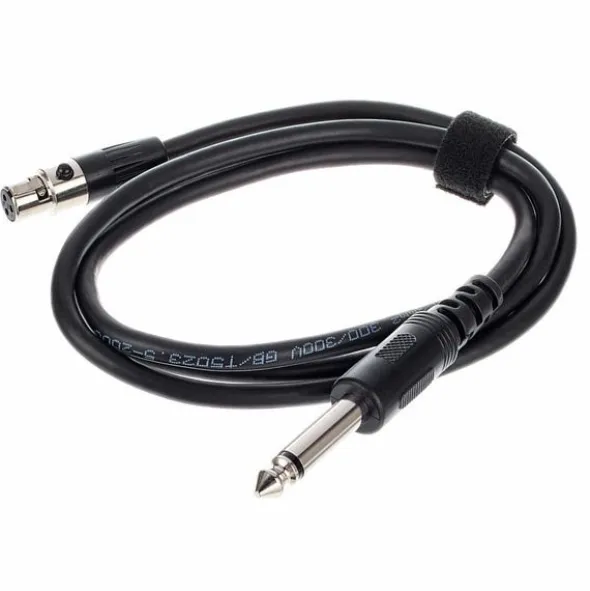

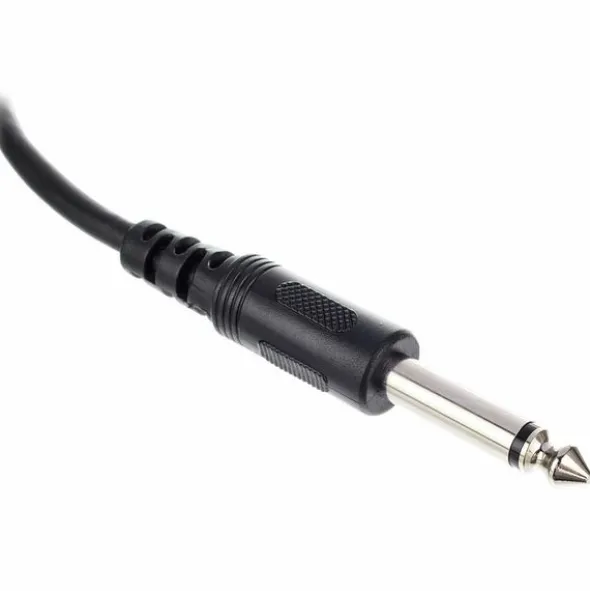

• With pocket transmitter and guitar cable for instrument applications
• Frequency band: 863 – 865 MHz
• Frequency range: 50 – 16,000 Hz
• 4 Pre-programmed frequency groups with 4 available channels each
• Auto squelch
• Frequency scan in the receiver
• Adjustable AF output
• Transmission power: 10 mW
• Infrared transfer of the settings from the receiver to the transmitter
• Pilot tone
• Increments of 125 kHz
• Modulation type: F3E

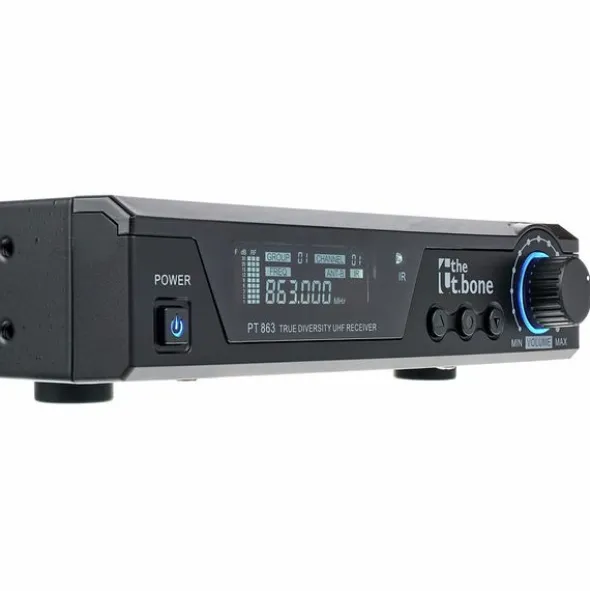

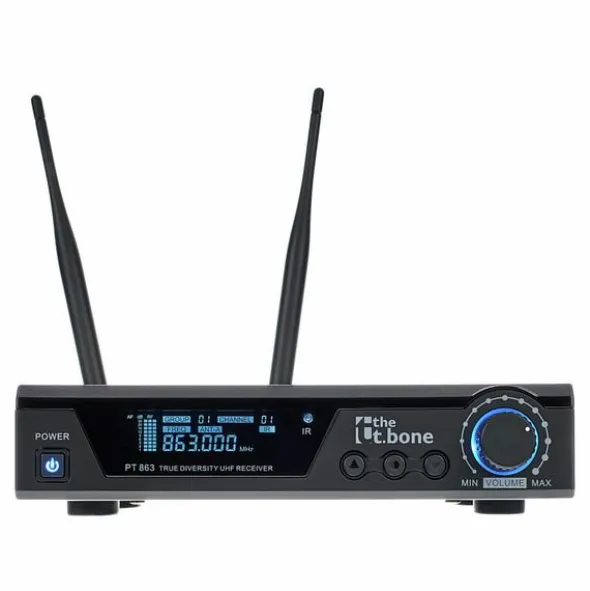

• LCD display

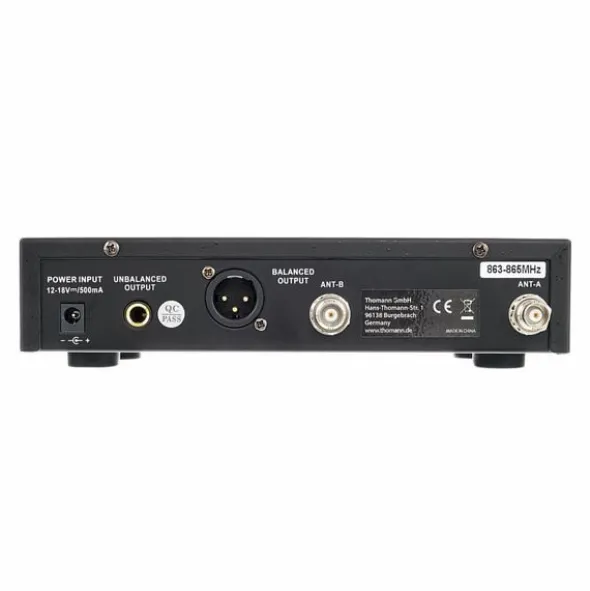

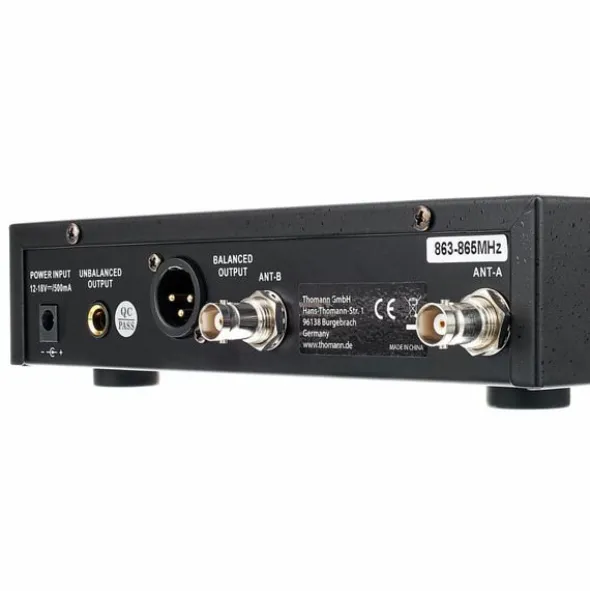

• Housing size: 9.5″, 1 U with 2 BNC antenna connectors

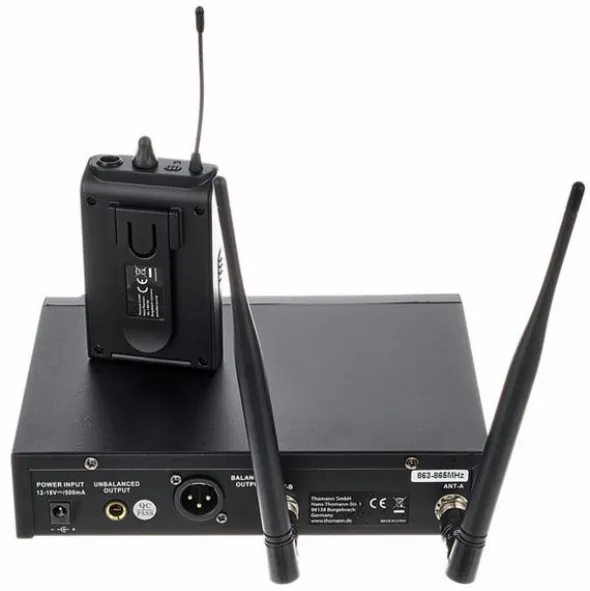

• XLR- and jack output
• Operates with 12 V, 0.5 DC power supply, centre positive

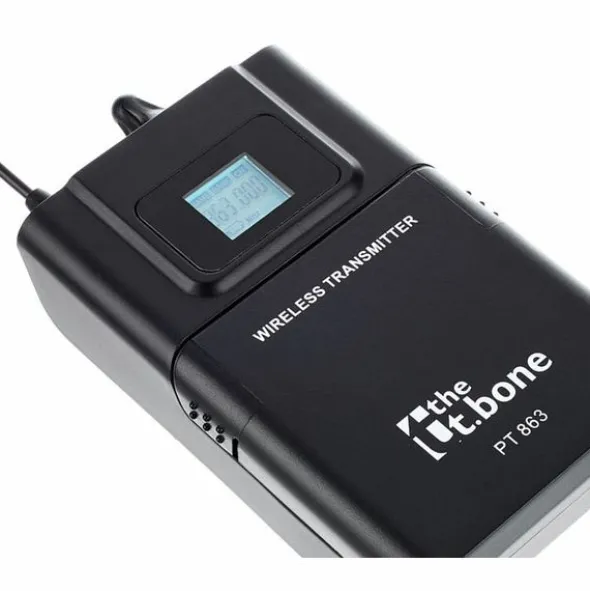

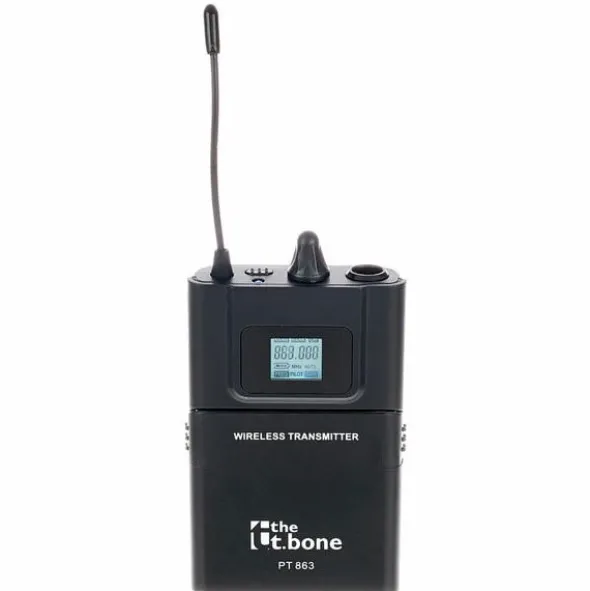

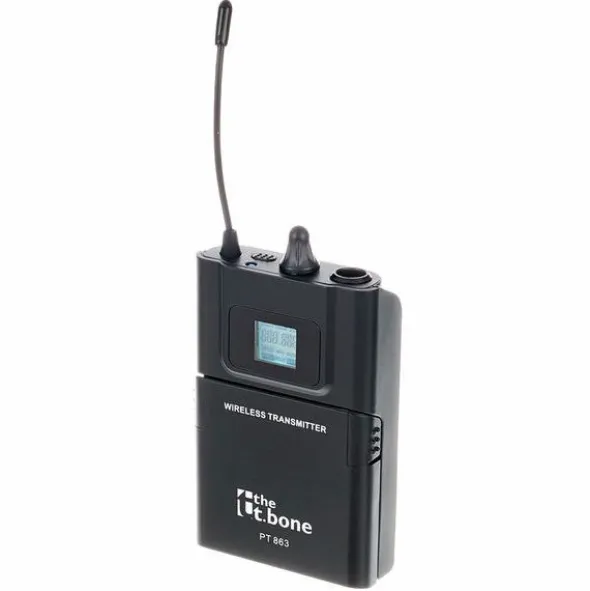

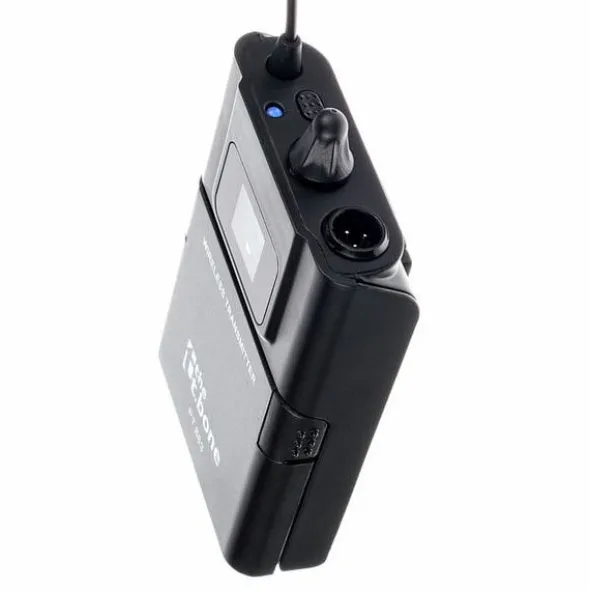

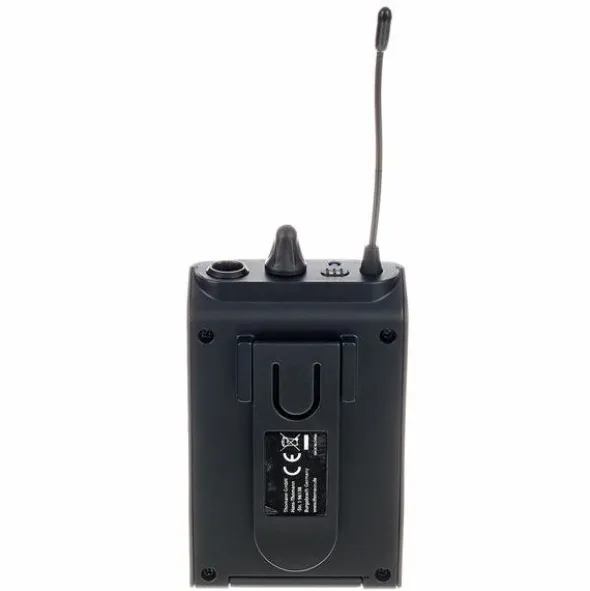

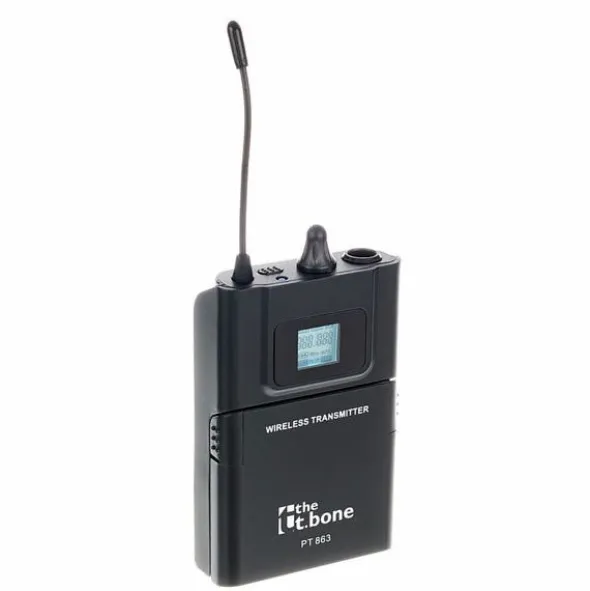

• Pocket transmitter housing: Plastic
• LCD display

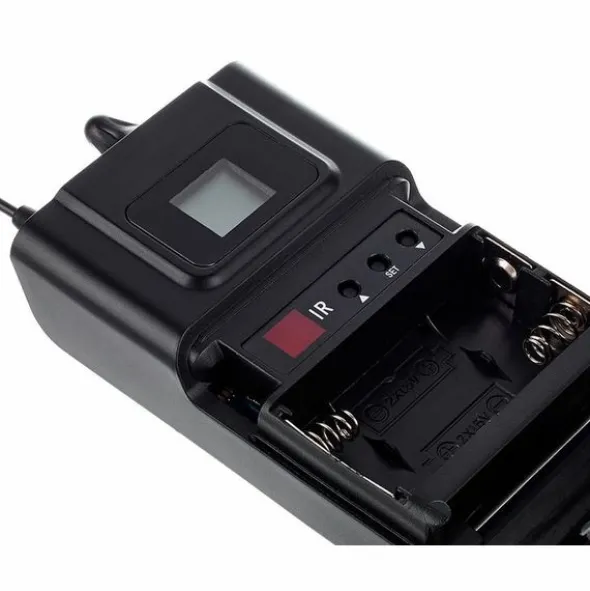

• Operates with 2 AA batteries or rechargeable batteries

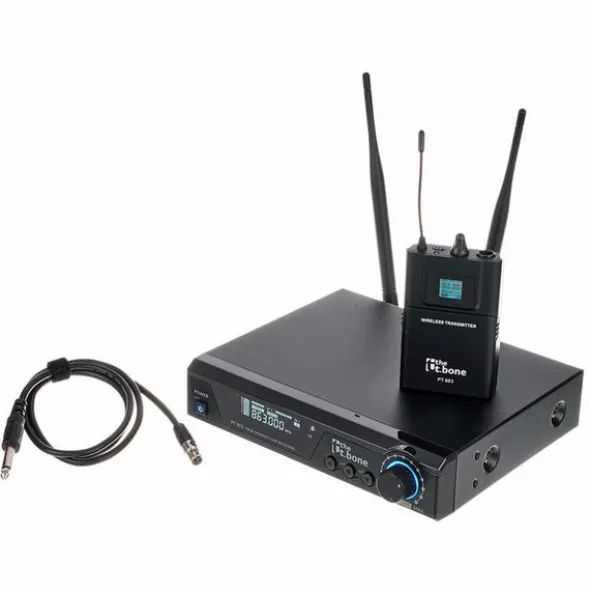

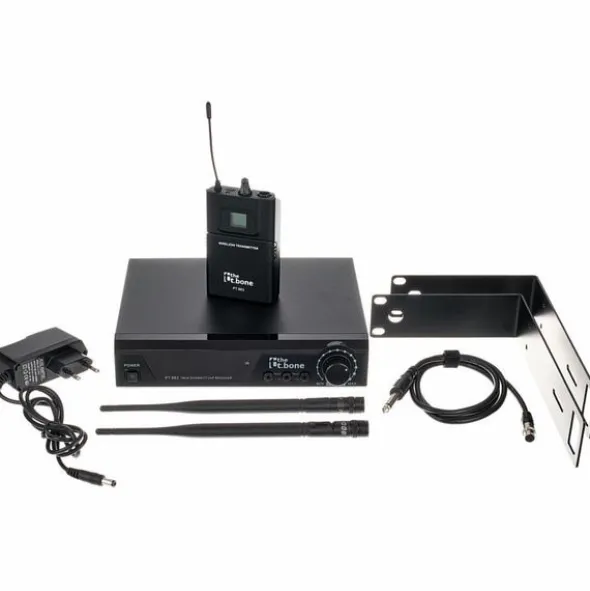

• Includes guitar cable, antennas, EU power supply and a rack kit for the installation of an 1 U receiver
• Suitable antenna converter: Art. 177448 (not included)

Note: a maximum of 2 systems can be operated simultaneously in this frequency band.

Disponível desdeJunho 2017

número de artigo405084

unidade de venda1peça(s)

Guitar Channels1

Transmission FormatAnalog

Frequency863 MHz – 865 MHz

Transmitter TypePocket Transmitter

Receiver TypeStationary

Mountable AntennaBNC

Charging SystemNo

Integrated BatteryNo

DanteNo

DiversityYes

Transmission Power in mW10 mW

Usable Frequencies16

Switching bandwidth in MHz2 MHz

Frequency DisplayYes

Automatic Frequency SearchYes

Battery Status DisplayYes

Transmitter battery poweredNo

OutputXLR

Receiver Width in mm210 mm

Receiver Height in mm44 mm

Receiver Depth in mm170 mm

RackkitYes

Receiver Weight in kg0,8 kg
