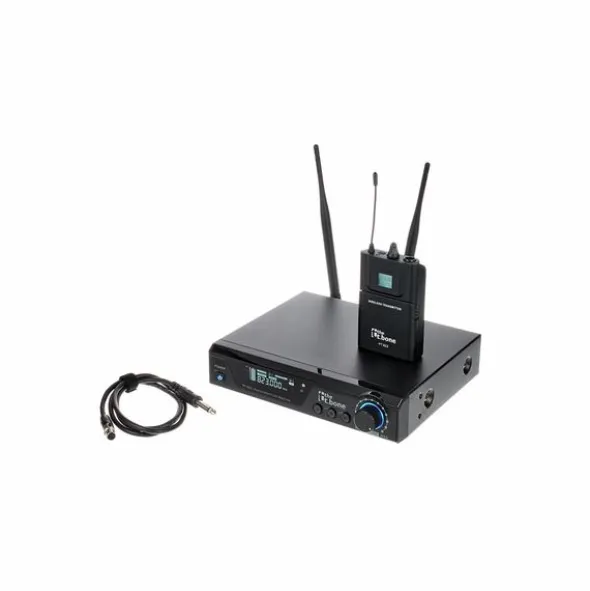

the t.bone freeU PT 823 B-Stock

UHF Wireless System

• Includes a pocket transmitter and guitar cable for applications with instruments
• Frequency band: 823-832 MHz
• Frequency response: 50 – 16,000 Hz
• 10 Preprogrammed frequency groups with 10 available channels each
• Auto squelch
• Frequency scan in the receiver
• Adjustable AF output
• Transmission power: 10 mW
• Infrared transmission of the settings from the receiver to the transmitter
• Pilot tone
• Increments of 80 kHz
• Modulation type: F3E
• LCD Display
• 9.5″ 1U housing with 2 x BNC antenna connectors
• XLR and jack output
• Operates with 12 V, 0.5 DC power supply, centre positive
• Pocket transmitter housing: Plastic
• LCD-Display
• Operates with 2 AA batteries or rechargeable batteries
• Includes guitar cable, antennas, EU power supply and a rack kit for the installation of an 1 U receiver
• Suitable antenna converter: Art. 177448 (not included)

Note: a maximum of 4 systems can be operated simultaneously in this frequency band.

Disponível desdeJunho 2017

número de artigo418865

unidade de venda1peça(s)

Guitar Channels1

Transmission FormatAnalog

Frequency823 MHz – 832 MHz

Transmitter TypePocket Transmitter

Receiver TypeStationary

Mountable AntennaBNC

Charging SystemNo

Integrated BatteryNo

DanteNo

DiversityYes

Transmission Power in mW30 mW

Usable Frequencies100

Switching bandwidth in MHz9 MHz

Frequency DisplayYes

Automatic Frequency SearchYes

Battery Status DisplayYes

Transmitter battery poweredNo

OutputXLR

Receiver Width in mm210 mm

Receiver Height in mm44 mm

Receiver Depth in mm170 mm

RackkitYes

Receiver Weight in kg0,8 kg
