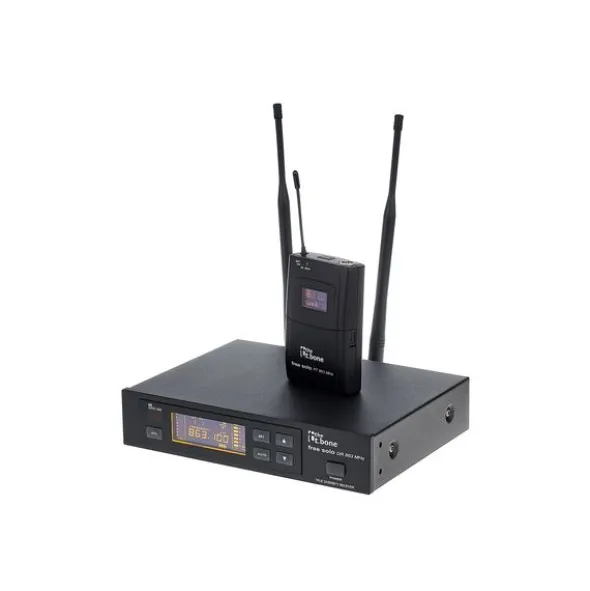

the t.bone free solo PT 863 MHz B-Stock

Guitar/Bass Wireless System

• UHF Radio system with pocket transmitter
• 1 Pre-programmed frequency group with 16 available channels
• 1 User channel
• Adjustable squelch with threshold display on the receiver
• Frequency scan in receiver
• Adjustable AF out
• Infrared control from receiver to transmitter
• Pilot tone
• 25 kHz Raster
• 9.5″ 1 U housing with 2x BNC output for antennas
• XLR and jack output
• Operation with 12V 0.5 A DC power supply (+ internal)
• Pocket transmitter in plastic casing
• 3-pin TQG connection (male)
• LCD display
• Operation with 2 AA batteries or rechargeable batteries (not included)
• Frequency band: 863 – 865 MHz
• Includes guitar cable, plastic case and rack mount
• Optional antenna converter: Art.177448 (not included)

Disponível desdeFevereiro 2013

número de artigo313715

unidade de venda1peça(s)

Guitar Channels1

Transmission FormatAnalog

Frequency863 MHz – 865 MHz

Transmitter TypePocket Transmitter

Receiver TypeStationary

Mountable AntennaBNC

Charging SystemNo

Integrated BatteryNo

DanteNo

DiversityYes

Transmission Power in mW10 mW

Usable Frequencies16

Switching bandwidth in MHz3 MHz

Frequency DisplayYes

Automatic Frequency SearchYes

Battery Status DisplayYes

Transmitter battery poweredNo

OutputXLR

Receiver Width in mm212 mm

Receiver Height in mm44 mm

Receiver Depth in mm160 mm

RackkitYes

Receiver Weight in kg0,9 kg
