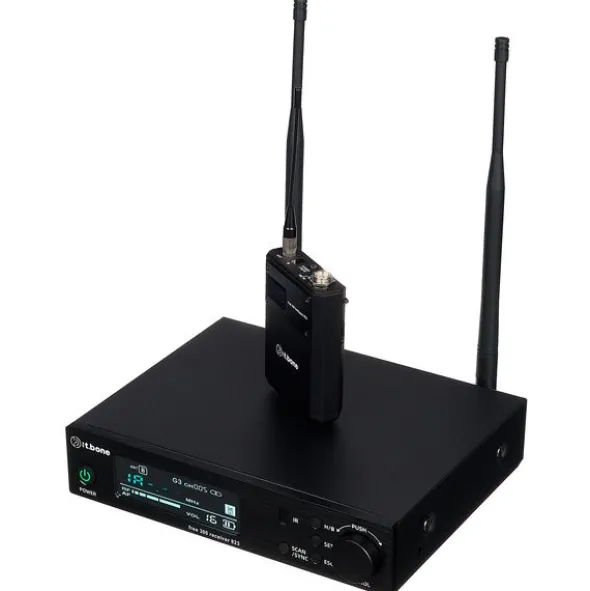

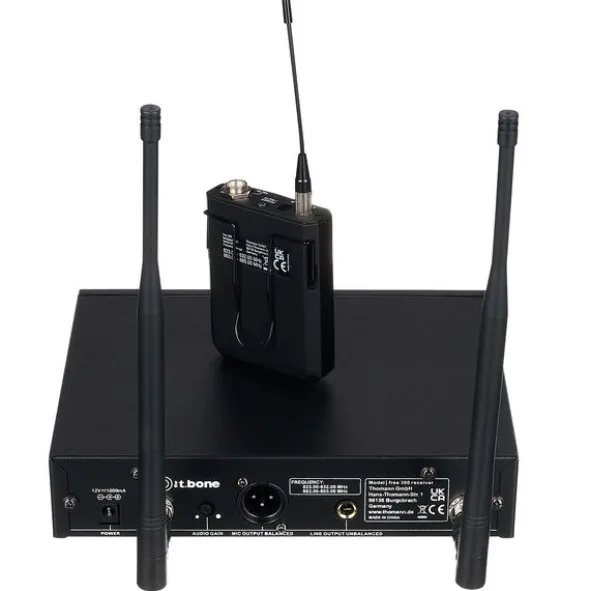

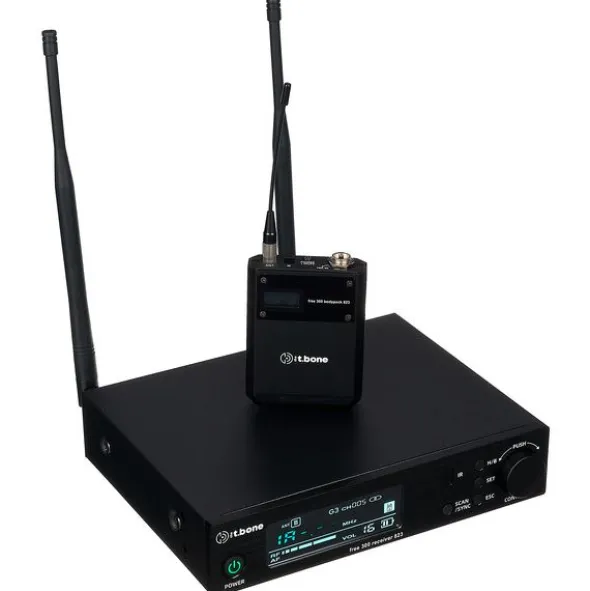

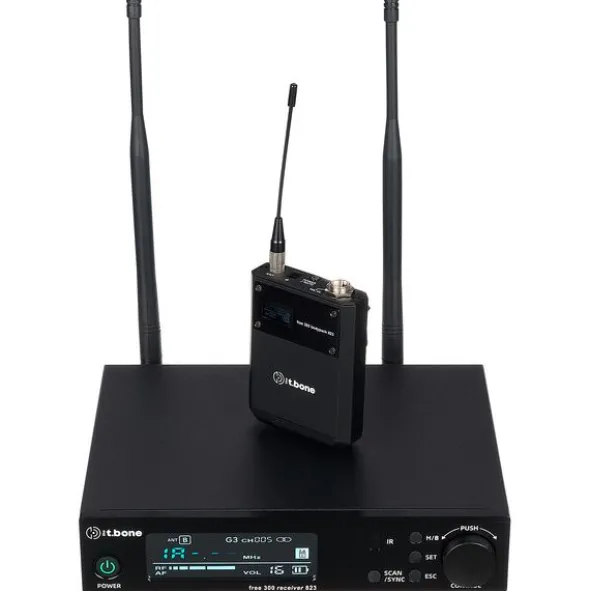

the t.bone free 300 PT 823

Wireless System with Pocket Transmitter

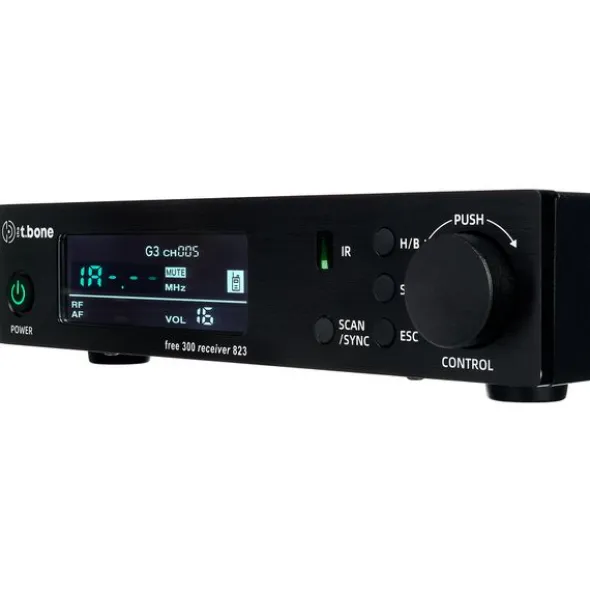

Receiver:

• Frequency band: 823–832 / 863–865 MHz
• 3 pre-programmed frequency groups, each with 10 channels
• 6 systems can be operated in parallel

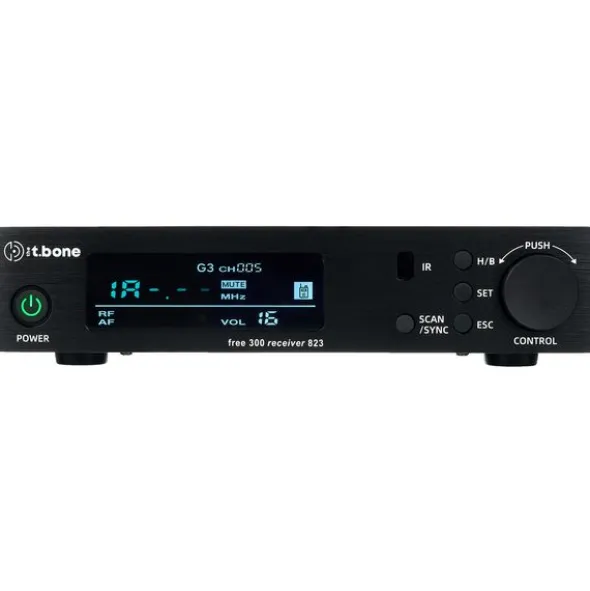

• LCD display: Frequency group selection
• Battery indicator
• AF / RF signal strength
• The selected frequency and volume can be switched between the handheld transmitter and the pocket transmitter (the two channels cannot be used simultaneously)
• Infrared transmission of settings from receiver to transmitter
• Adjustable gain: 0-25 dB
• Range: 100 m (line-of-sight)

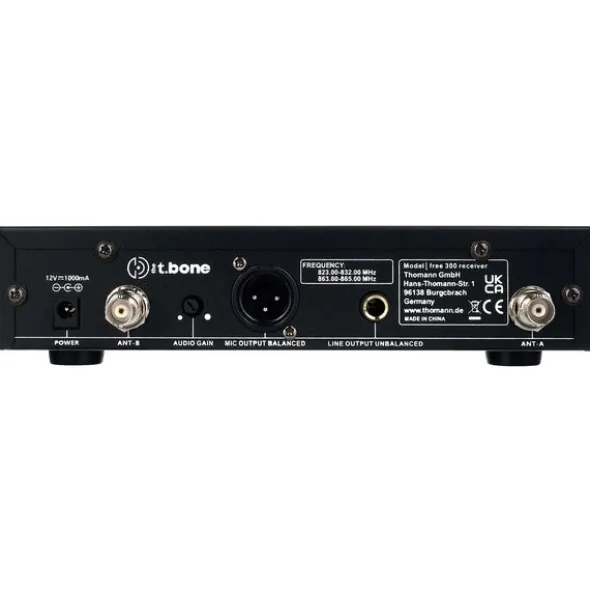

• Connections: XLR (balanced), 6.5 mm jack (unbalanced)
• 2 BNC antennas for Diversity
• Operates with a 12 V 1 A DC power supply
• Dimensions: (W x H x D) 210 x 45 x 193 mm
• Weight: 0.95 kg

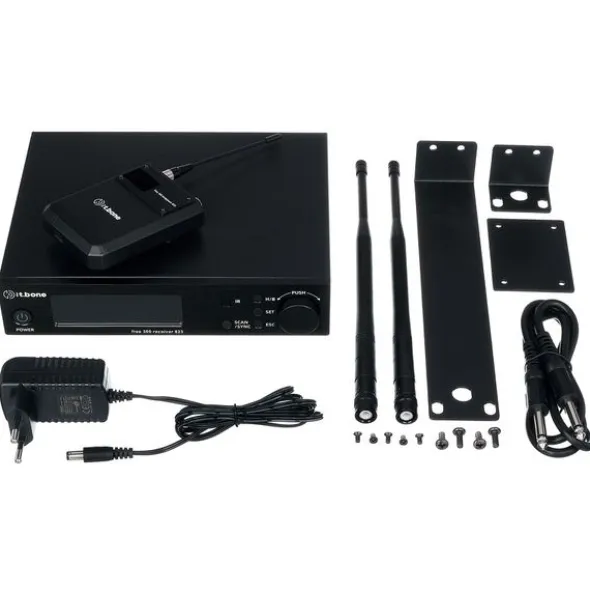

• Includes rack mount

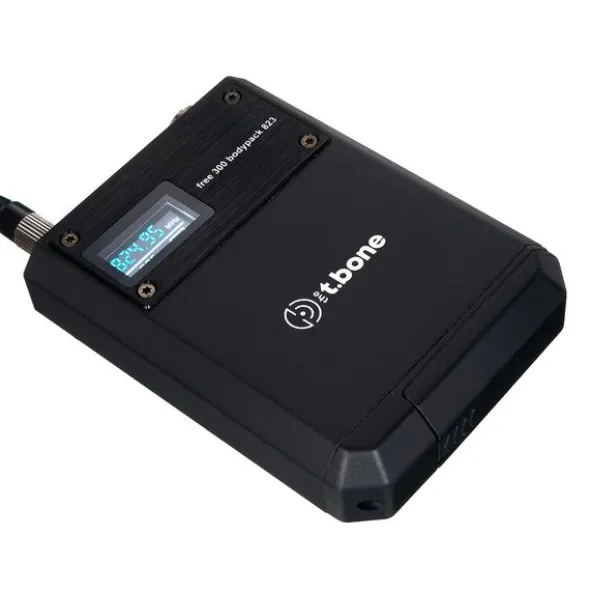

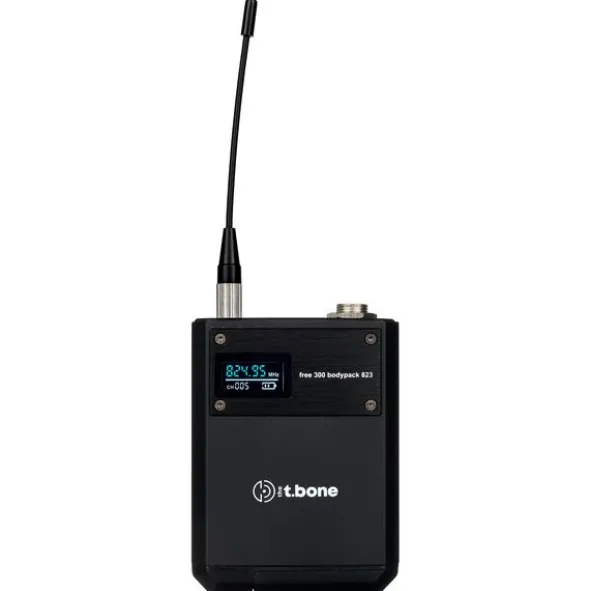

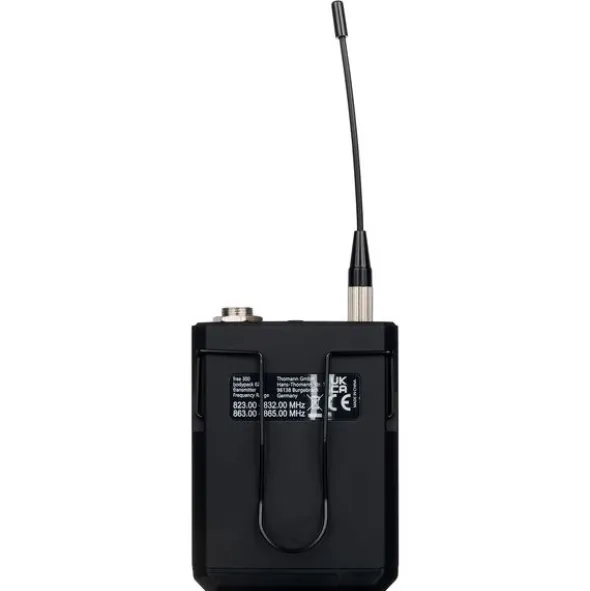

Pocket transmitter:

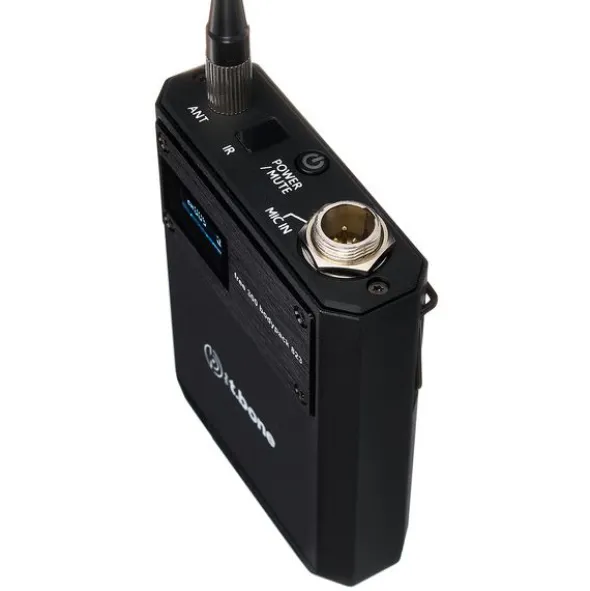

• 3-pin TQG connector
• Frequency band: 821–832 / 863–865 MHz
• Battery life: approx. 8 hours (talk time), approx. 12 hours (standby)
• LCD display: Selected frequency, battery indicator
• Option to scan the receiver frequency

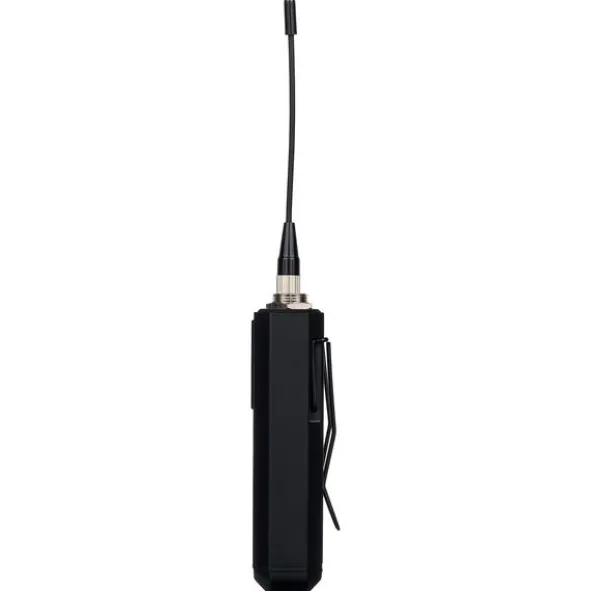

• Detachable antenna

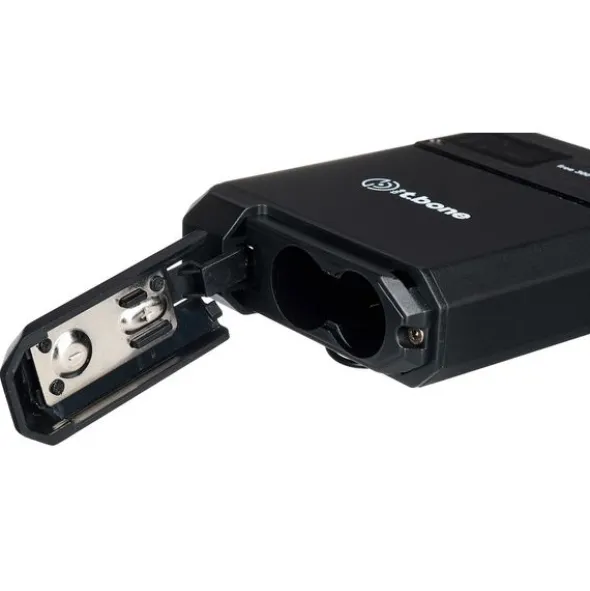

• Operates on 2 x 1.5 V AA batteries or rechargeable batteries (not included)
• Dimensions (W x D x H): 94 x 64 x 34 mm

Disponível desdeJunho 2026

número de artigo613185

unidade de venda1peça(s)

Guitar Channels1

Transmission FormatAnalog

Frequency823 MHz – 865 MHz

Transmitter TypePocket Transmitter

Receiver TypeStationary

Mountable AntennaBNC

Charging SystemNo

Integrated BatteryNo

DanteNo

Transmitting Technologyanalog

DiversityYes

ChannelsSingle

TypeBundle

Transmission typeUHF

Transmitter battery poweredNo

Transmission Power in mW10 mW

Receiver Width (mm)210 mm

Usable Frequencies30

Receiver Height (mm)45 mm

Switching bandwidth in MHz11 MHz

Receiver Depth (mm)193 mm

Frequency DisplayYes

Receiver Weight (kg)0,95 kg

Receiver with AccuNo

Automatic Frequency SearchYes

Battery Status DisplayYes

Battery MonitorYes

Transmitter Input3-Pol TQG

Receiver OutputXLR (6,3 mm unbal.)

OutputXLR

Receiver Width in mm210 mm

Receiver Height in mm45 mm

Receiver Depth in mm193 mm

RackkitYes

Receiver Weight in kg0,95 kg
