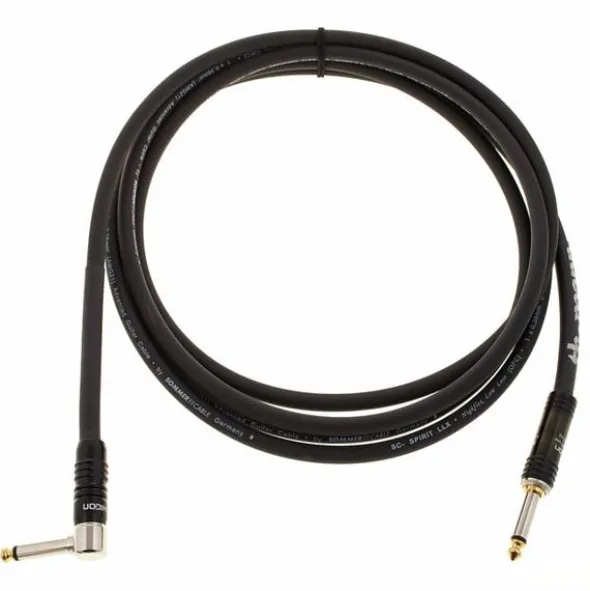

Sommer Cable Spirit LLX Instrument II 3.00

Instrument Cable

• Length: 3.0 m
• High End Low Loss instrument cables for stage and studio

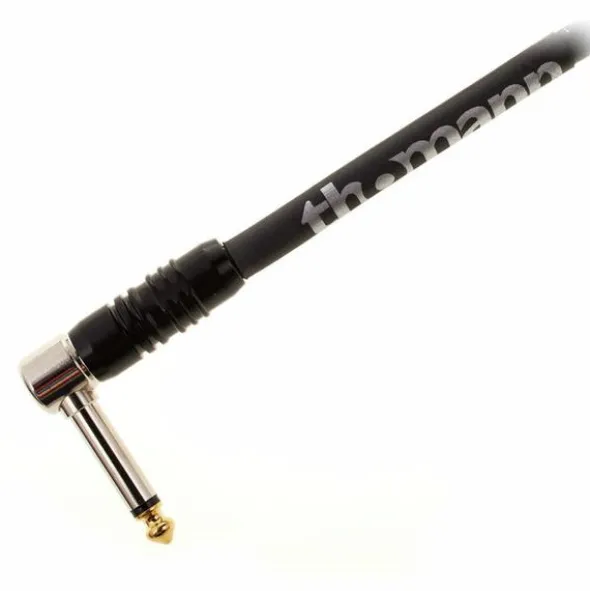

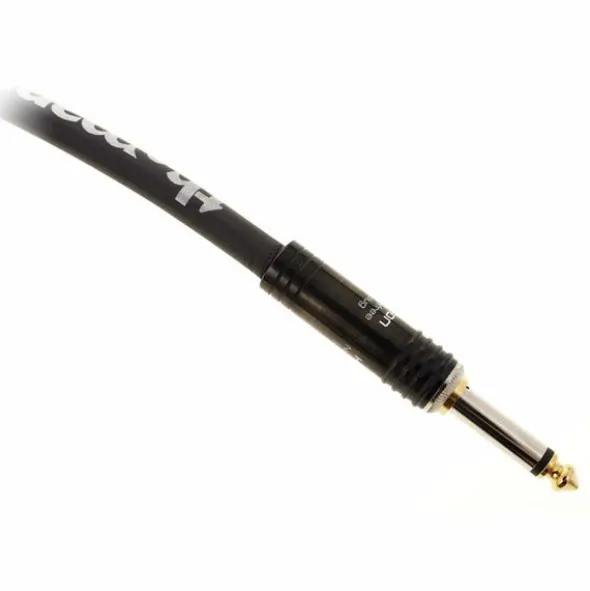

• Hicon HI-J63M14 Jack plug straight on Hicon HI-J63MA07 angled jack plug
• Extremely low capacity value
• Robust, twist-proof and easy to wind
• Low-loss, detailed and neutral transmission characteristics
• Double shielded by copper mesh and conductive carbon shield
• Colour: Black/transparent

Technical data:

• Composition: LI2Y (LS) CY1 x 0.38 mm²
• Sheath diameter: 7.5 mm
• AWG: 21
• Inner conductor: 1 x 0.70 mm²
• Copper strands per conductor: 19
• Insulation: Foam/Skin PVC
• Shielding: Copper mesh tinned + Semiconductor
• Covering opt: 100%
• Temperature range: Min -30° C /max. +70° C
• Thermal load per m: 0.26 kWh
• Weight per 1m: 62.2 g
• Conductor capacity/shield at 1 m: 52 pF
• Conductor resistance at 1 km: 48 Ohm
• Insulator resistance at 1 km: > 1 GΩ
