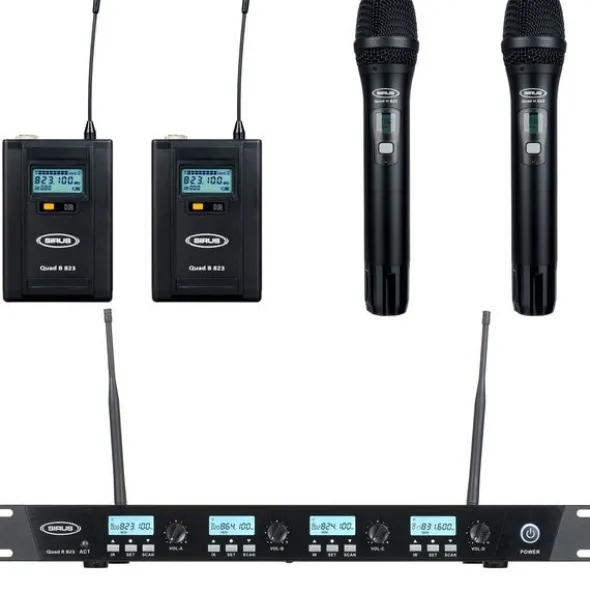

Sirus Quad R + 2H + 2B 823 Bundle

Bundle offer comprising

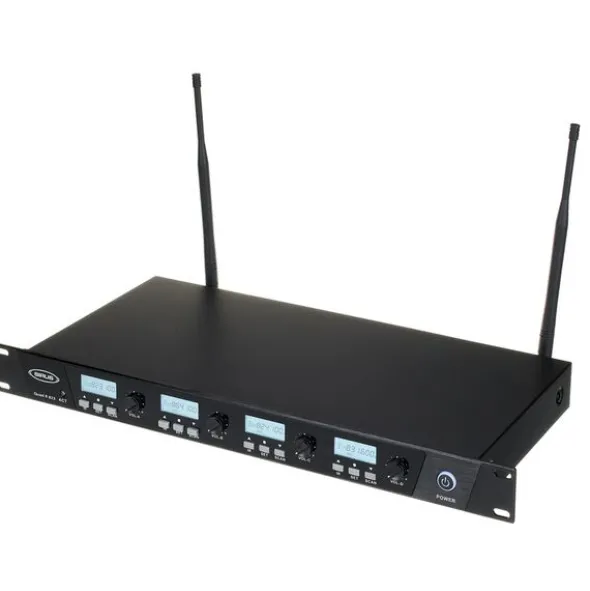

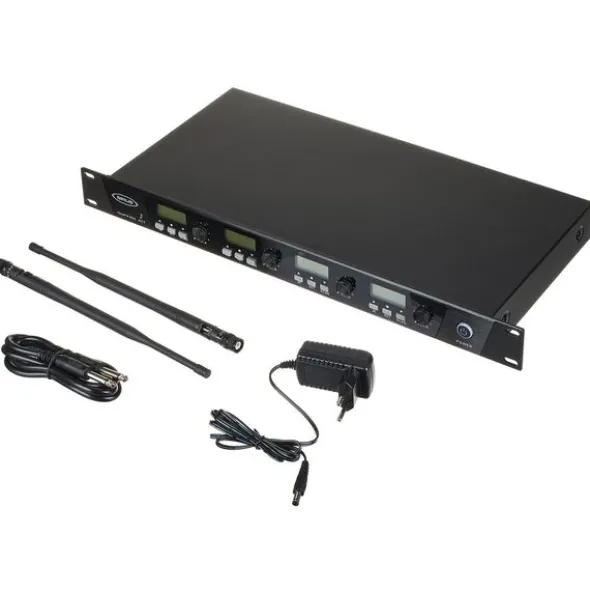

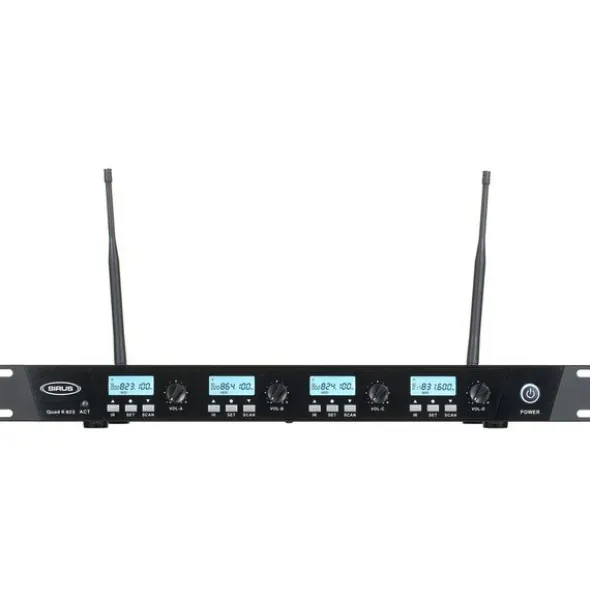

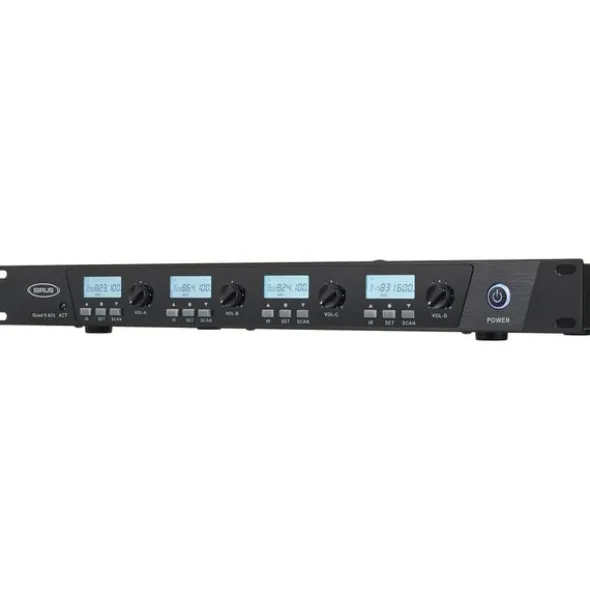

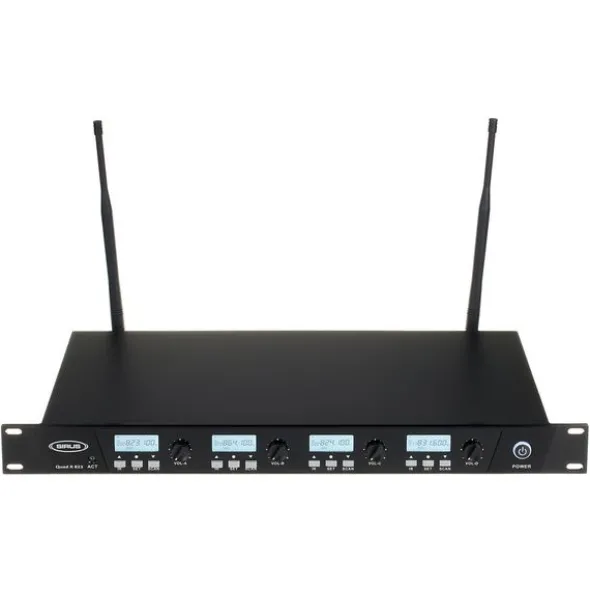

Sirus Quad R 823 MKII

4-Channel UHF Radio Receiver

• Frequency scan
• Volume control
• Auto Squelch
• Battery indicator and infrared transmission of settings from receiver to transmitter per channel

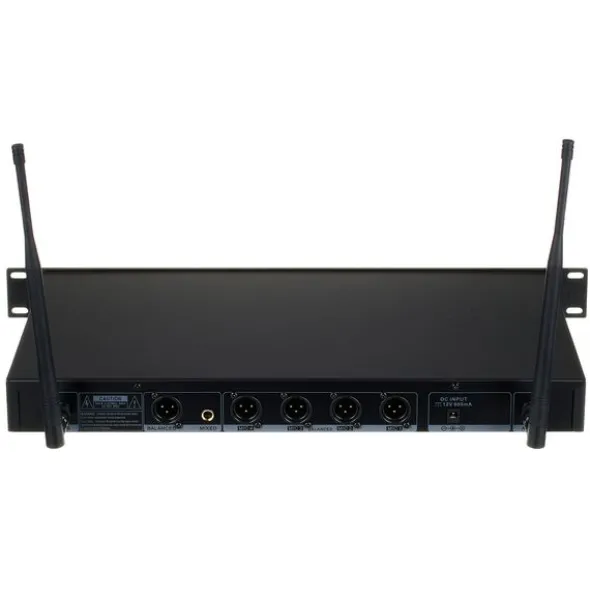

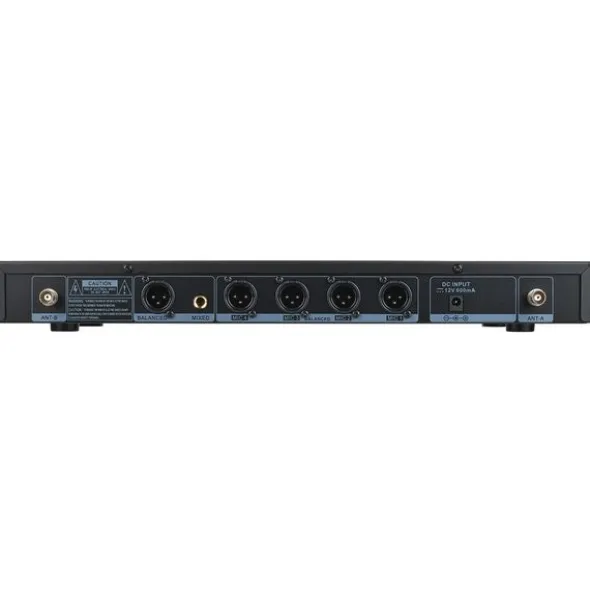

• Outputs: XLR male per channel, plus 1x XLR / 6.3mm jack sum output
• Frequency band: 823-832 & 863-865 MHz
• Frequency range: 40 – 18,000 Hz
• Total harmonic distortion: <0.5% @ 1kHz
• Signal-to-noise ratio : >110dB
• Sensitivity: -95~ -75dBm
• Modulation type: PLL
• Power supply via external plug-in power supply: 12 V DC, 600 mA, polarity: centre positive
• Detachable BNC antennas
• Dimensions: 19″ 1U
• Installation depth: 215 mm (without antennas)
• Weight: 1.95 kg

suitable accessories (not included)

• Handheld transmitter: art. 563361
• Pocket transmitter: art. 563359
• Conference table station: art. 563360

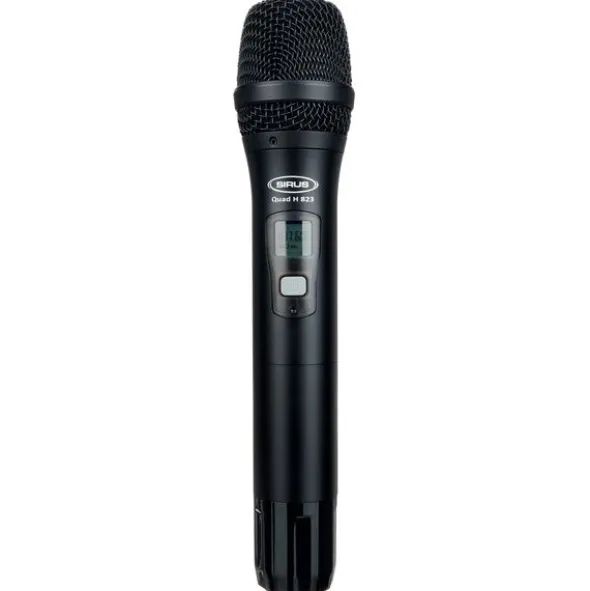

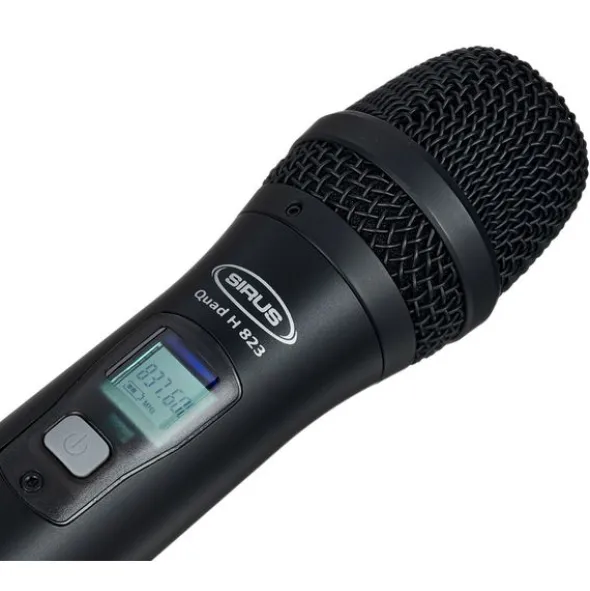

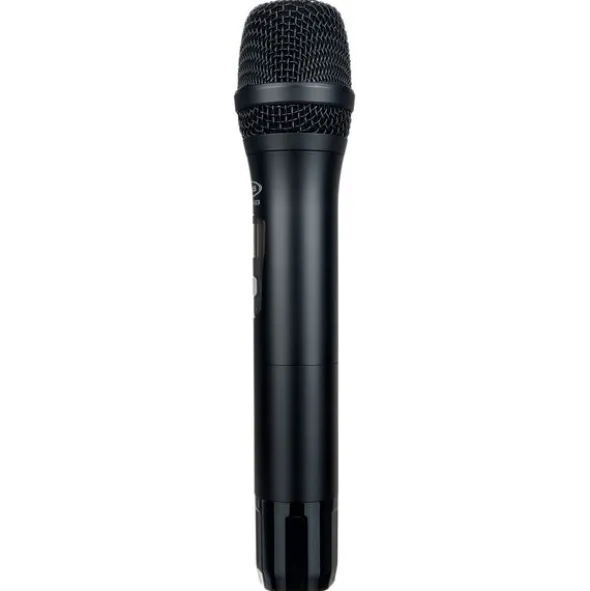

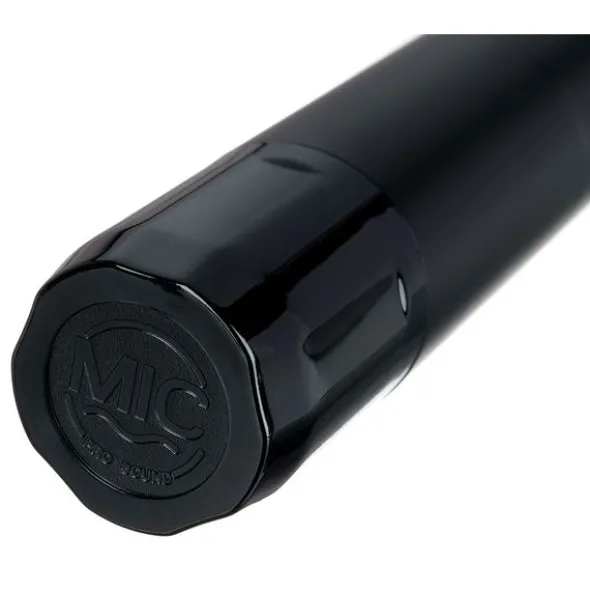

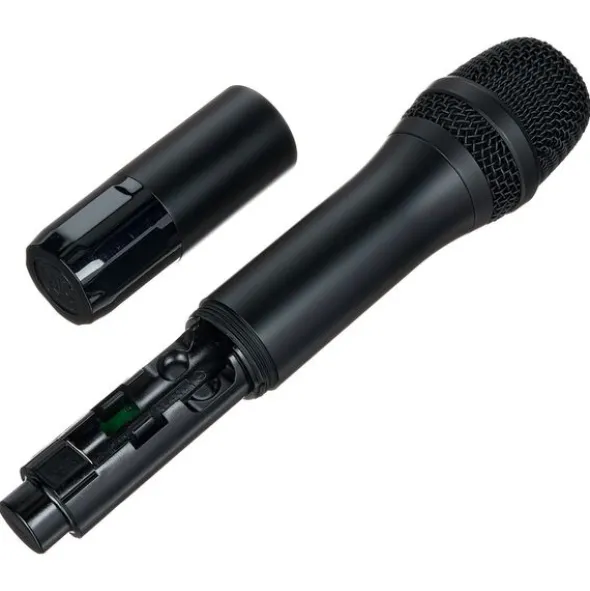

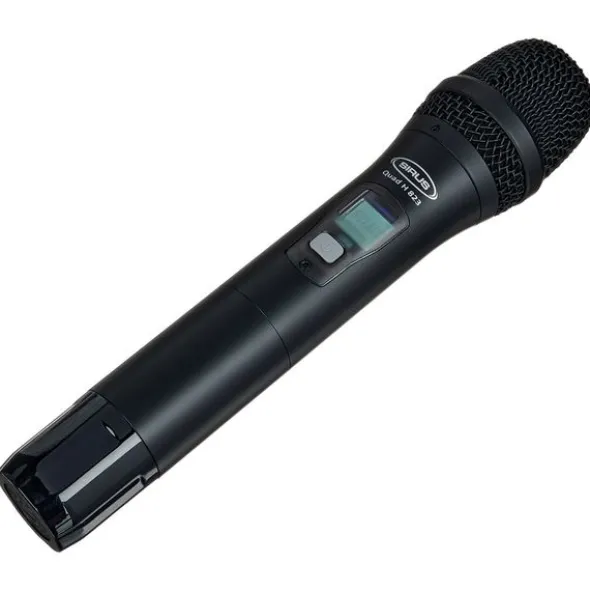

2x Sirus Quad H 823 MKII

Dynamic UHF Handheld Transmitter

• Compatible with the Sirus Quad R 823 MKII (Art.563362)
• Polar pattern: Cardioid
• Synchronisation with the receiver via Infra-Red
• Frequency band: 823 – 832 and 863 – 865 MHz
• Frequency range: 40 – 18,000 Hz
• Distortion factor: <0.5 % at 1 kHz
• Transmitter power: < 30 mW (switchable)
• Batteries: 2 x AA 1.5 V
• Battery life: 8 or 15 hours (depending on transmission power)
• Display: Frequency and battery status
• Dimensions (Ø x H): 51 x 245 cm
• Weight: 350 g
• Colour: Matt Black

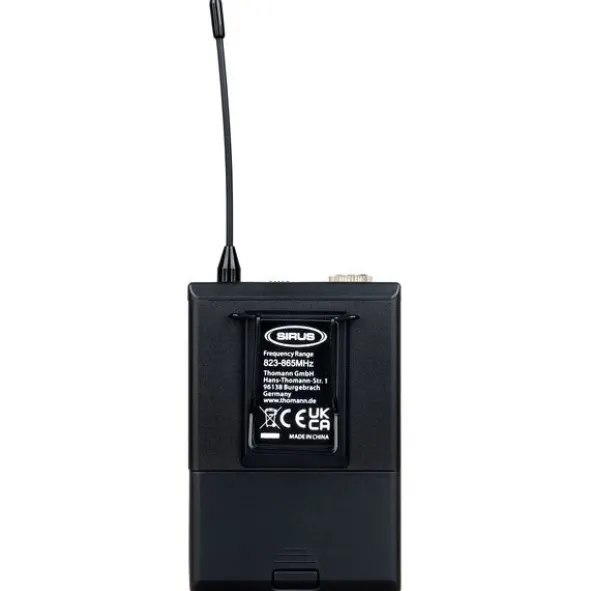

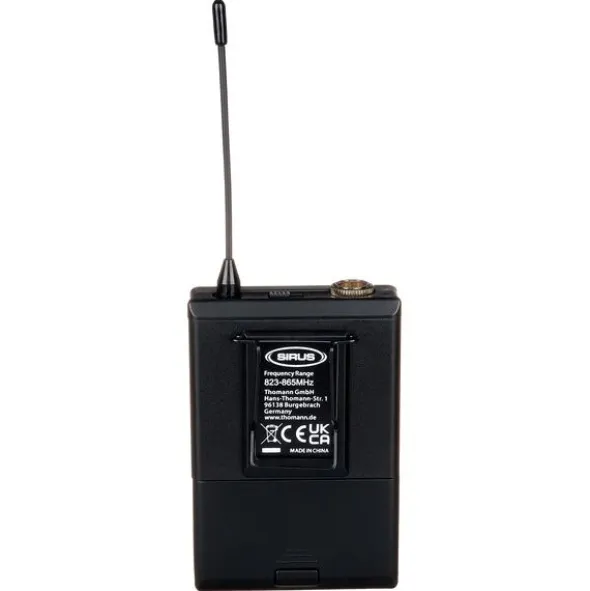

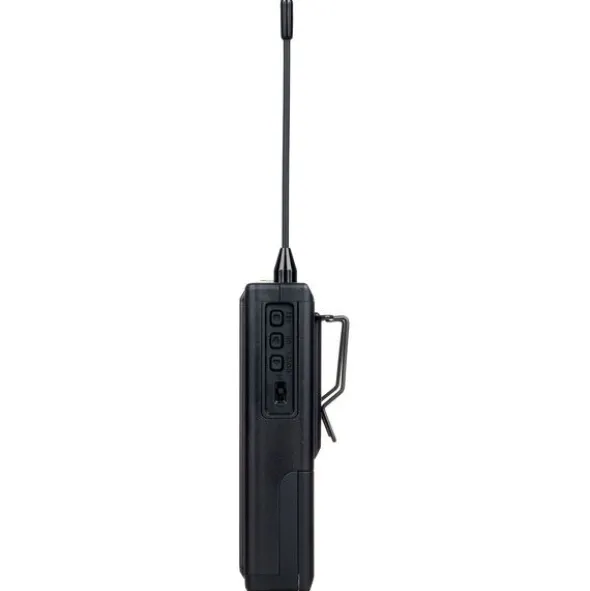

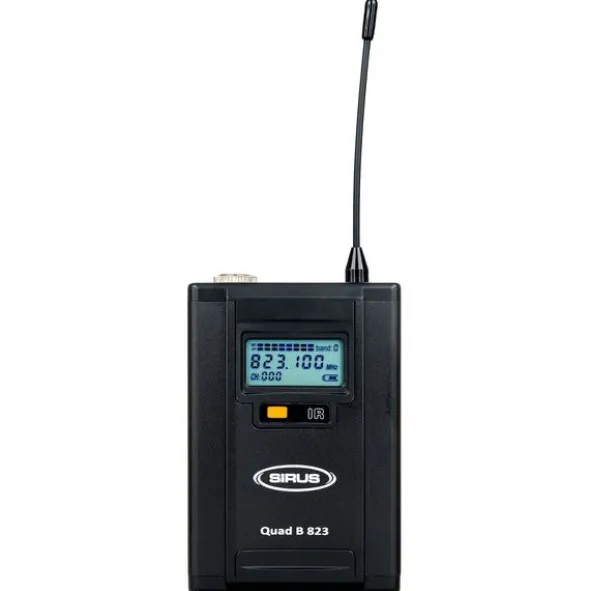

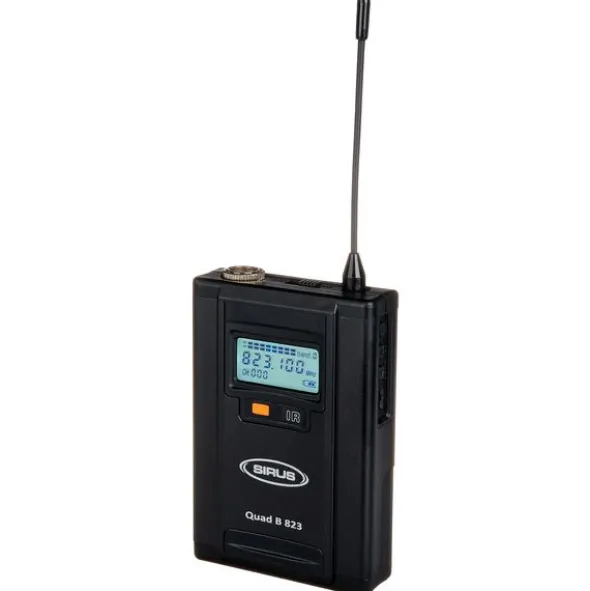

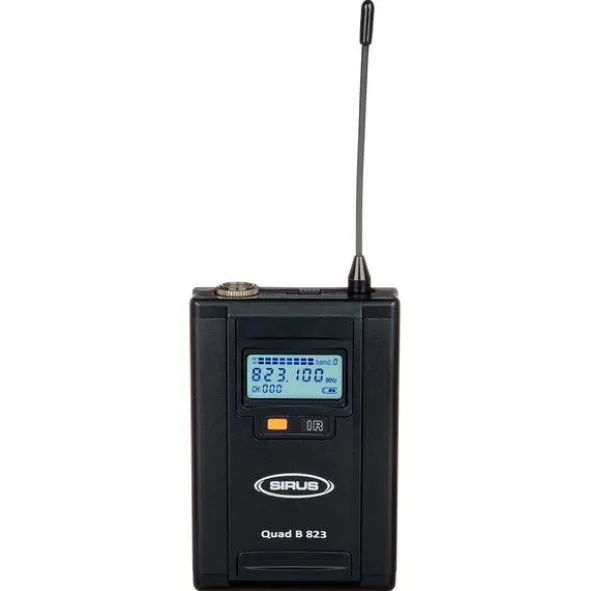

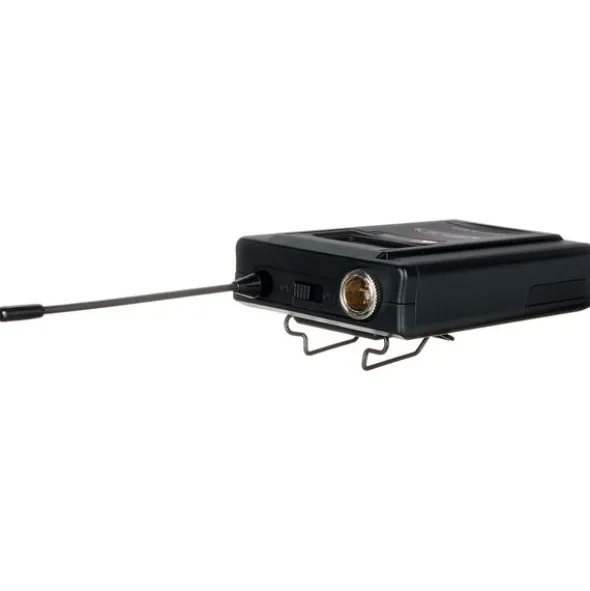

2x Sirus Quad B 823 MKII

Pocket Transmitter

• Compatible with the Sirus Quad R 823 MKII (Art. 563362)
• Connection: Mini-XLR 3-pin (TQG, compatible with the t.bone and AKG)
• Synchronisation with the receiver via Infra-Red
• Frequency band: 823 – 832 and 863 – 865 MHz
• Frequency range: 40 – 18,000 Hz
• Total harmonic distortion: <0.5% @ 1kHz
• Transmitter power: < 30 mW (switchable)
• Batteries: 2 x AA 1.5 V
• Battery life: 8 or 15 hours (depending on transmission power)
• Display: Frequency and battery status
• Detachable antenna: 85 mm
• Dimensions without antenna (H x W x D) 95 x 62 x 34 mm
• Weight: 100 g
• Colour: Matte Black

Disponível desdeOutubro 2020

número de artigo504473

unidade de venda1peça(s)

Transmission technologyanalog

Channels Handheld Transmitter2

Capsule TypeDynamic

Polar PatternCardioid

Receiver TypeStationary

Frequency823 MHz – 865 MHz

OutputXLR

Charging SystemNo

Integrated BatteryNo

DanteNo

Guitar Channels2

Transmission FormatAnalog

Transmitter TypePocket Transmitter

Transmission Power in mW30 mW

Receiver Width in mm412 mm

Receiver Height in mm44 mm

Usable Frequencies84

Switching bandwidth in MHz0,5 MHz

Receiver Depth in mm215 mm

Receiver Weight in kg1,95 kg

Frequency DisplayYes

Automatic Frequency SearchYes

Transmitting Power in mW30 mW

Mountable AntennaBNC

Selectable Frequencies84

Switching Bandwidth in MHz0,5 MHz

Battery Status DisplayYes

Frequency ScanYes

Transmitter battery poweredNo

Removable AntennaBNC

Battery Status MonitorYes

RackkitYes
