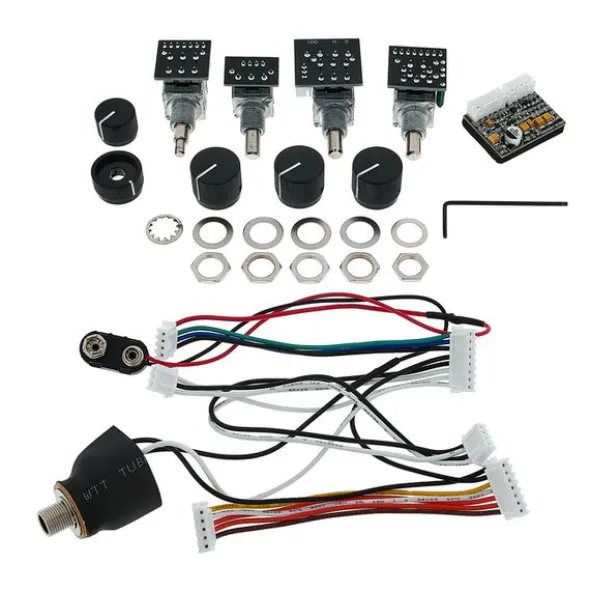

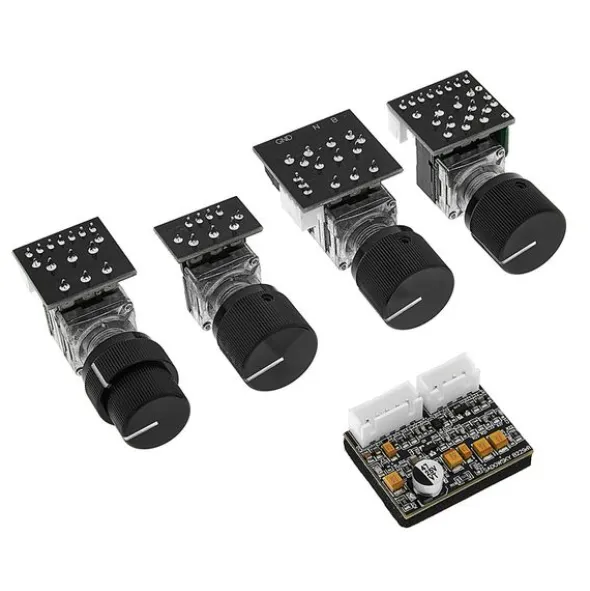

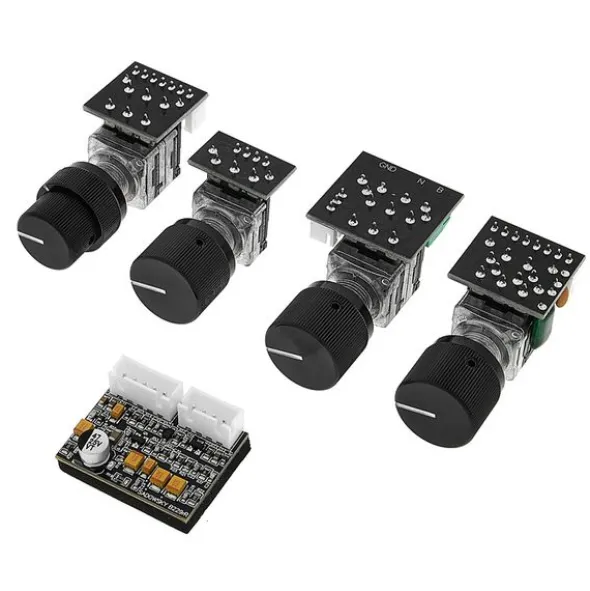

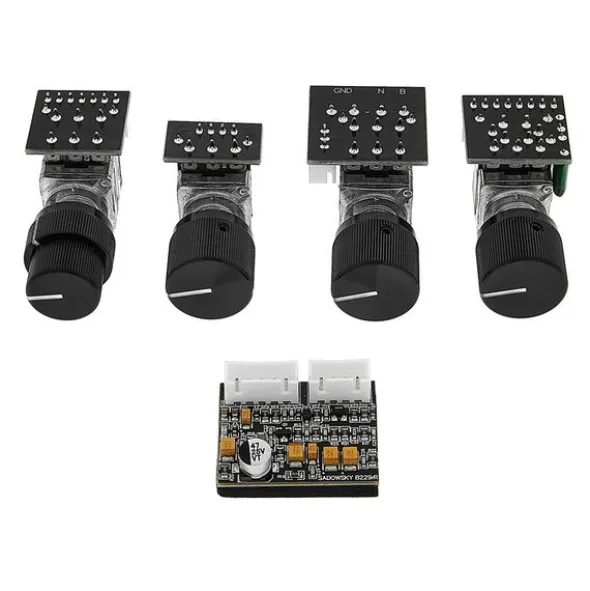

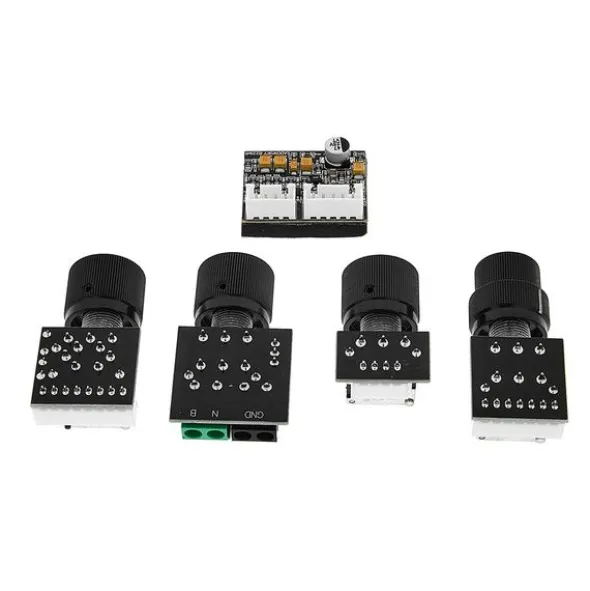

Sadowsky Onboard Bass Preamp F-Style

Pre-wired Onboard Bass Preamp for MetroExpress

• For electric basses with four-knob layout, side socket and battery compartment
• Active preamp for passive pickups
• Four-knob layout with control options for master volume / balance / vintage tone control (P/P) / treble and bass (stacked)
• Push/pull function on the VTC control for preamp bypass
• Longer cables between the potentiometers to ensure installation in basses other than Sadowsky basses

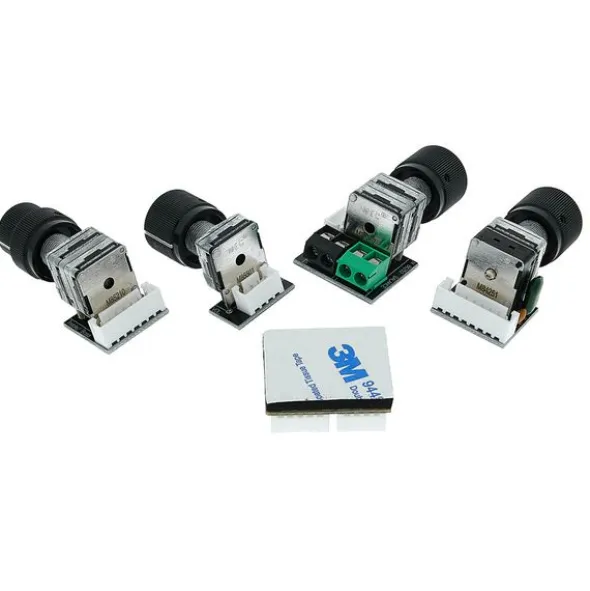

• Screw terminals on the balance potentiometer for solder-free installation of the pickups’ hot & ground cables
• Without control plate
• Frequency range: 5 – 50,000 Hz
• Bass control offers +18 dB boost at 40 Hz
• Treble control offers +18 dB boost at 4 kHz
• Total harmonic distortion (THD) 0.18% at 1 kHz
• Power supply with a 9V battery
• Current consumption 9 mA
• Up to 870 hours of battery life
• 1 MOhm input impedance
• Output impedance 1 kOhm

Note: When installing a Sadowsky onboard preamp in a MetroExpress bass without a control plate (Modern, Verdine White and M/J models), the holes in the body for the potentiometers must be enlarged. This is due to the fact that the factory-fitted potentiometers of the MetroExpress have a smaller diameter than the potentiometers of the Sadowsky Onboard Preamp
