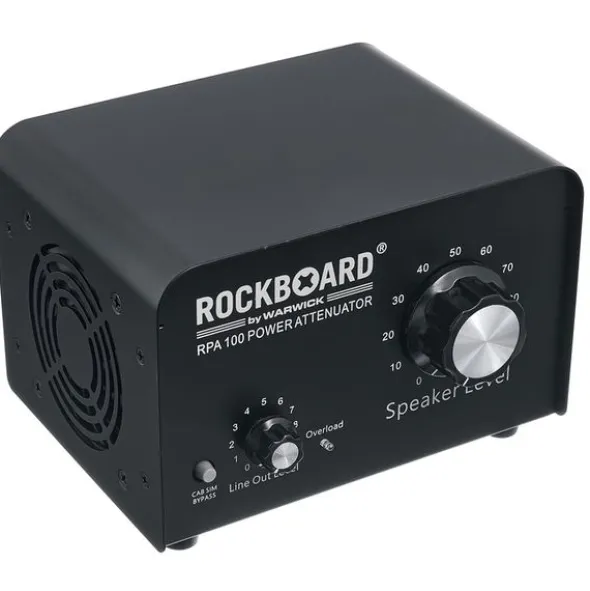

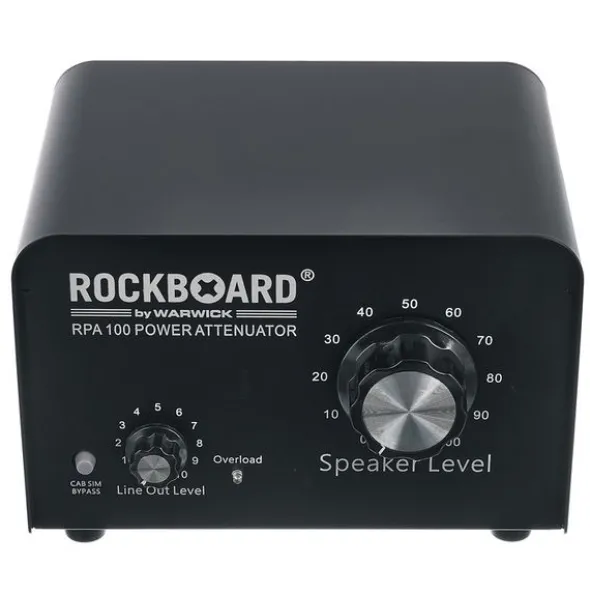

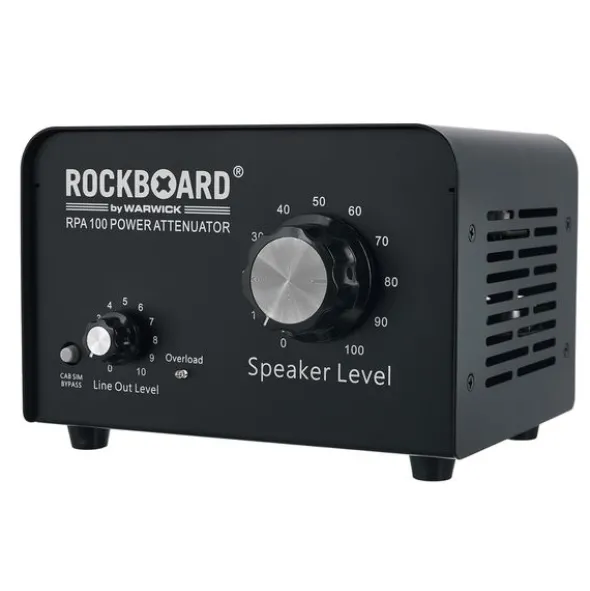

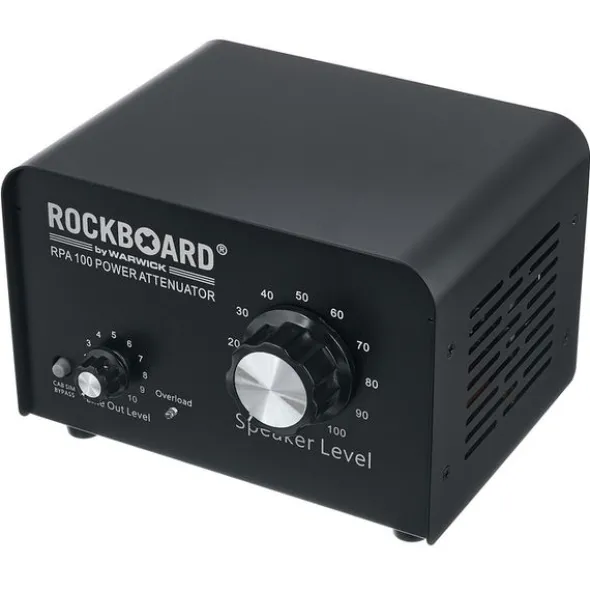

Rockboard RPA 100 Power Attenuator

Power Reducer

• Maximum output power of the amplifier 100 watts

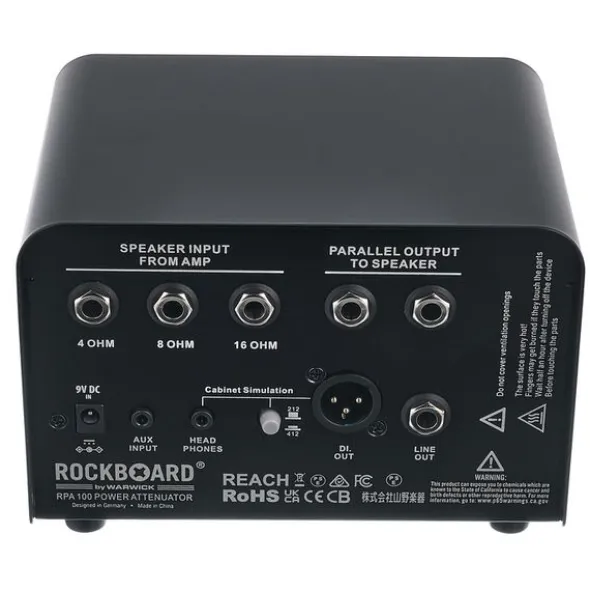

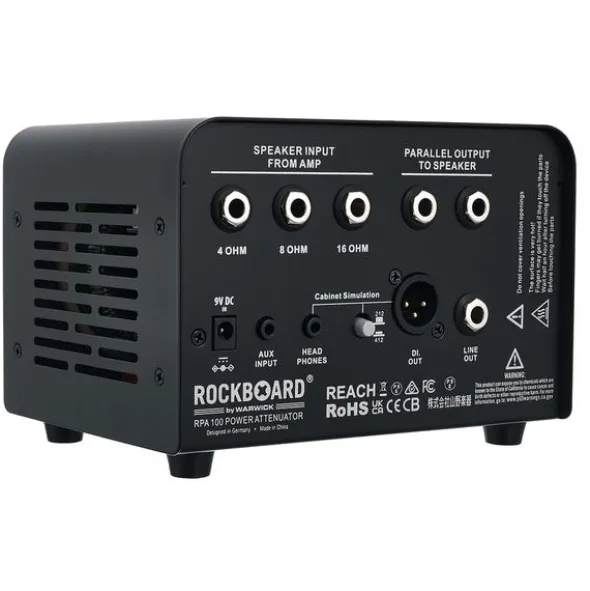

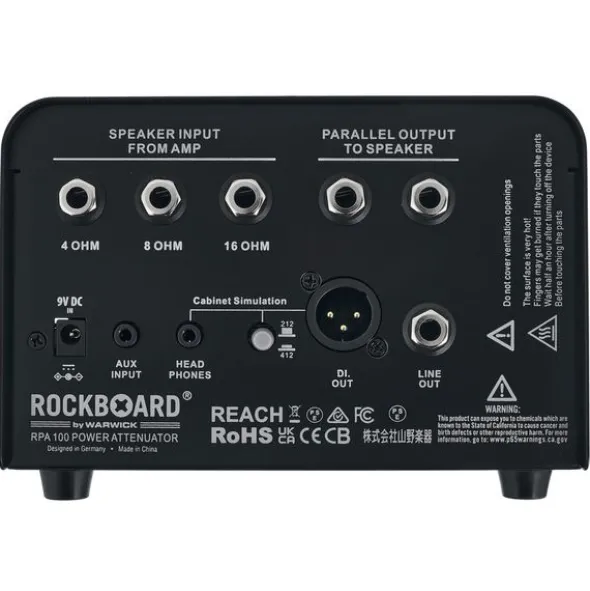

• Three separate inputs for 4, 8 or 16 ohms
• 1 x 3.5 mm Aux input
• 2 x 6.3 mm speaker outputs (parallel)
• 1 x 6.3 mm line level output
• 1x 3.5 mm headphone output
• 1 x XLR-DI output

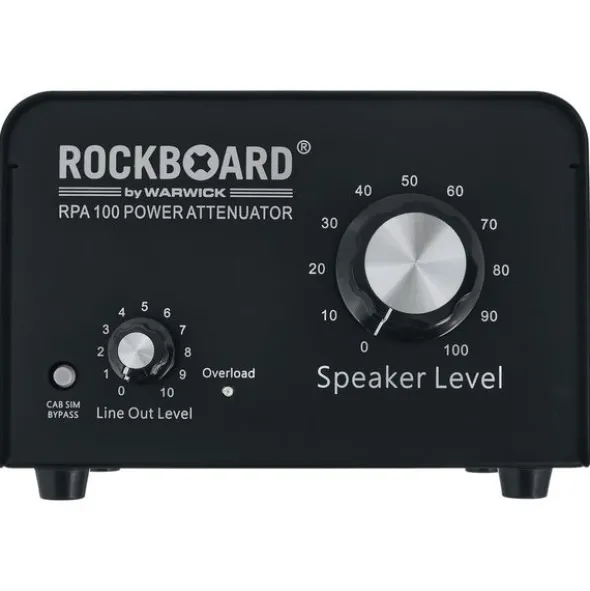

• 1 x Volume control on the speaker
• 1 x Level control for the line level output
• 1 x On/Off switch for loudspeaker simulation
• 1x switch for speaker simulation: 2x 12” or 4x 12”
• 1 x 9 VDC, 2.1 x 5.5 mm barrel connector, centre negative
• Input voltage for operation with headphones / DI / line outputs
• 1 x fan
• 1 x LED for overload indication
• Dimensions including feet and controls (L x W x H): 180 x 160 x 125 mm
• Weight: 1545 g

Note: Power supply is not included.
