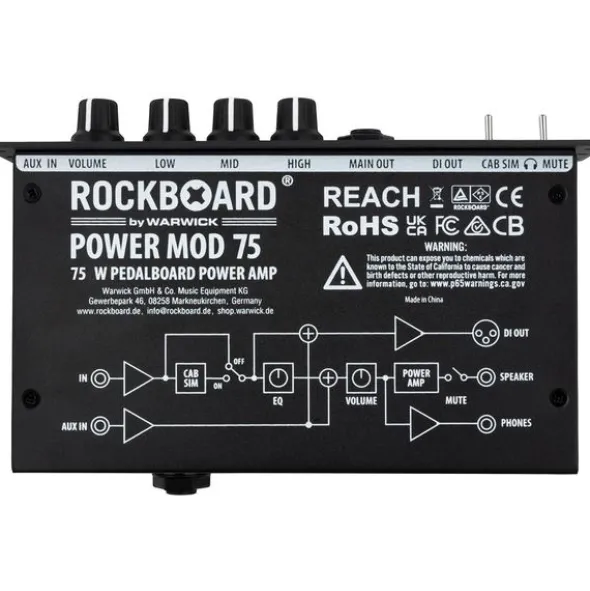

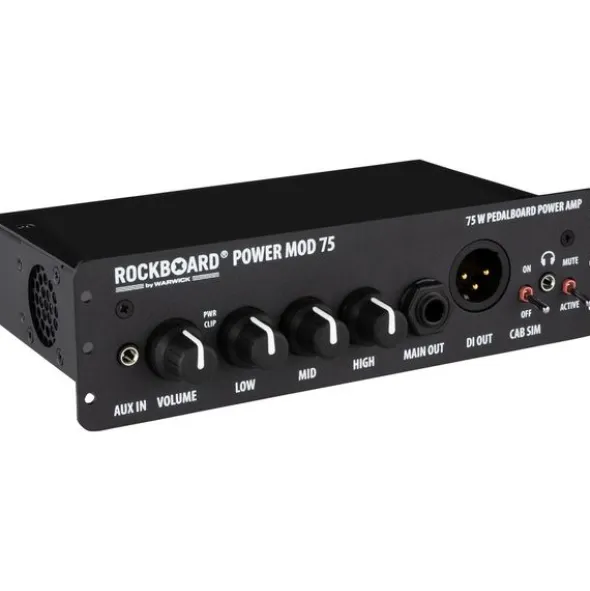

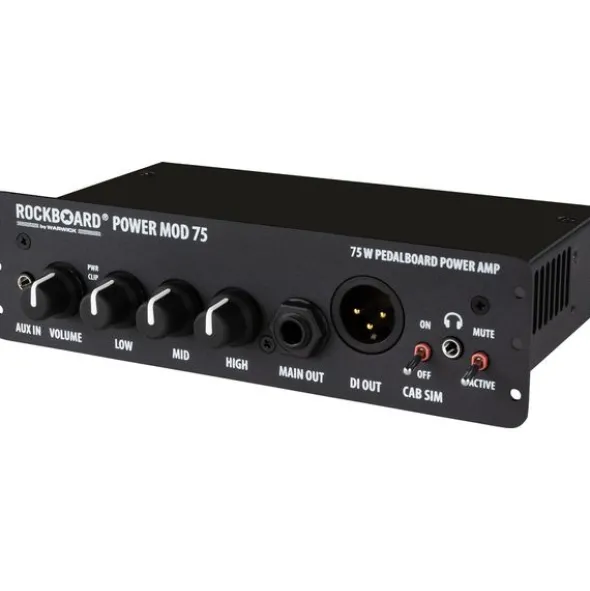

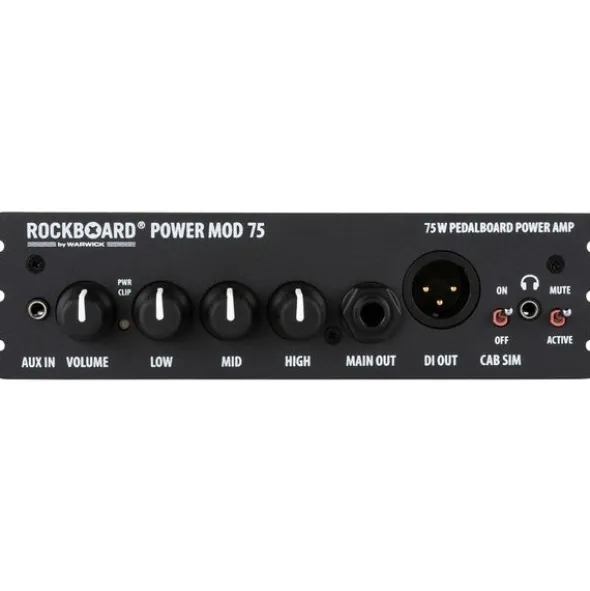

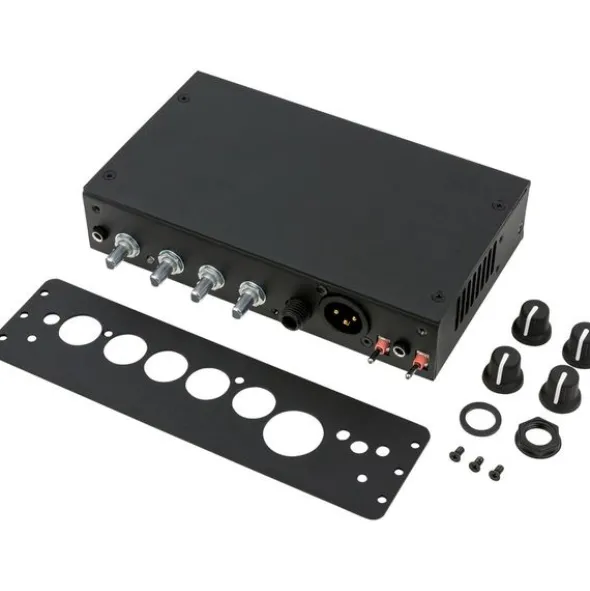

Rockboard Power MOD 75 Pedalboard

Amplifier for Pedalboards

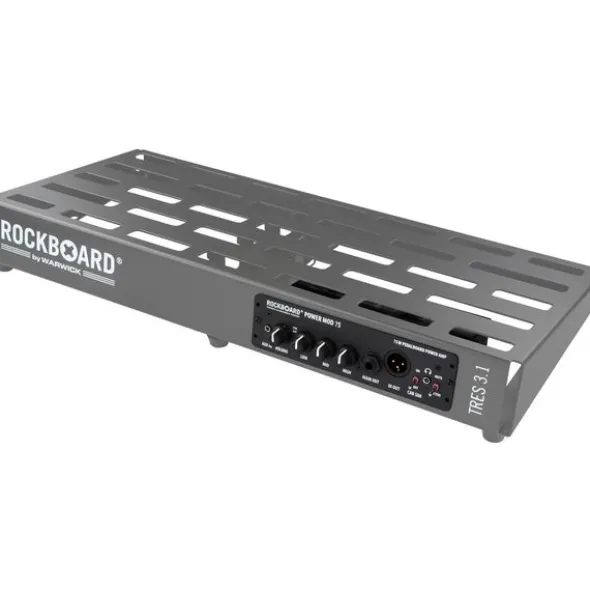

• The compact amplifier can be installed directly on all RockBoard pedalboards equipped with a MOD slot, as well as on third-party pedalboards
• Class D transistor circuit
• Power (@1% THD): 50 W into 4 ohms / 30 W into 8 ohms
• 3-Band EQ
• Controls for Volume, Low, Mid, High
• Cab-Sim switch
• Mute switch
• 6.35 mm speaker output
• 3.5 mm headphone output
• 3.5 mm AUX IN input for external audio signals
• Balanced XLR DI output

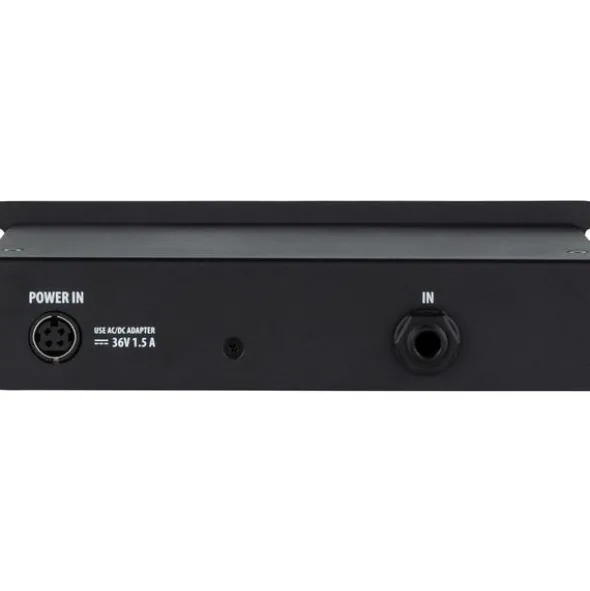

• Rear connection for included power supply unit
• Instrument input on the rear
• Output: 24 VDC, 2.25 A
• Dimensions (L x W x H): 175 x 116 x 47 mm
• Weight 0.84 kg (including power supply unit)
• Includes 220 – 240 VAC power supply unit
