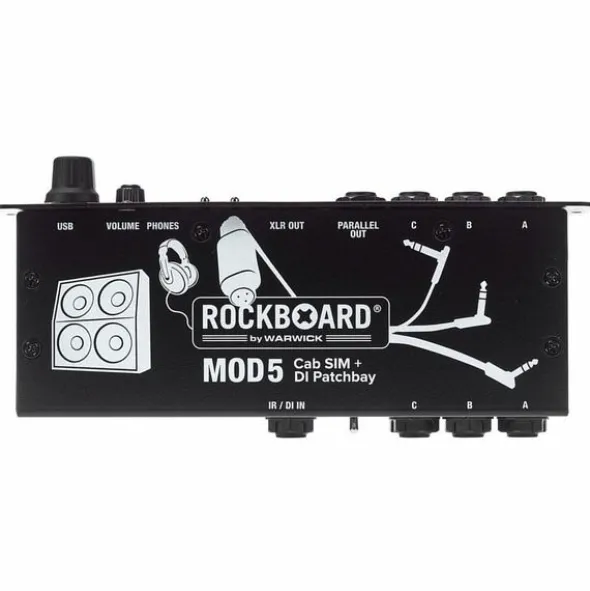

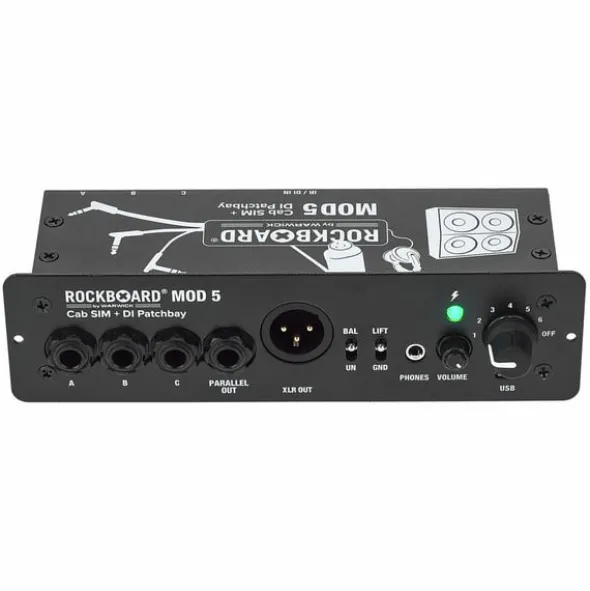

Rockboard MOD 5 – Cab SIM + DI Patchbay

Cabinet simulation & DI patch-bay

• IR-based speaker simulation
• 6 Integrated IRs selectable
• Support of additional custom IRs (maximum 1024 pts.)
• Integrated active DI box
• Headphone amplifier
• Suitable for MOD slots in RockBoard pedalboards
• Compatible with many other pedalboards
• Functions as a central access point to the effect setup
• Establishes clear cable routes to and from the pedalboard
• Removable front panel for mounting on or under pedalboards
• Selectable MONO/ STEREO input
• Selectable UN / BALANCED output
• Ground lift switch
• Headphone volume control

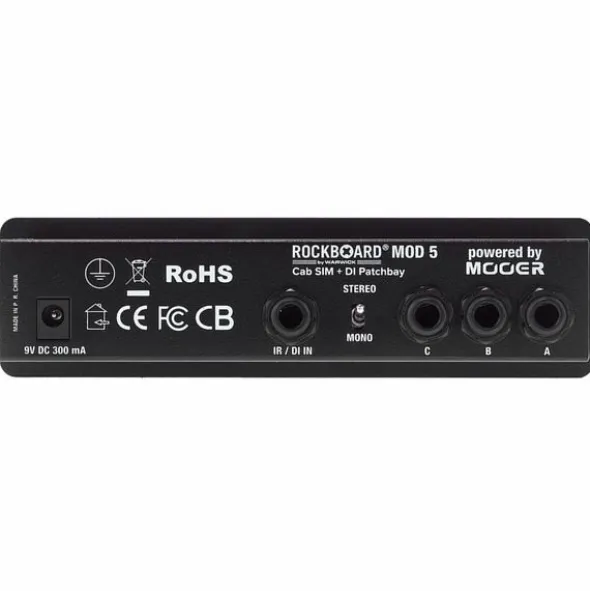

• Power supply via 9 V DC power supply (2.1 mm x 5.5 mm hollow plug, polarity (-) inside, not included)
• Current consumption: 300 mA
• Dimensions with front panel (W x D x H): 175 x 85 x 47 mm
• Dimensions without front panel (W x D x H): 160 x 85 x 33 mm
• Weight: 470 g
• Includes mounting screws, lock nuts and TX wrench

Note: Battery operation is not supported.

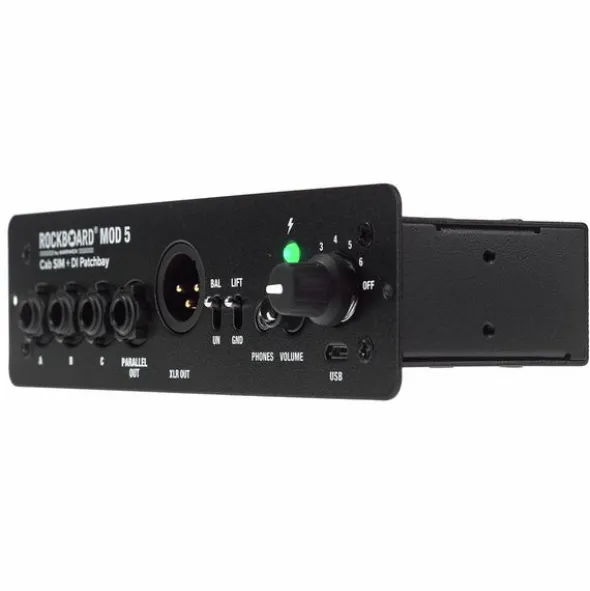

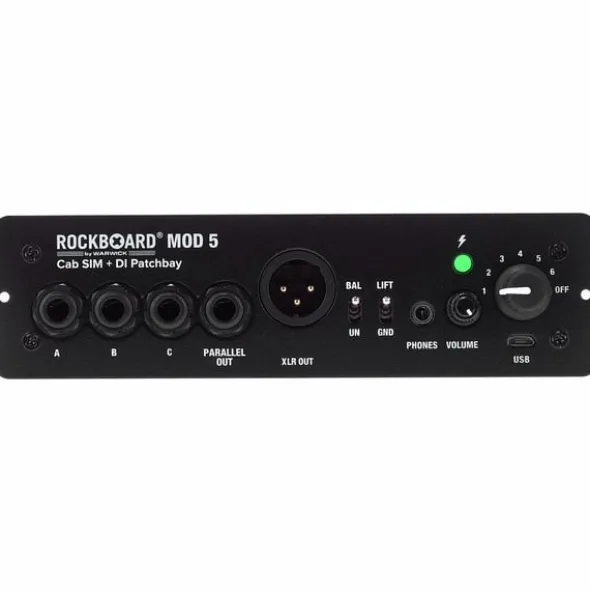

Connections:

• 3x 6.3 mm TRS jack thru
• XLR DI Out
• 6.3 mm Parallel TRS output
• 3.5 mm Stereo headphone output with adjustable volume

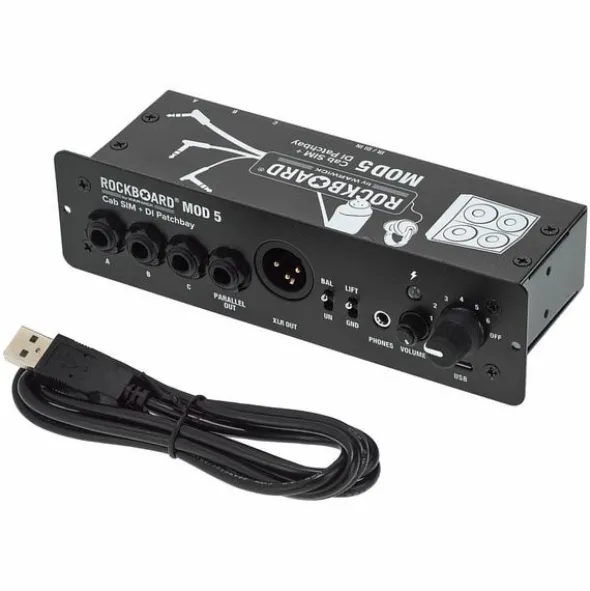

• Micro USB port for firmware updates and upload of custom IRs

Note: Register your product at www.w-distribution.de/Warranty and extend the warranty to 4 years.
