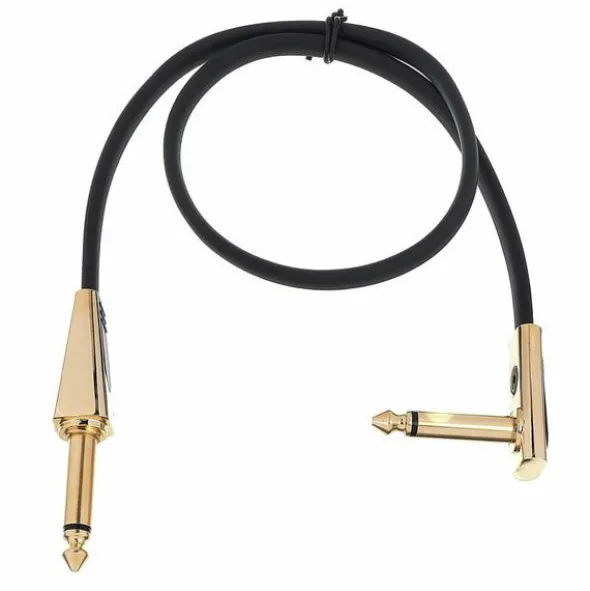

Rockboard Flat Looper/Switch Cable 40 cm

Patch cable

• Length: 40 cm
• High-quality flat patch cable with double shielding and rectangular cross-section

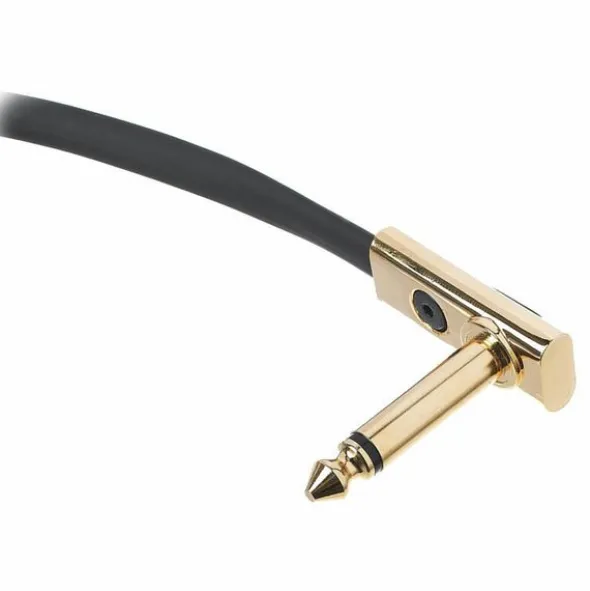

• Space-saving and extra slim angled jack plugs
• Gold-plated contacts (24 karat)
• Metal connector housing
• Flexible copper conductor (20 x 0.12 mm)
• 90% Braided tinned copper shield (4 x 16 x 0.12 mm)
• Additional aluminium foil screen
• PE (polyethylene) Signal insulation
• Flexible PVC cable sheath
• Cable capacity less than 10 pF/decimeter
• Conductor resistance less than 10 mOhm/decimeter
• Angled 6.3 mm mono jack plugs,
• Working temperature: -15º C to +70° C
• External dimensions of cable (W x H): 7 x 3 mm (rectangular)

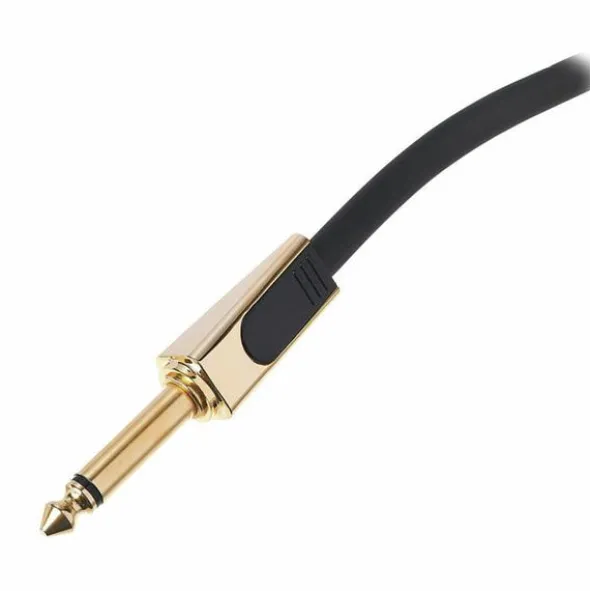

• External connector dimensions (W x H): 12.5 x 7.5 mm (angled), 12.5 x 12.5 mm (straight)
• Colour: Black with gold-plated connector housings
