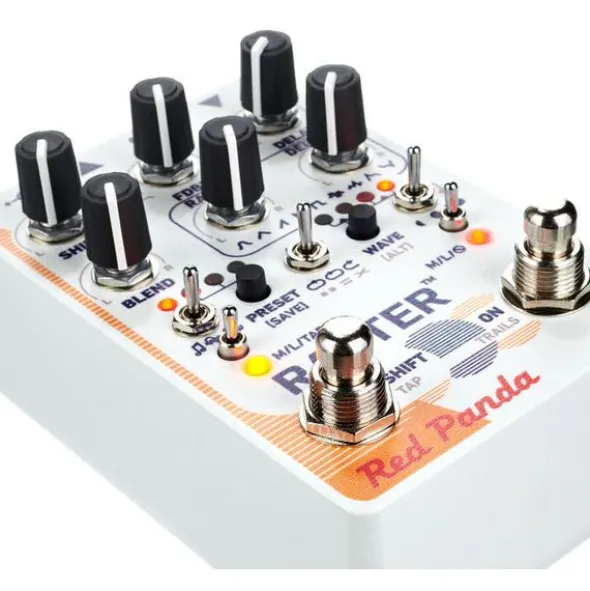

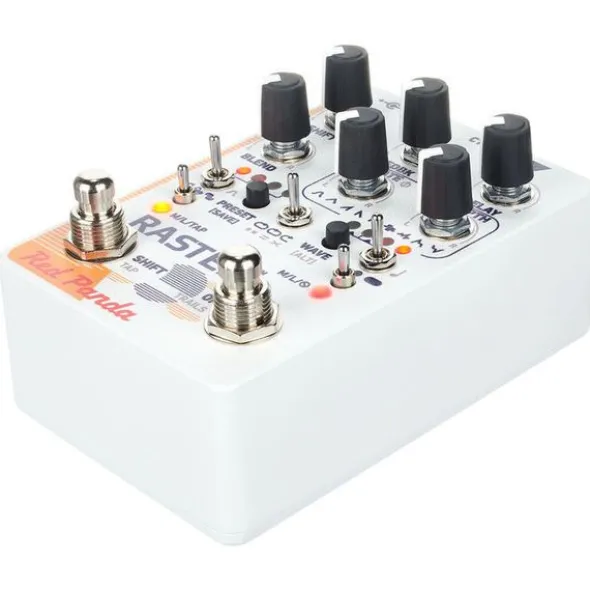

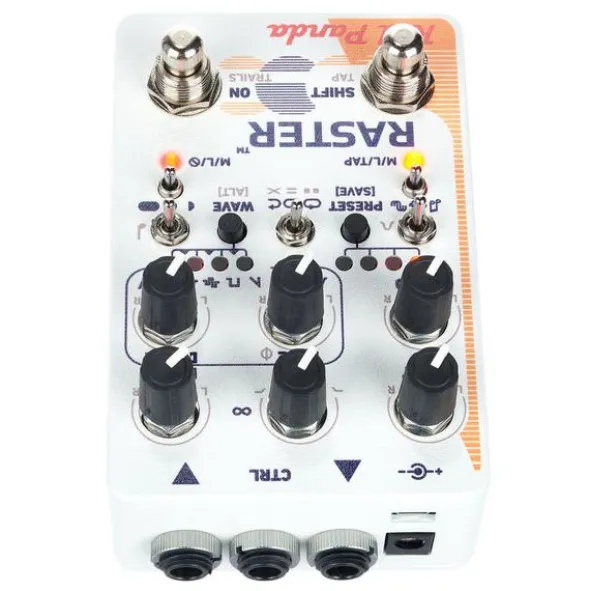

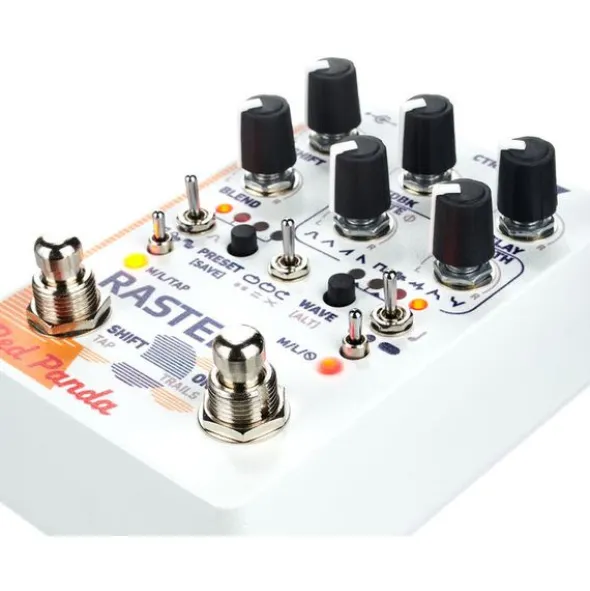

Red Panda Raster V2 – Delay

Effect Pedal

• Delay with pitch and frequency shifter
• Digital operation
• 1600 ms stereo delay time in three ranges
• 3200 ms forward delay available via web-based editor
• Micro pitch shifting and detuning
• Tuned pitch shifting
• +/- 12 semitones
• Phase and frequency shifting
• Repeats can be shifted once or continuously
• Reverse delay
• 7 Modulation waveforms
• Envelope and reverse envelope
• Left/right control of most parameters for stereo delay
• Parallel, serial or ping pong structure
• Tone control
• Soft touch bypass footswitch – selectable as momentary, latching or mute output
• Shift footswitch – selectable as Momentary, Latching or Tap Tempo
• Additional parameters controllable via MIDI (USB or TRS)
• MIDI clock synchronisation
• Presets (4 via pedal, 127 via MIDI)
• Web-based editor provides access to presets and “hidden” parameters
• Analogue buffered bypass

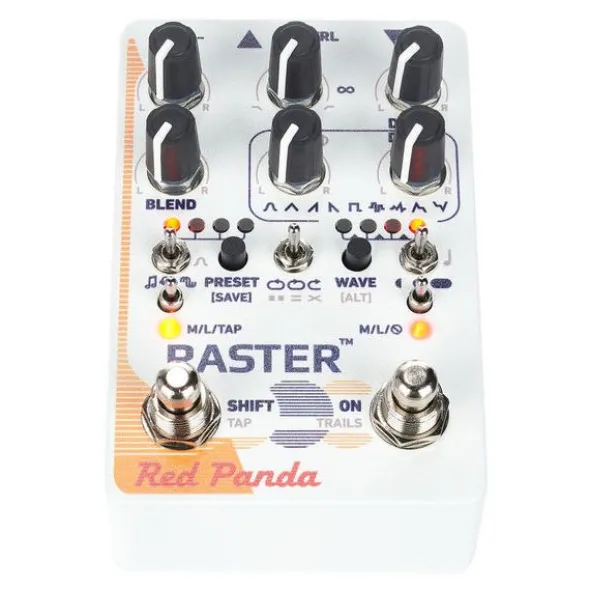

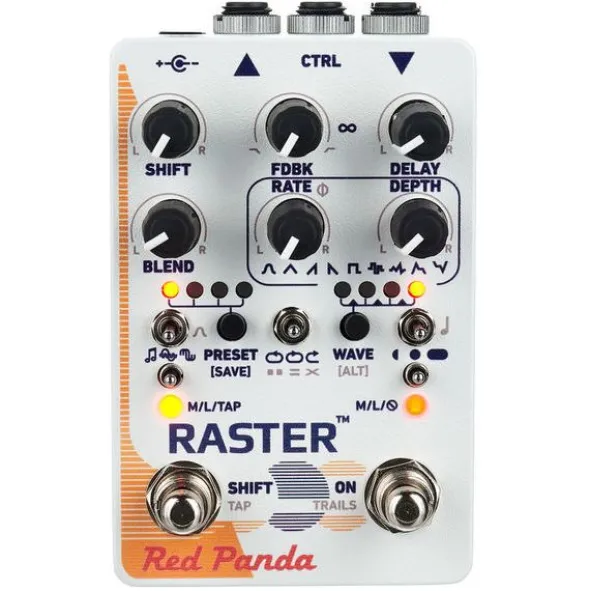

• Controls for Shift, FDBK, Delay, Blend, Rate and Depth
• Switch for preset, wave
• Status LEDs

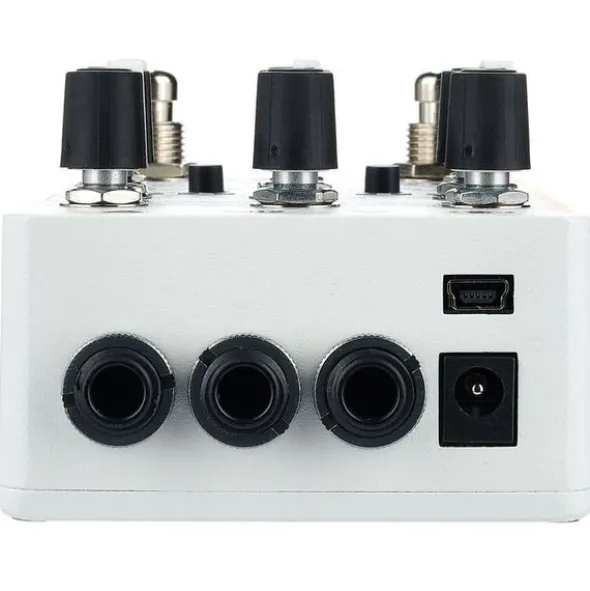

• Input: 6.3 mm stereo jack (TRS)
• Output: 6.3 mm stereo jack (TRS)
• Input for expression pedal / remote switch / remote tap / MIDI connection (freely assignable): 6.3 mm stereo jack (TRS)
• USB input
• Mains adapter connection: 2.1 x 5.5 mm barrel connector, negative polarity inside
• Power supply via optional 9V DC mains adapter

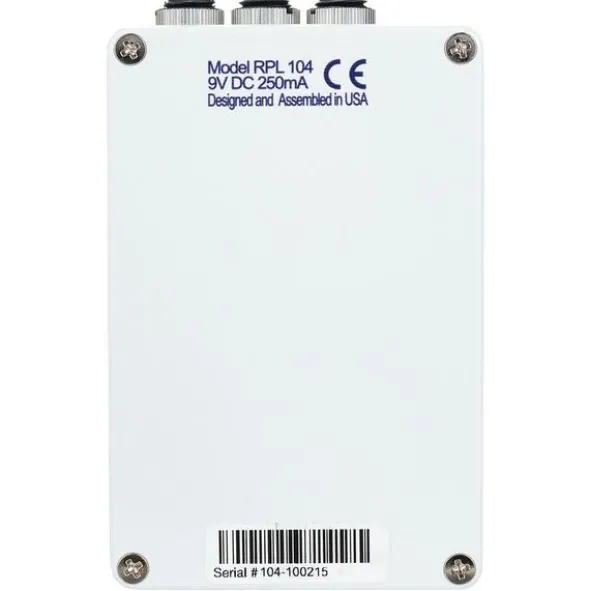

• Power consumption: 250 mA
• Metal housing
• Dimensions (L x W x H): 120.6 x 77.5 x 63.5 mm
• Designed and assembled in the USA

Note: Battery operation not supported
