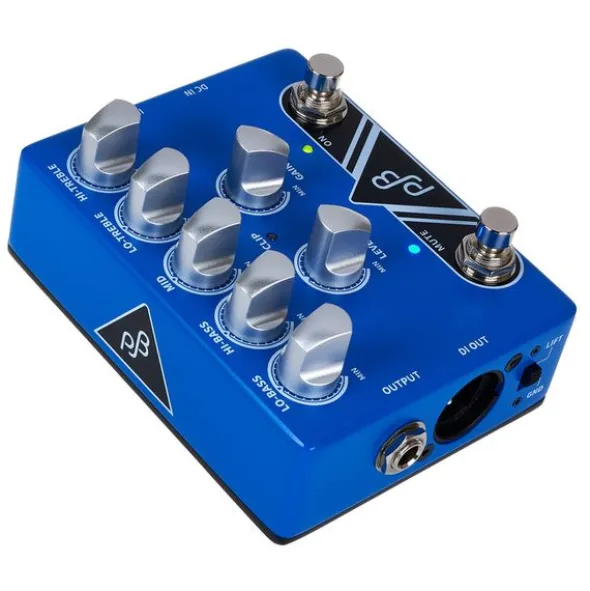

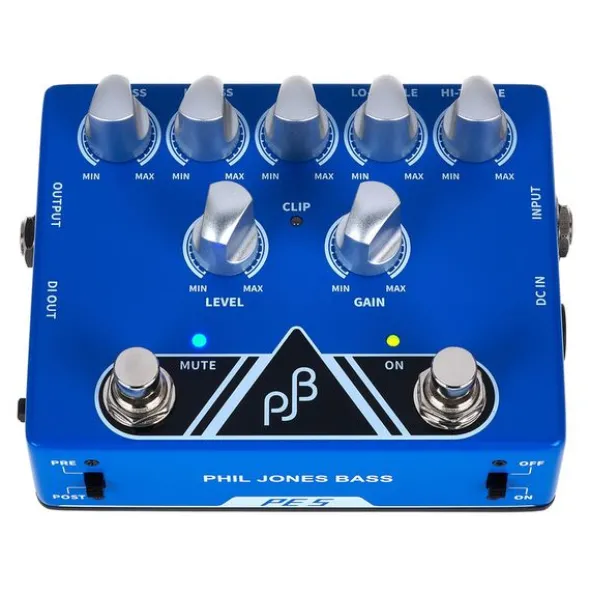

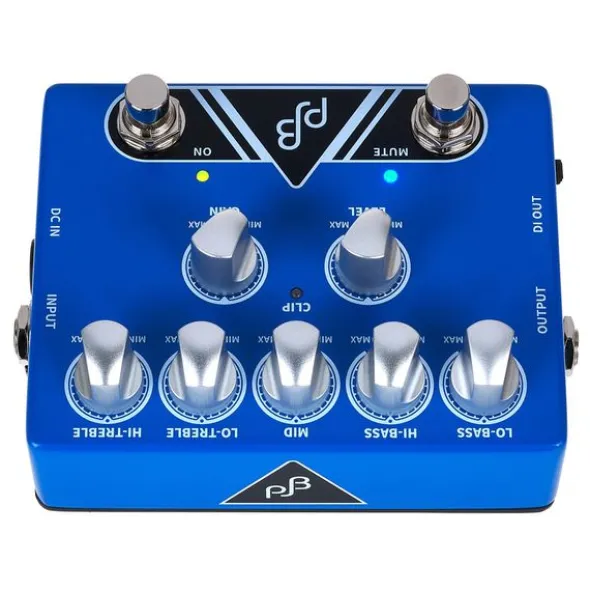

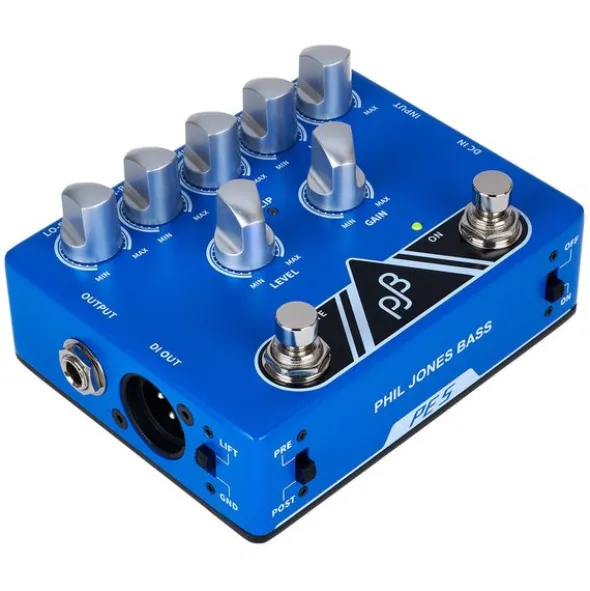

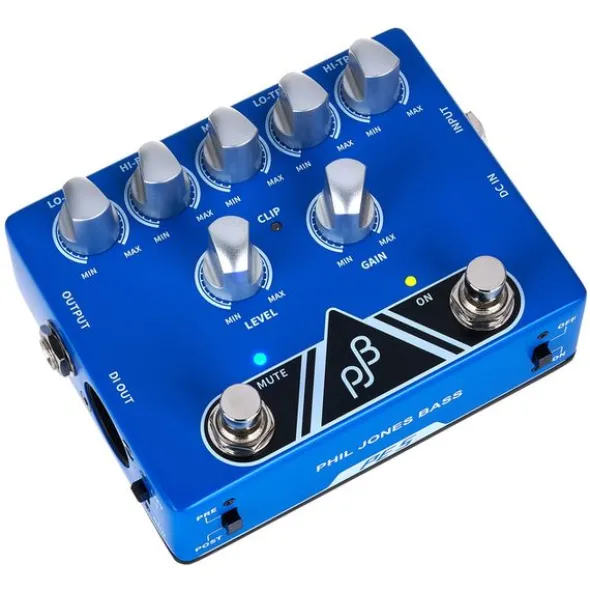

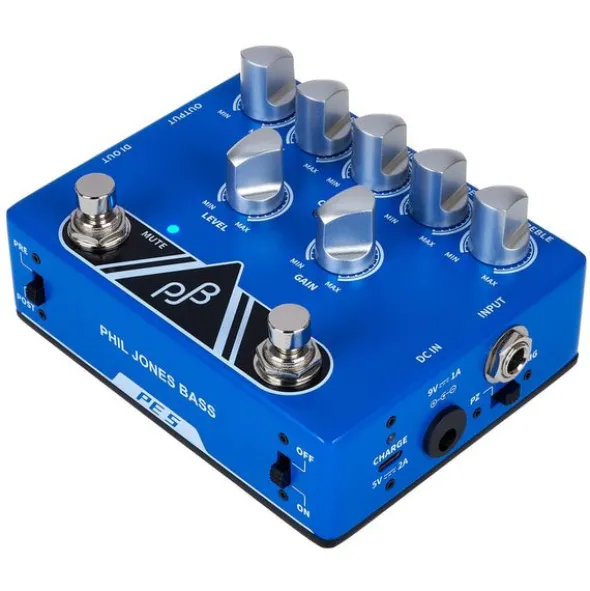

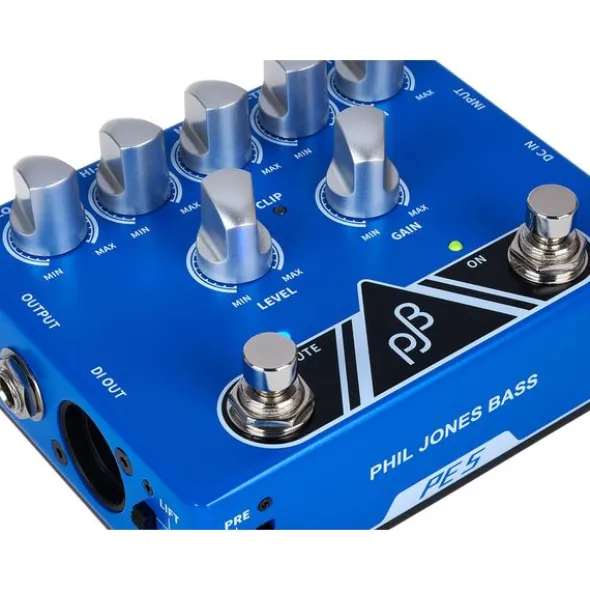

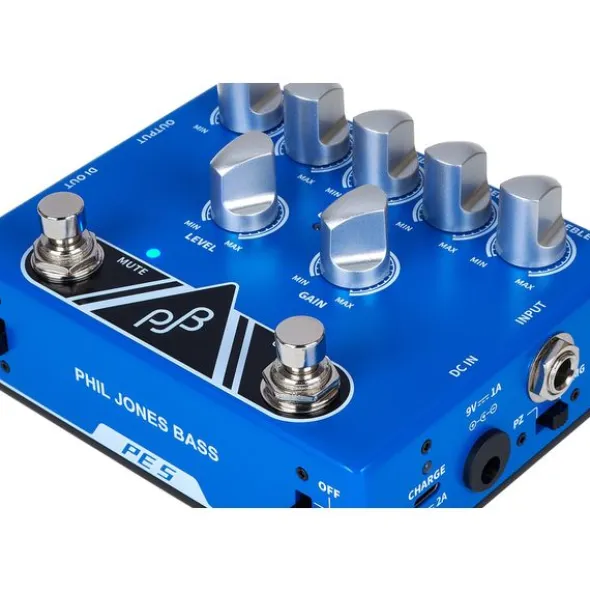

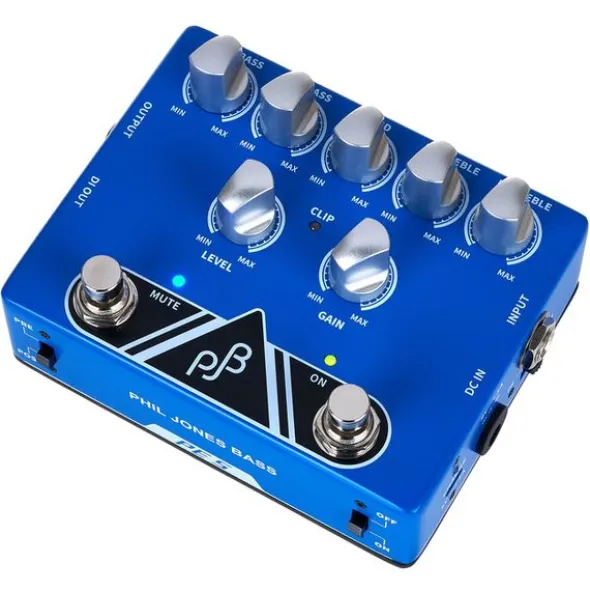

Phil Jones PE-5 Pedal Preamp

Effect Pedal

• Bass preamp / 5-band EQ / direct box / boost effects pedal
• Input level and gain are designed to precisely match the pickup output to the amplifier being used
• Absolutely transparent sound
• Adjustable gain range from – 6 dB to + 6 dB
• 5-Band EQ with adjustable Lo-Bass (+/- 12 dB bei 50 Hz), Hi-Bass (+/- 15 dB bei 160 Hz), Mid (+/- 15 dB bei 630 Hz), Lo-Treble (+/- 15 dB bei 2.5 kHz), Hi-Treble (+/- 15 dB bei 12 kHz)
• Switchable input impedance for magnetic and piezo pick-ups (4.7 MO piezo, 2 MO magnetic)

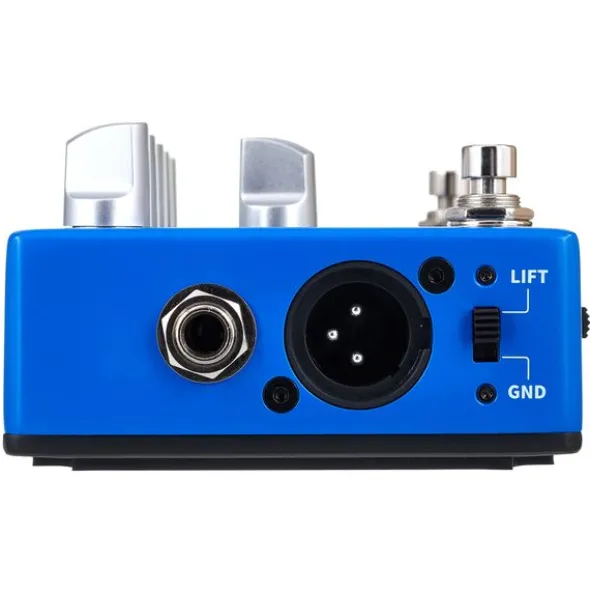

• Switchable ground lift for balanced DI output

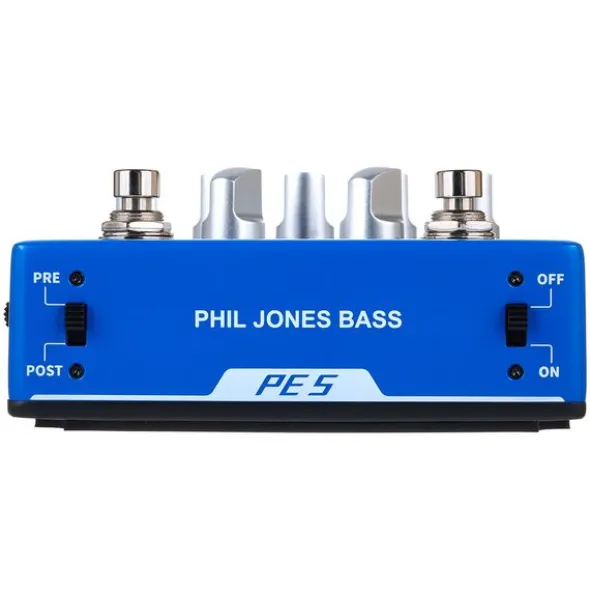

• Switchable pre/post EQ setting for balanced DI output
• Separate on/off switch for the EQ section
• Integrated, rechargeable lithium-ion battery (2,200 mAh battery capacity)
• Up to 8 hours battery life per charge
• True Bypass

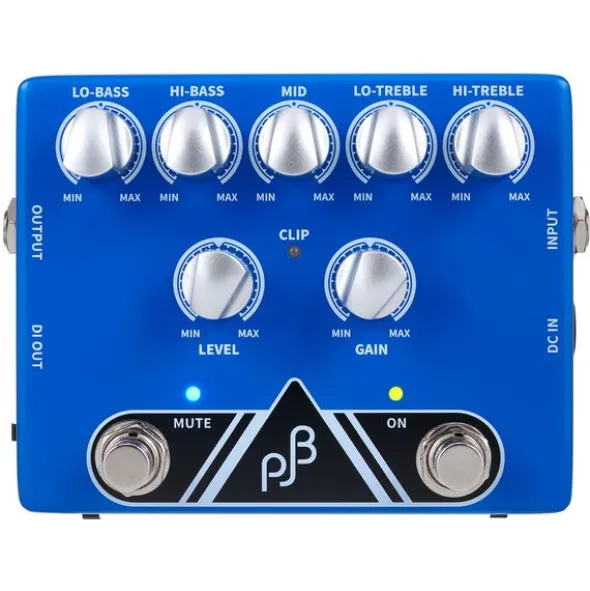

• Controls for Level, Gain, Lo-Bass, Hi-Bass, Mid, Lo-Treble, Hi-Treble
• Switches: GND / LIFT, PRE / POST, EQ ON / OFF, PZ / MG
• Foot witch: Mute, Bypass
• Status LEDs
• Die-cast aluminium alloy housing
• Input: 6.3 mm jack
• Output: 6.3 mm jack
• Balanced DI output: XLR

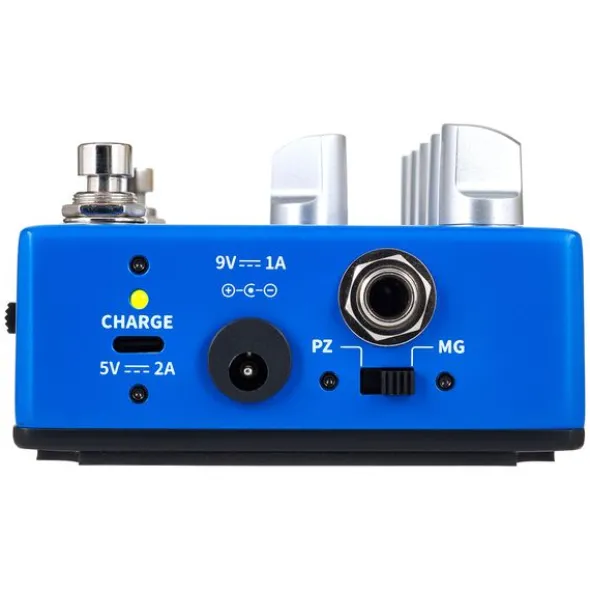

• USB Type-C port (for charging the battery)
• Power supply via internal lithium-ion battery or 9V DC power supply unit with 2.1 x 5.5 mm hollow plug, polarity (-) inside (not included)
• Current consumption: 1,000 mA
• Dimensions (L x W x H): 95 x 120 x 37 mm
• Weight: approx. 450 g

Disponível desdeMarço 2022

número de artigo537577

unidade de venda1peça(s)

DesignFloor Effects Pedal

TubesNo

Amp ModelingYes

Integrated EffectsNo

Headphone OutputNo

Direct OutYes

MIDI Connector(s)No

Integrated Expression PedalNo

Connections for Pedals or SwitchesNo

Aux InputNo

Integrated TunerNo

USB ConnectionYes

Effect TypesPreamp
