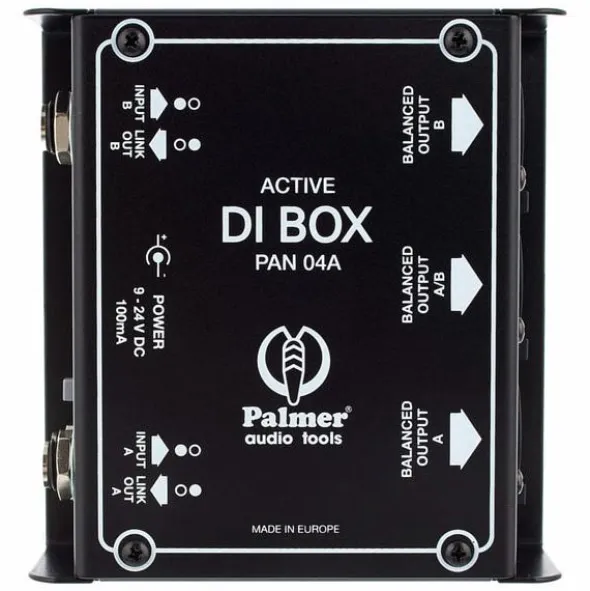

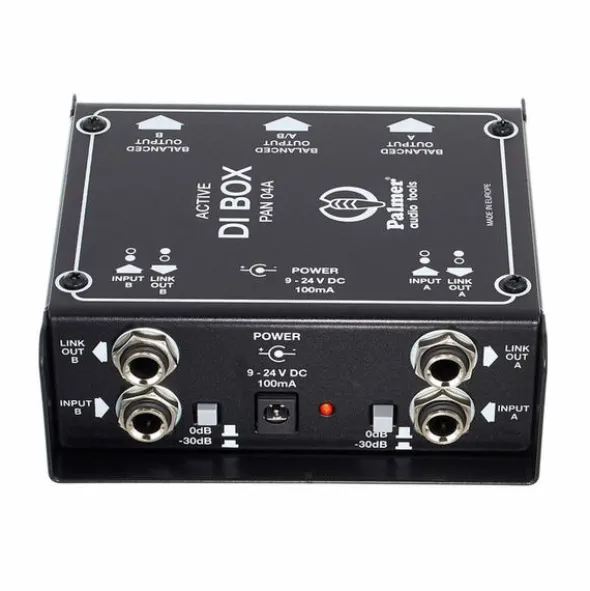

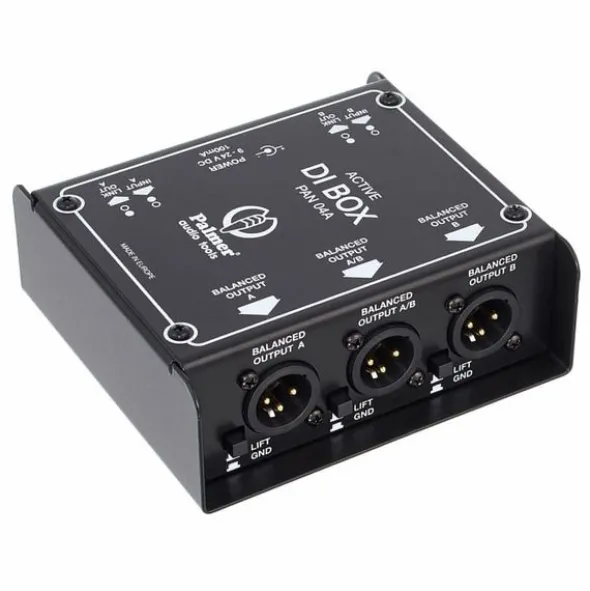

Palmer PAN 04A

Active 2-Channel DI-Box

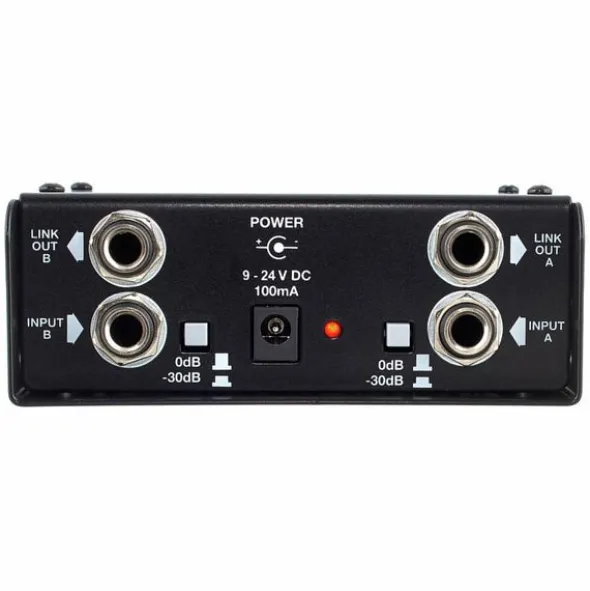

• Switchable pad: 0/-30 dB

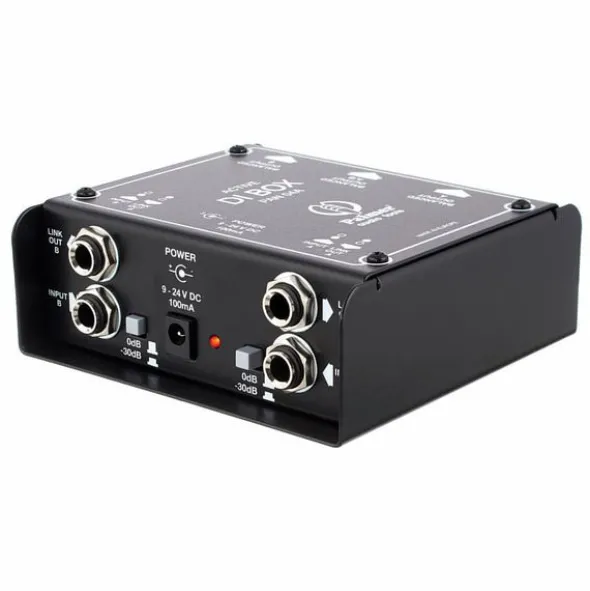

• 2 Jack inputs
• 2 Jack link outputs

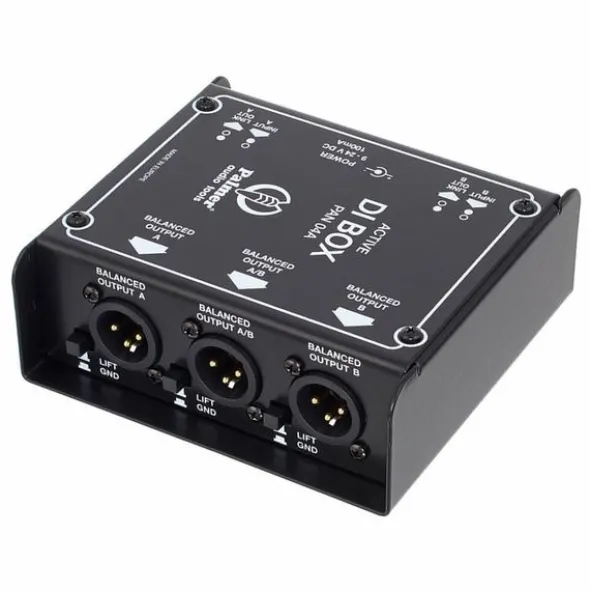

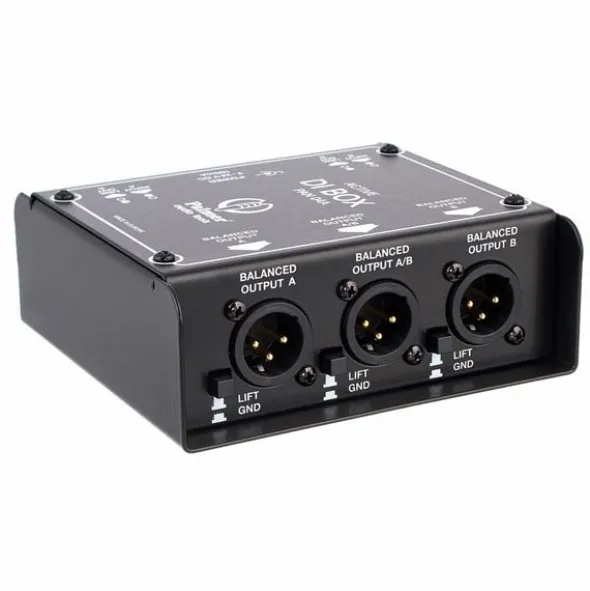

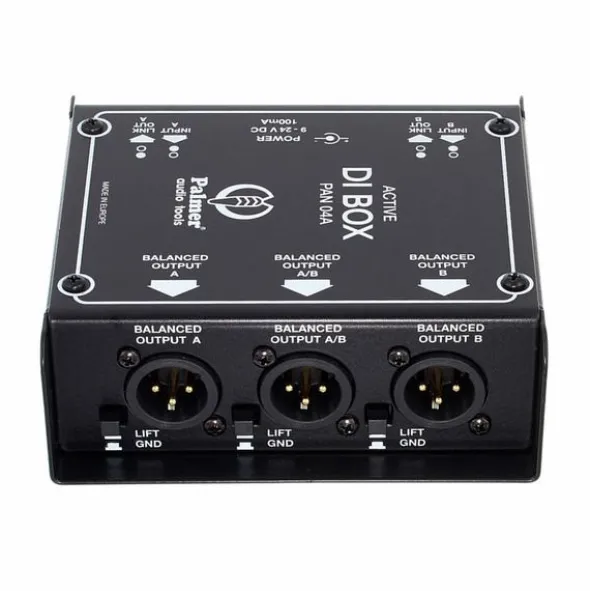

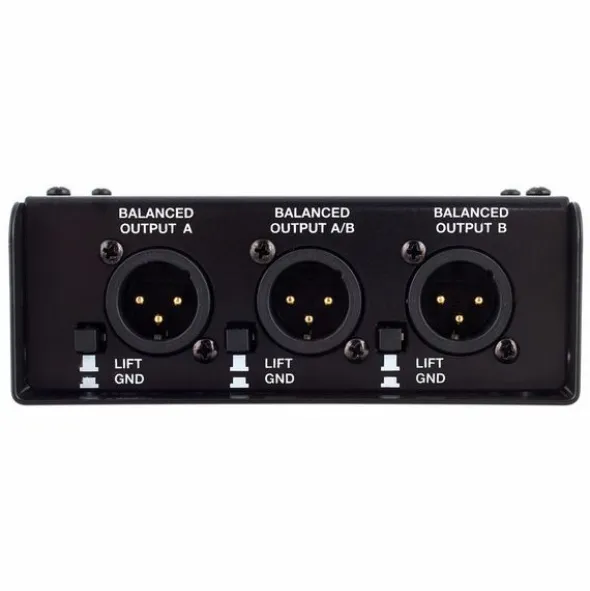

• 2 Balanced XLR outputs
• Balanced XLR mix output
• Switchable ground lift per channel
• Input impedance: 1 MOhm
• Output impedance: 200 Ohm
• Max. input level: +45 dBu
• Max. output level: +11 dBu
• Transformer ratio: 0.125694444
• Frequency range: 10 – 40,000 Hz
• Operation with external 9-15 V DC power supply or 48 V phantom power supply
• Robust metal housing
• Dimensions (W x H x D): 116 x 110 x 45 mm
• Weight: 0.47 kg
• Colour: Black

Note: Power supply not included in delivery
