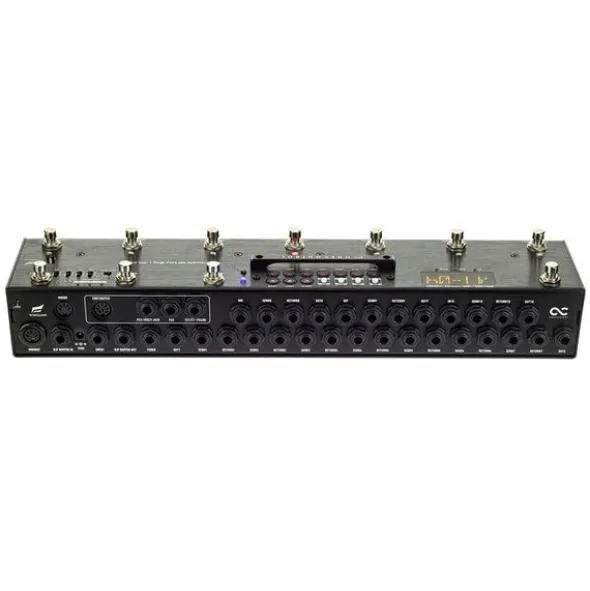

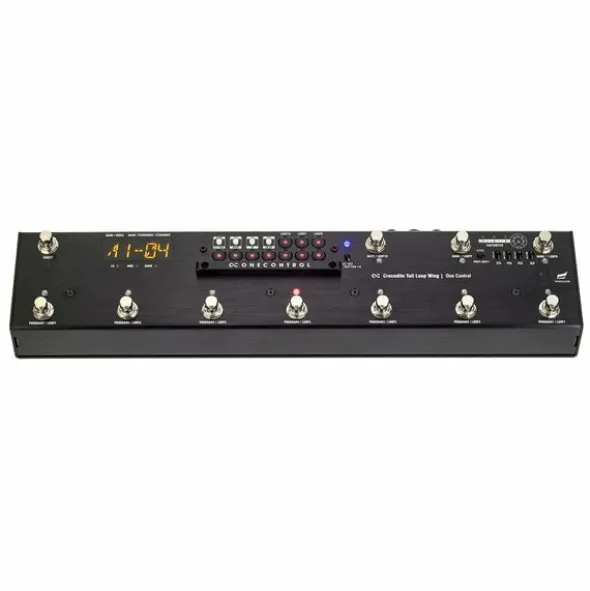

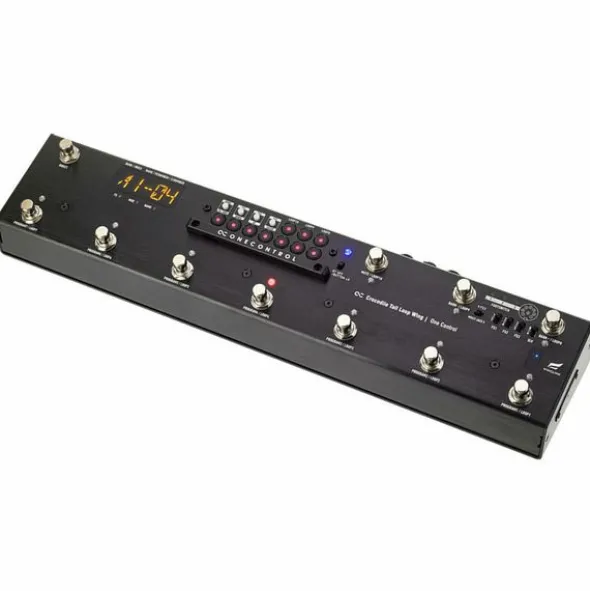

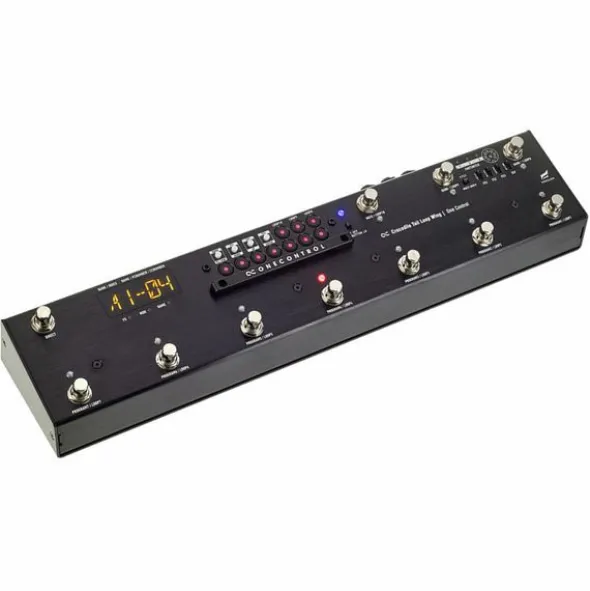

One Control Crocodile Tail Loop Wing OC10W

Programmable 10-channel true bypass loop switcher for effects pedals.

• Footswitches provide control over 10 independent loops and a separate tuner output
• Extremely simple and intuitive programming
• Winglink iOS app for programming and remote control
• 168 Freely configurable presets – 24 banks, 7 presets per bank
• 2 Selectable switching modes: Program Mode, Direct Mode
• Integrated BJF buffer circuit with separate inputs and outputs

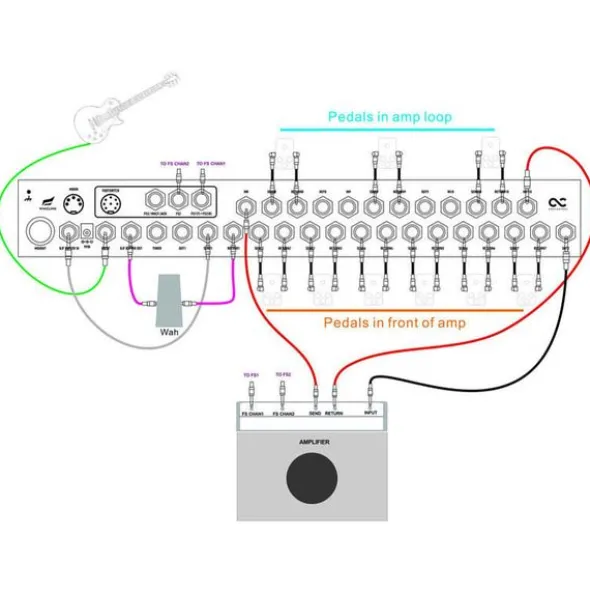

• 7 Serial loops and 3 separate loops
• 3 Separate footswitch connections and an 8-pin DIN connector can be used as an amp footswitch
• Fully MIDI-capable with MIDI Out and MIDI In
• True Bypass

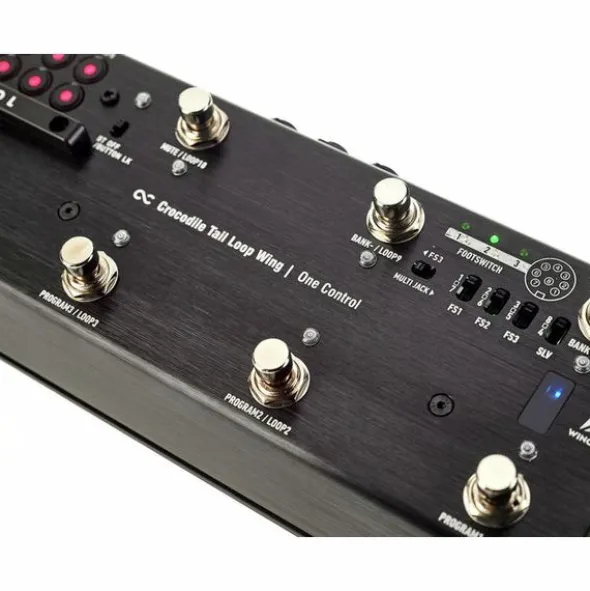

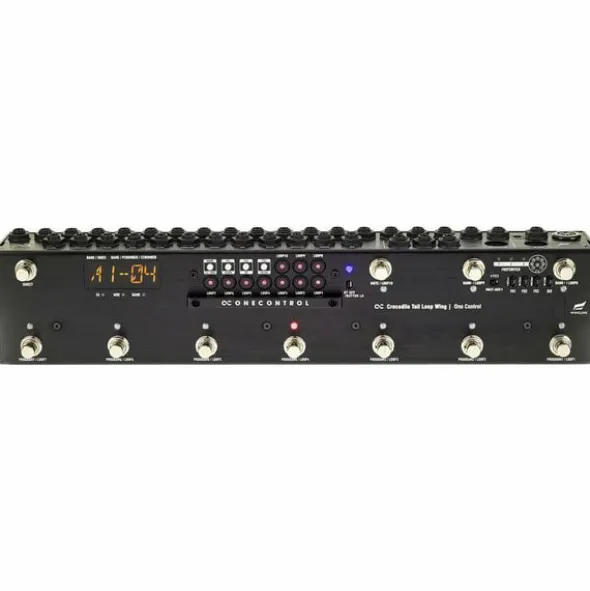

• 11 Footswitches: PGM1/L1, PGM2/L2, PGM3/L3, PGM4/L4, PGM5/L5, PGM6/L6, PGM7/L7, Bank Up/L8, Bank Dn/L9, Mute/L10, Direct
• 10 Keyswitches for programming the presets
• 5 Switches control the footswitch connections
• 4 Multi-function footswitches
• Bluetooth on/off switch

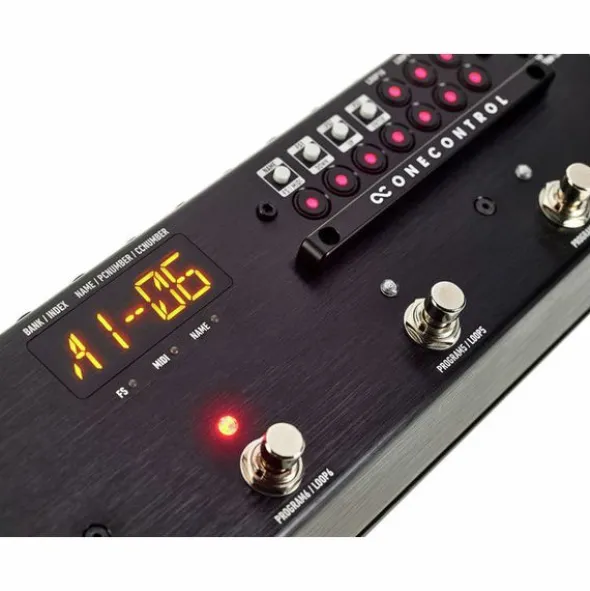

• Status LEDs
• Metal housing

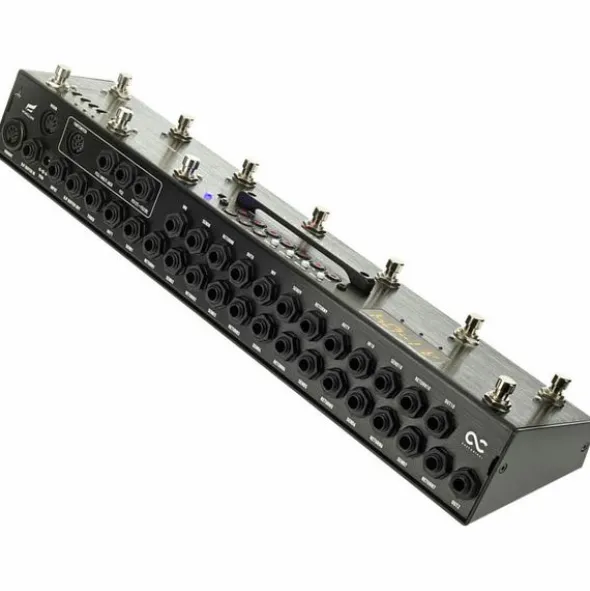

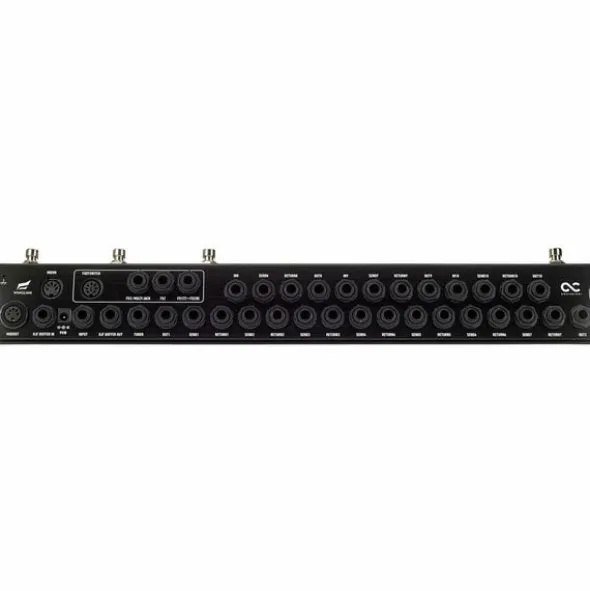

• 6.3 mm Mono jack inputs / outputs
• 5-Pin MIDI input / output
• Power supply via 9V DC power supply unit with 2.1 x 5.5 mm barrel connector, polarity (-) inside (not included in delivery)
• Power consumption: max. 400 mA
• Dimensions (L x W x H): 100 x 440 x 64 mm
• Weight: 1.34 kg
