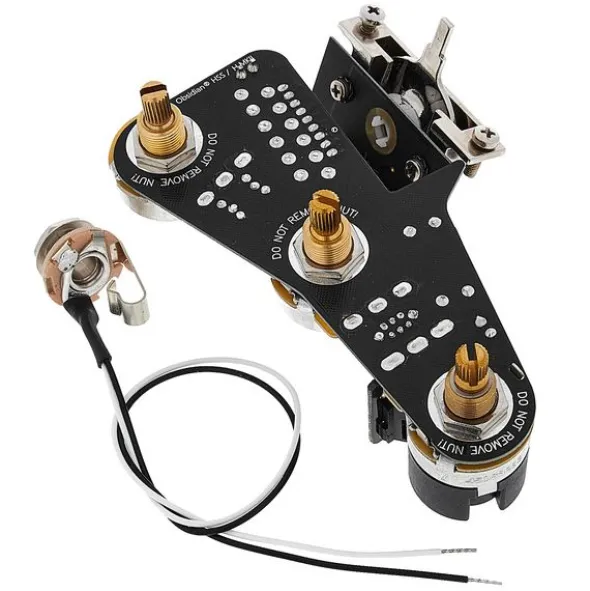

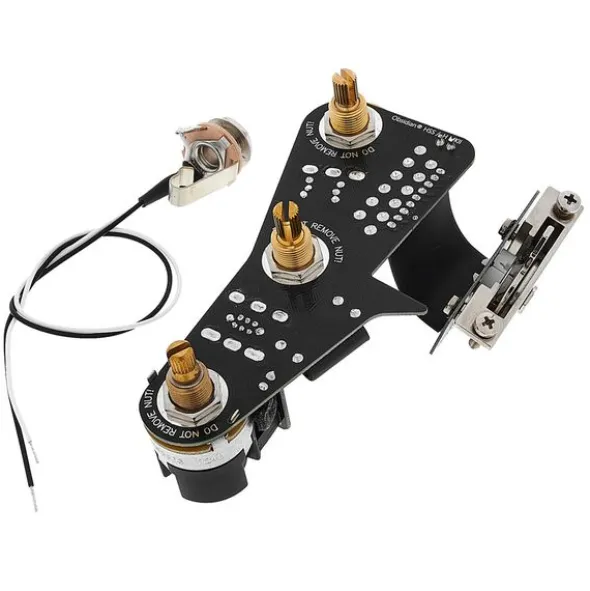

ObsidianWire ST 7-Way ST HSS/HSH Harness

Solderless Electronics Replacement Set for Electric Guitar

• For ST-style electric guitar with HSS or HSH pickup configuration
• Play the neck and bridge pickup or even all three pickups together
• Function switch in the push/pull tone control, no additional modifications required
• Intelligent potentiometer resistance switching (500 kOhm for humbucker & 250 kOhm for single coil)
• Internally switchable between an HSS and HSH pickup configuration
• High-quality components provide a significant improvement over standard electronics

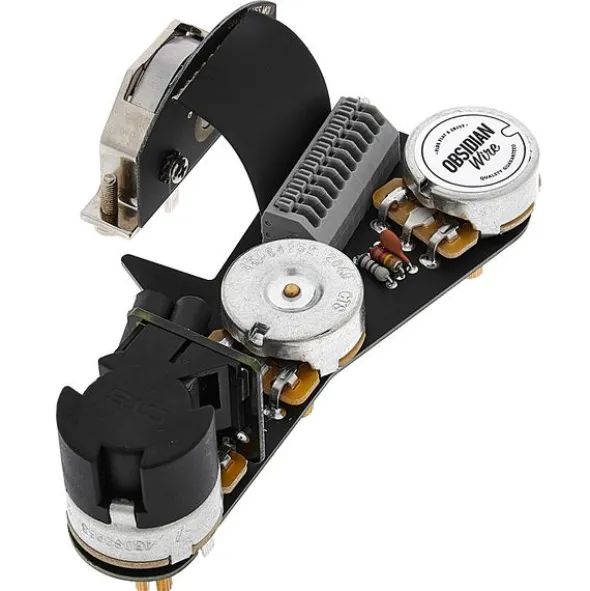

• Solderless plug-in wire connectors for quick installation and easy pickup changing
• Controls: Volume, tone (neck & middle), P/P tone (bridge & 5-way switch function)
• Made in New Zealand

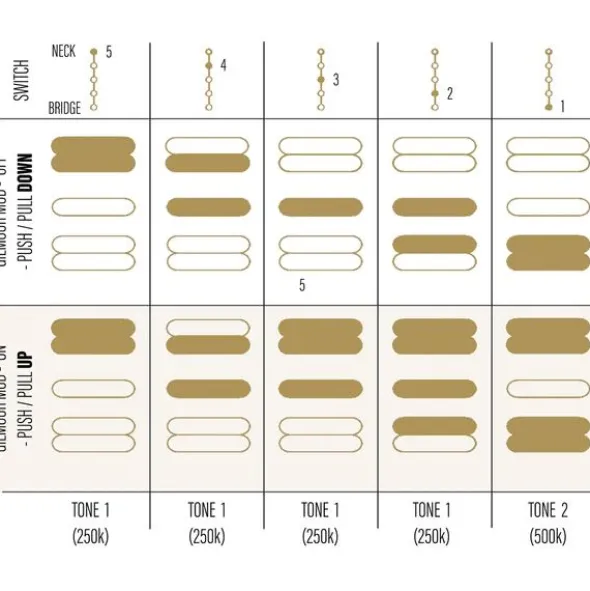

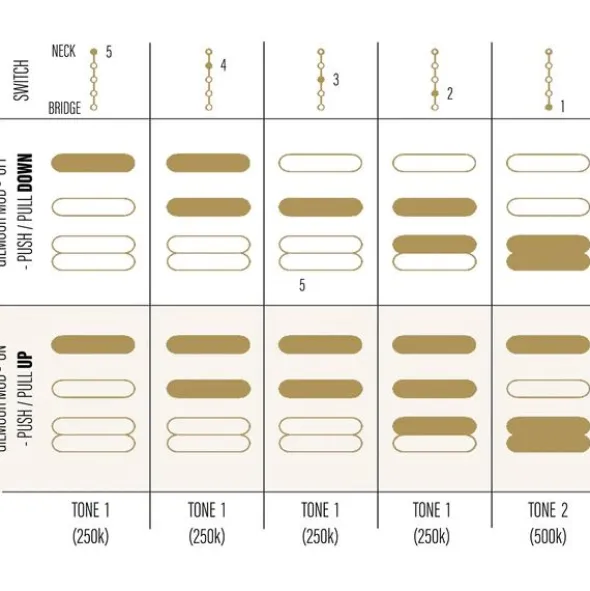

Switch positions:

• HSH P/P switch down: 1: bridge, 2: bridge (split) & middle, 3: middle, 4: neck (split & middle, 5: neck
• HSH P/P switch up: 1: bridge, 2: bridge (split), middle & neck, 3: middle & neck, 4: middle & neck (split), 5: Neck
• HSS P/P switch down: 1: bridge, 2: bridge (split) & middle, 3: middle, 4: neck & middle, 5: neck
• HSS P/P switch up: 1: bridge & neck, 2: bridge (split), middle & neck, 3: middle & neck, 4: neck & middle, 5: neck

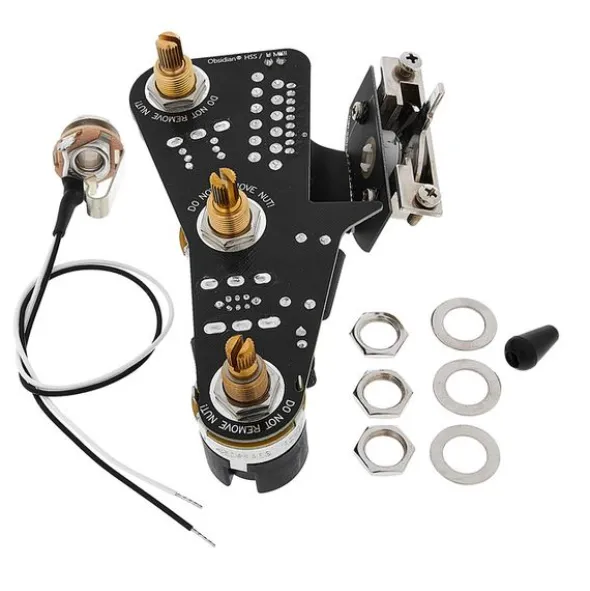

Delivery contents:

• Volume control: 1 CTS 250 kOhm, short shaft, finely ribbed slotted shaft (24 spline for US guitars & pot knobs)
• Tone control: 2 CTS 250 kOhm, short shaft, finely ribbed slotted shaft (24 spline for US guitars & pot knobs), 1 push/pull
• Capacitors: 150 Series polyester 0.022µF
• Switch: Oak Grigsby 5-way blade switch
• Jack socket: Switchcraft 6.3 mm mono

Disponível desdeJaneiro 2024

número de artigo580093

unidade de venda1peça(s)

DesignPrewired Harness/Wiring Kit

Resistance Value500/250 kOhm

Characteristic CurveLogarithmic

Thread Length in mm6,4 mm

Tandem PotiNo

Push/PushNo

SolderlessNo

shaft typegrooved

TypeSwitcher

ColourChrome
