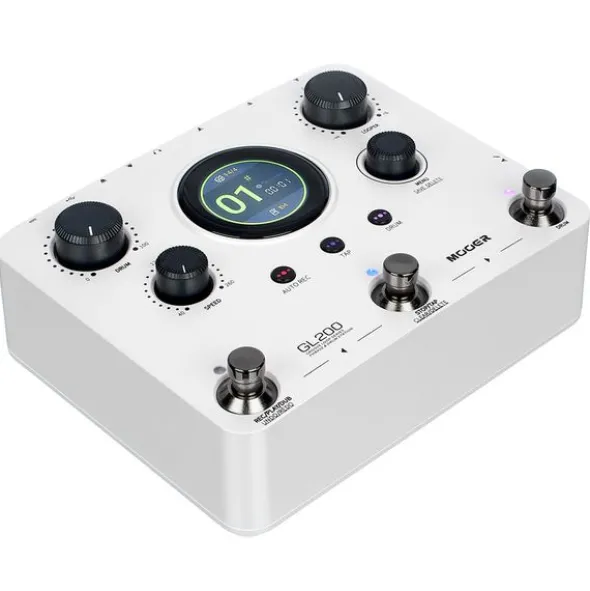

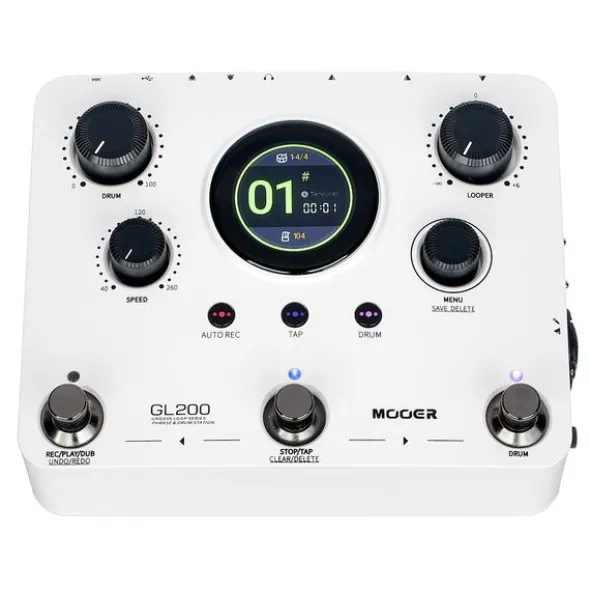

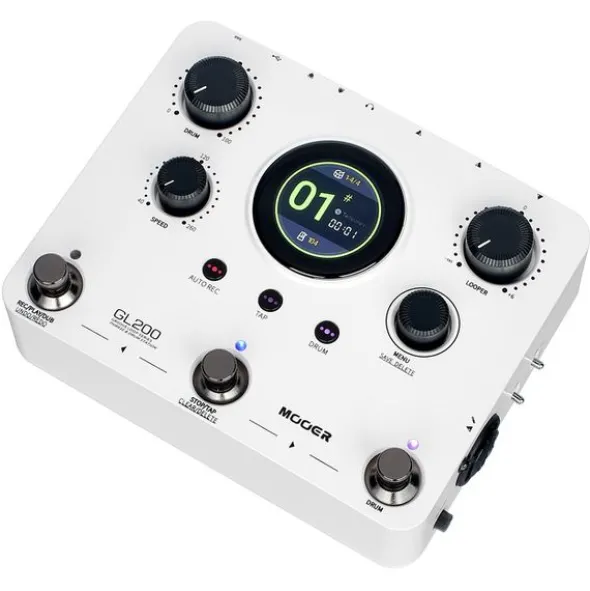

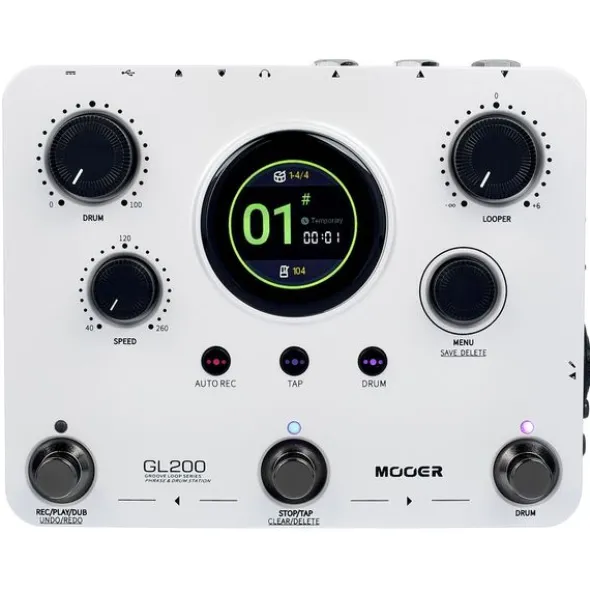

Mooer GL200 Groove Loop

Effect Pedal

• Stereo looper and drum computer
• Looper and drum computer can be used independently and simultaneously
• 100 memory slots with a total of 800 minutes of recording time

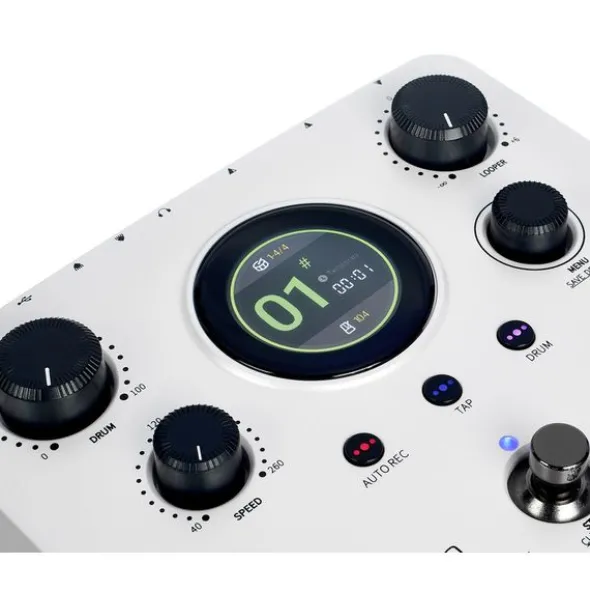

• Circular 1.28″ touch screen for status display and convenient function control
• 220 different drum grooves in 11 different styles
• Users can import their own drum grooves and MIDI rhythms.
• BPM adjustment via tap tempo input
• ‘Time Stretch’ function for tempo adjustment without changing the pitch
• Automatic recording start function avoids synchronisation problems and enables spontaneous recordings
• Integrated adjustment function ensures the drum computer syncs perfectly with the looper recordings
• Flexible options for input and output
• Automatic tempo adjustment for the drum computer (DrumMatch)
• Variable fade out function
• Specialised PC software for importing and exporting audio files, managing user-created drum grooves and MIDI files, and updating the firmware
• 44.1 kHz / 24-bit sampling rate
• Playing and recording Bluetooth audio

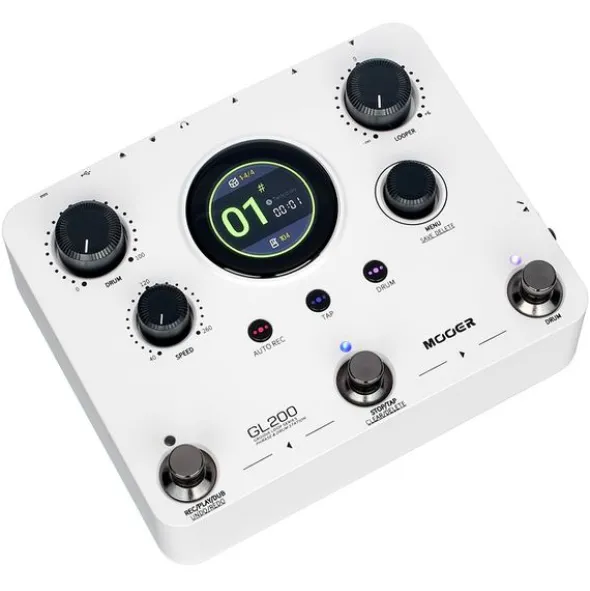

• Three multi-functional footswitches

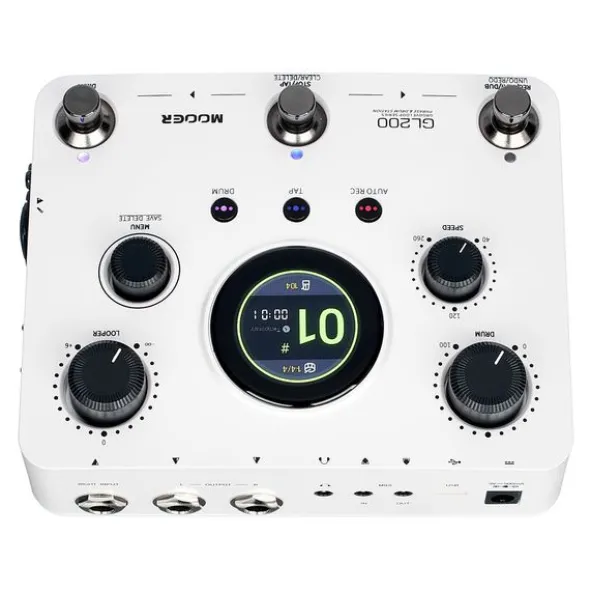

• Controls for Looper Volume, Drum Volume, Speed, Menu Encoder
• Buttons for Auto Rec, Tap, Drum
• MIC/LINE switch for XLR input
• Phantom power switch for microphone input

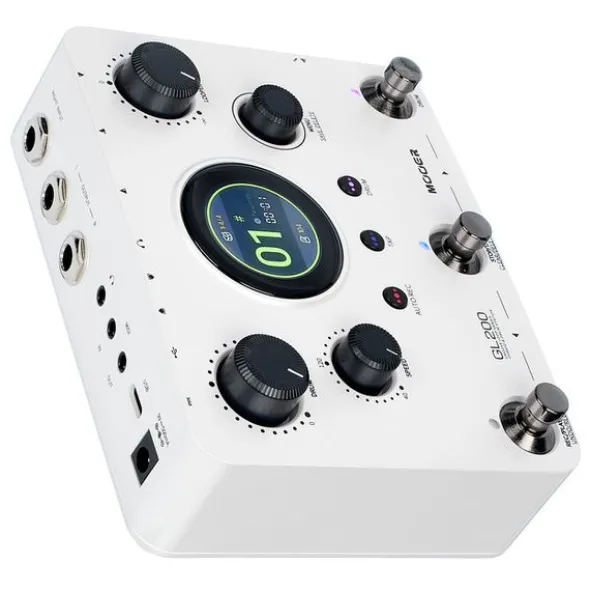

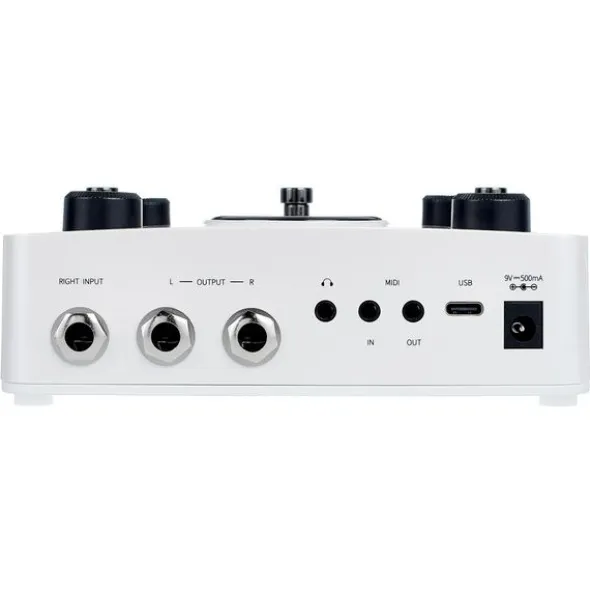

• 6.3 mm mono jack input

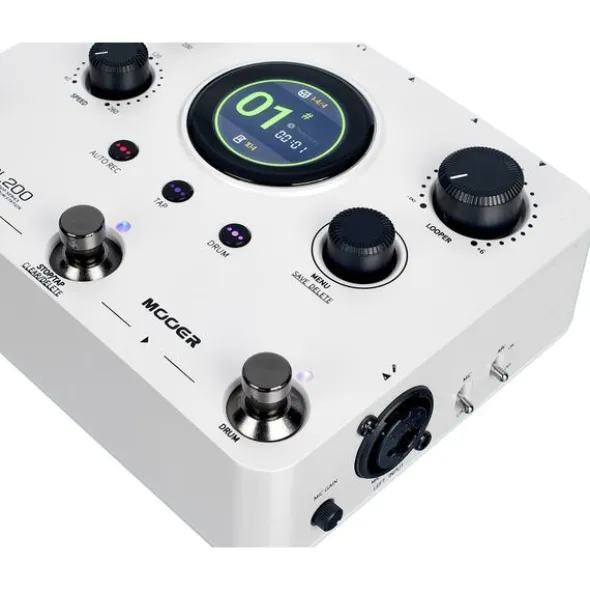

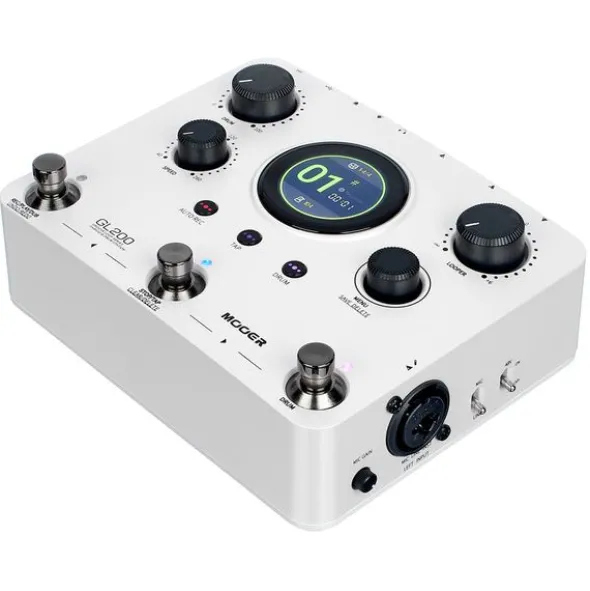

• XLR/6.3 mm combo input for microphone and line signals
• 2 x 6.3 mm mono jack outputs
• 3.5 mm jack stereo headphone output
• USB-C port for connecting to a computer
• Two TRS MIDI connections

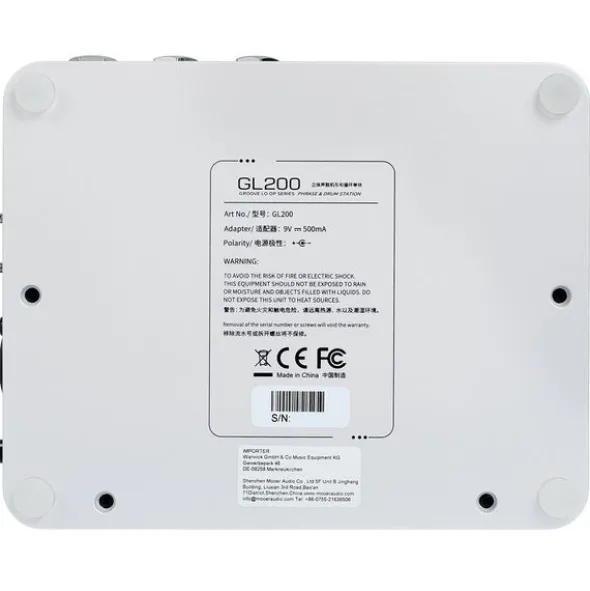

• Power supply via the included 9 VDC mains adaptor with a 2.1 x 5.5 mm barrel connector; centre negative
• Current consumption: 500 mA
• Dimensions (L x W x H): 146 x 115.6 mm x 53.2 mm
• Weight: 370 g

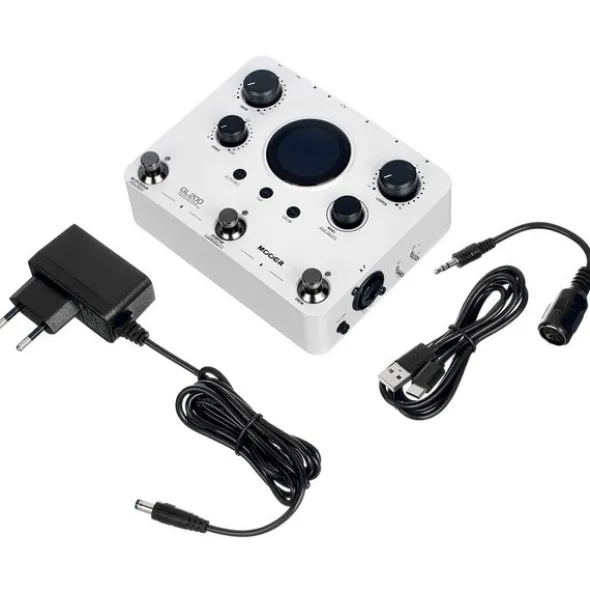

• Includes USB-C to USB-A cable, power supply unit
• 3.5 mm to 5-pin MIDI adapter

Note: No battery operation possible. Updating the device’s firmware is a sensitive process that must be carried out with particular care. Please ensure to follow all instructions carefully. Incorrectly performing the update can cause irreparable damage and void the warranty.
