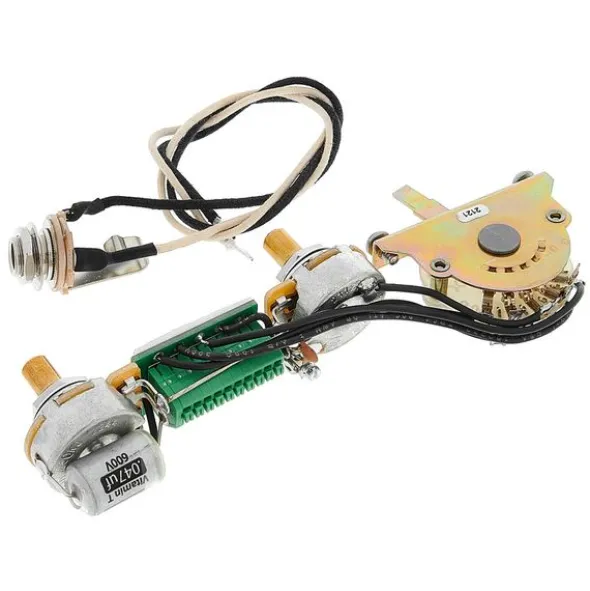

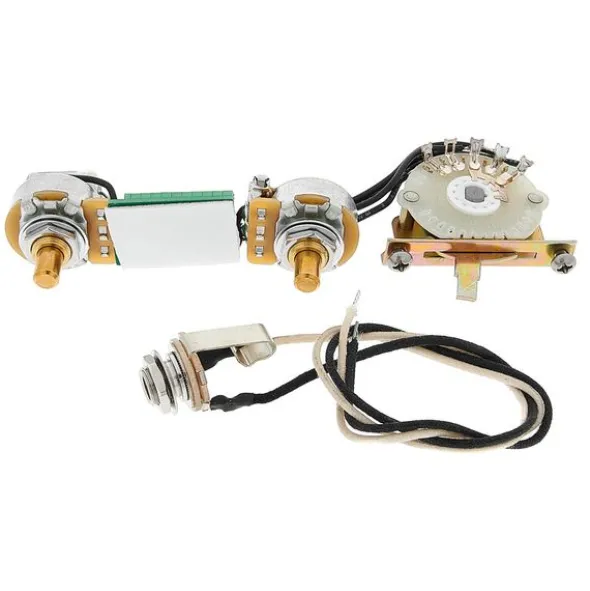

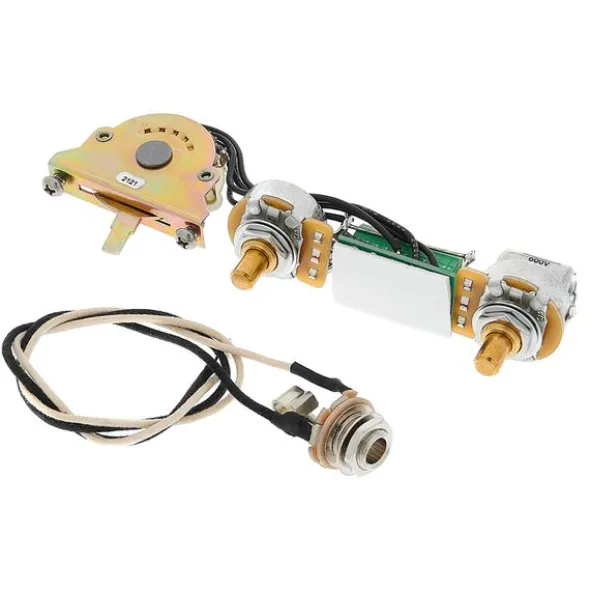

Mojotone T 4-Way Solderless Harness

Electronics Replacement Set for Electric Guitar

• For T-Style models
• Hand-wired electronics kit with highest quality components, providing a significant improvement over standard electronics
• Solderless plug-in wire connector for quick installation and easy pickup changing
• Switch positions: 1: bridge, 2: bridge and neck (parallel = standard), 3: neck, 4: neck and bridge (serial = fat humbucker tone)
• Made in USA

Delivery contents:

• Volume control: 1x CTS 250 kOhm, Vintage Audio Taper (30%).
• Tone control: 1x CTS 250 kOhm, Vintage Audio Taper (30%)
• Thread length: 9.5 mm
• Smooth axle (solid shaft)
• 1 .047µF capacitor
• 1 Oak Grigsby 4-Way lever switch
• 1 Switchcraft 1/4″ mono jack socket

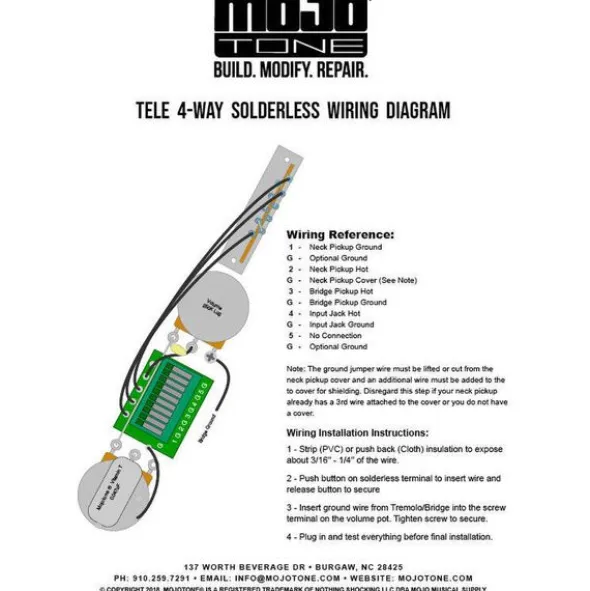

Note: The 4-way modification requires a separate wire from the cover of the neck pickup (if it has a cover) to the shield; if you do not have this wire, you can cut off the connection between the cover and the eyelet and solder a separate wire to the cover.

Disponível desdeJaneiro 2023

número de artigo556711

unidade de venda1peça(s)

DesignPrewired Harness/Wiring Kit

Resistance Value250 kOhms

Characteristic CurveLogarithmic

Thread Length in mm9,5 mm

Tandem PotiNo

Push/PushNo

SolderlessYes

shaft typeSmooth

Part TypeWiring Kit

TypeSwitcher

ColourSilver
