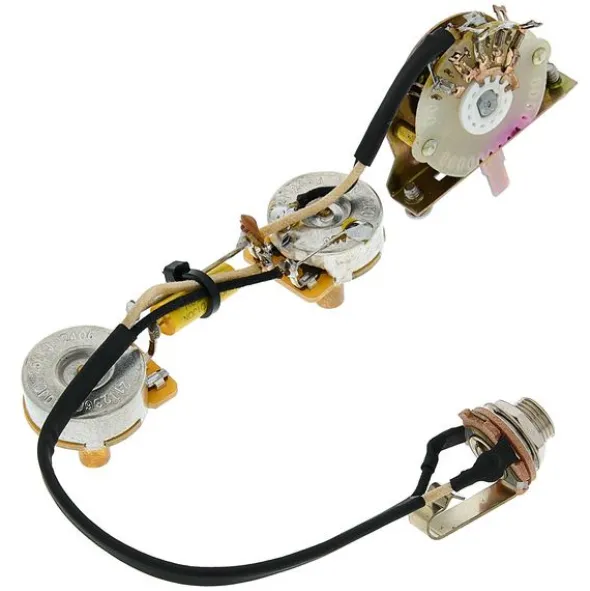

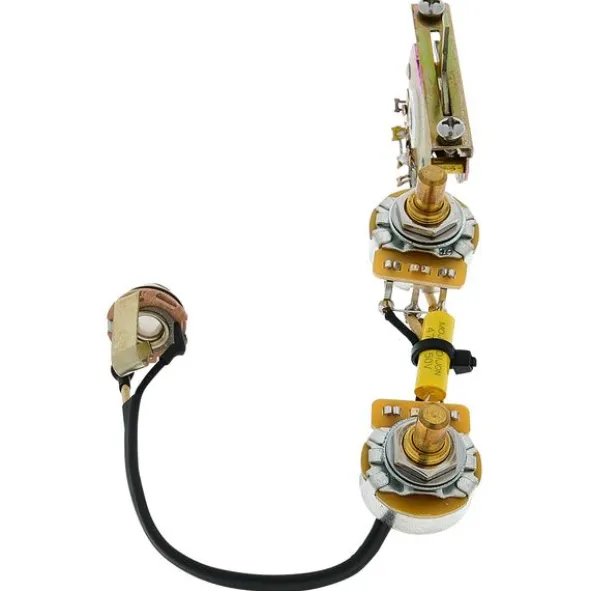

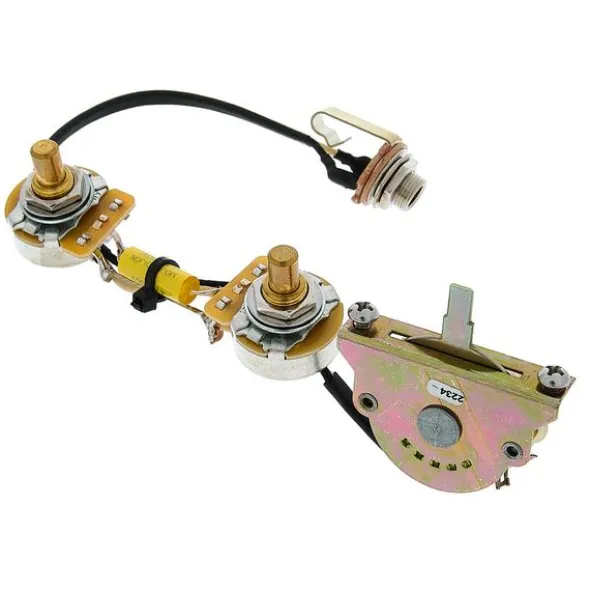

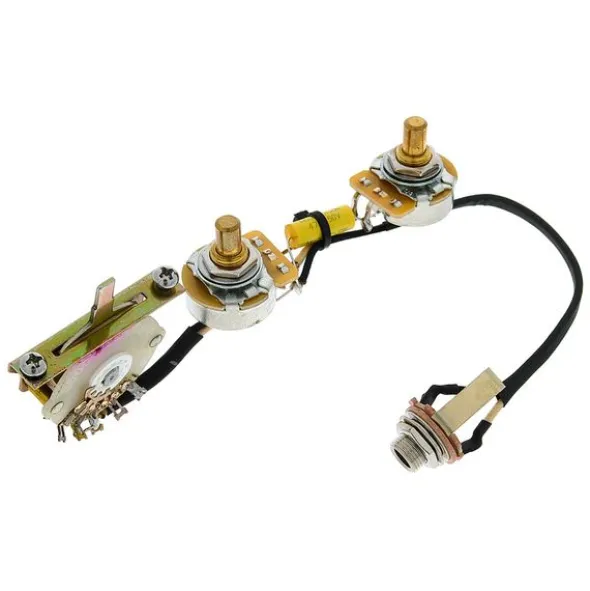

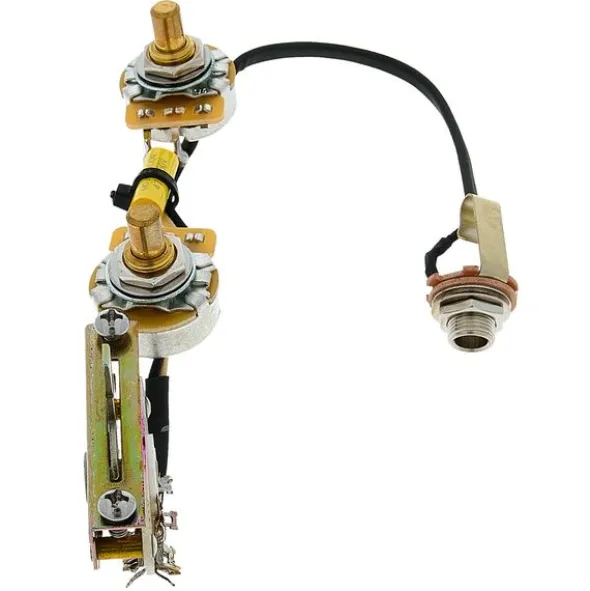

Mojotone T 4-Way Prewired Harness

Pre-Wired Electronics Replacement Kit for T-Style Electric Guitar

• A kit comprising top-quality components, offering a significant improvement over standard electronics
• Suitable for 2 single-coil pickups with 1 volume control, 1 tone control and a standard 3-way switch
• Features a special 4-way switch which, in the fourth position, delivers a rich humbucker sound, whilst the other three positions retain the standard Tele switching functions
• The treble bleed circuit prevents a loss of treble when the volume control is turned down
• Switch positions: 1: Bridge, 2: Bridge and neck in parallel, 3: Neck, 4: Bridge and neck in series
• Manufacturer number: Z457335-4S
• Made in USA

Set consists of:

• 2 Mojotone Custom CTS 250k solid-shaft potentiometers (9.5 mm thread length)
• CRL 4-way switch
• Switchcraft mono input jack
• .047uf capacitor
• Pre-tinned, fabric-covered wire
• Volume mod (Treble Bleed)

Note: If the neck pickup has only two wires and a cover, a third wire must be isolate and added to the cover for the 4-way modification to work properly. It may also be necessary to lengthen the slot in the control panel so that the switch engages fully in the first and fourth positions.

Disponível desdeAbril 2026

número de artigo642489

unidade de venda1peça(s)

DesignPrewired Harness/Wiring Kit

Resistance Value250 kOhms

Characteristic CurveLogarithmic

Thread Length in mm9,5 mm

Tandem PotiNo

Push/PushNo

SolderlessNo

shaft typegrooved

Part TypeWiring Kit

TypeSwitcher

ColourSilver
