Mojotone 67 Q.Coil Hot Br. Pickguard TT

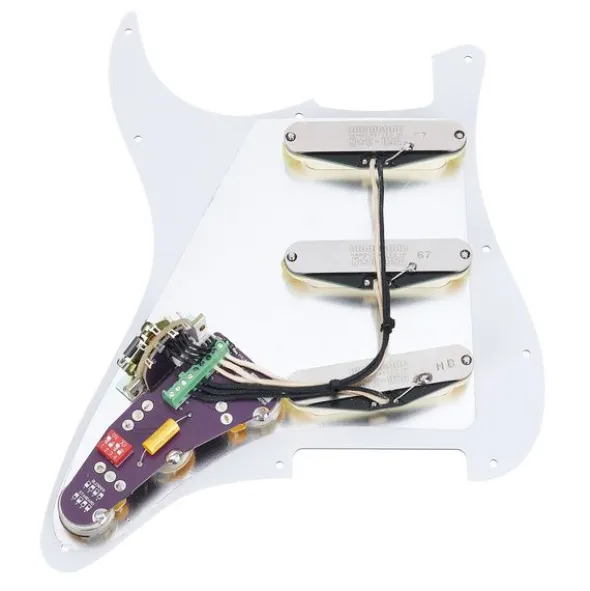

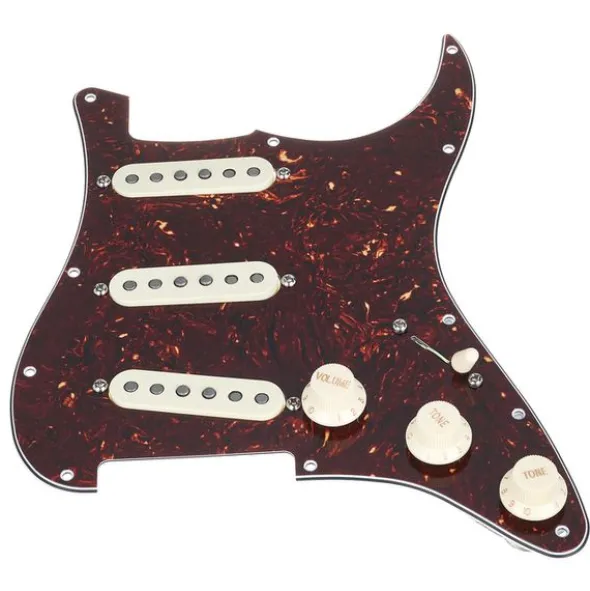

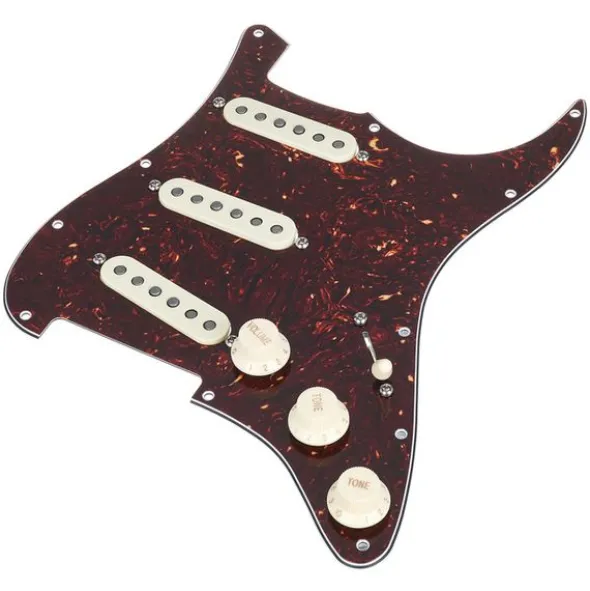

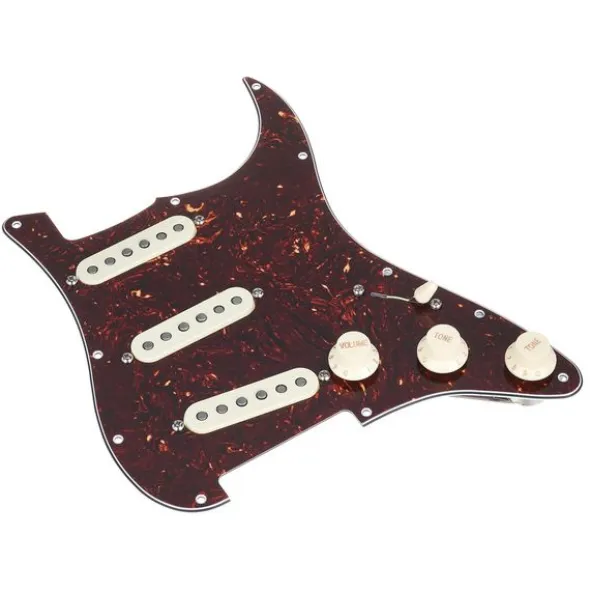

Pre-Wired Pickguard for ST-Style Electric Guitars

• No soldering required – simply attach and play
• 3-Ply standard 11 hole pickguard

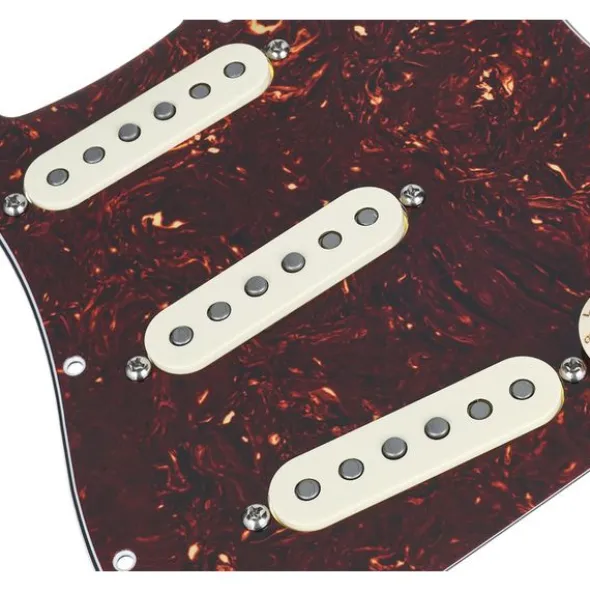

• 3 Noiseless single coils (bridge, middle, & neck)
• Manufactured in compliance with the current Vintage single coil attributes
• Matched resonance frequency and inductance in order to reproduce the frequency response and feel of conventional single coils
• Output: Vintage & High
• Hot pickup on the bridge with more bass and mids for a good balance between the positions and better sustain

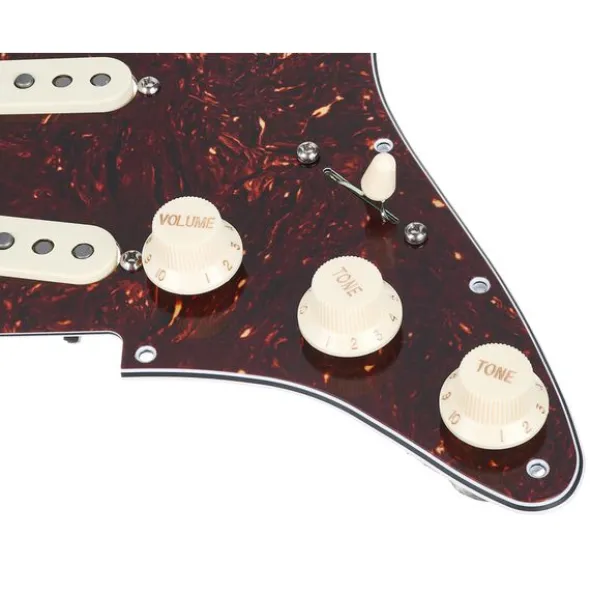

• Volume control with treble bleed
• Tone control for bridge pickup
• Tone control for mid and neck pickups

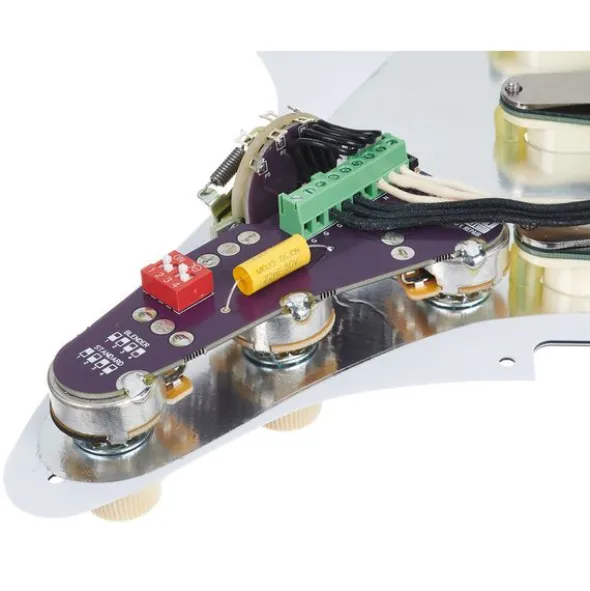

• 3 CTS 500k Custom split-shaft potentiometers (9.5 mm thread length)
• CRL 5-Way switch
• Switch positions: 1 – Bridge, 2 – Bridge & Middle, 3 – Middle, 4 – Middle & Neck, 5 – Neck

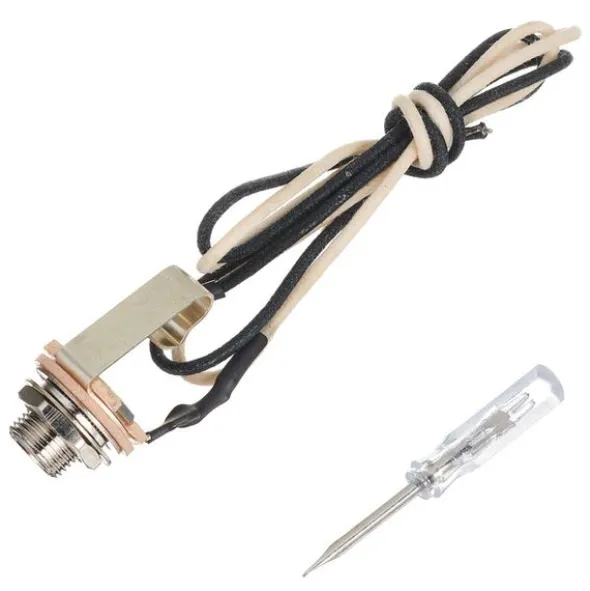

• Switchcraft mono input jack
• Vitamin “T” oil filled .047 uf capacitor
• Pre-tinned, cloth covered wire
• DC resistance (bridge): 11.6 kOhm
• DC resistance (middle): 5.6 kOhm
• DC resistance (neck): 5.6 kOhm
• Magnet material: AlNiCo 5
• Cap colour: Aged White
• S367Q375-PW-AWC-TP1
• Pickguard colour: Tortoise
• Made in the USA
