Mojotone 58 Quiet Coil HSS Pickguard BK

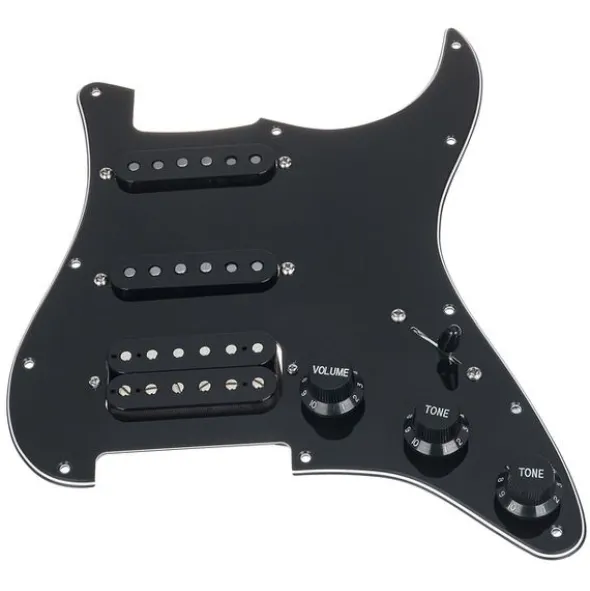

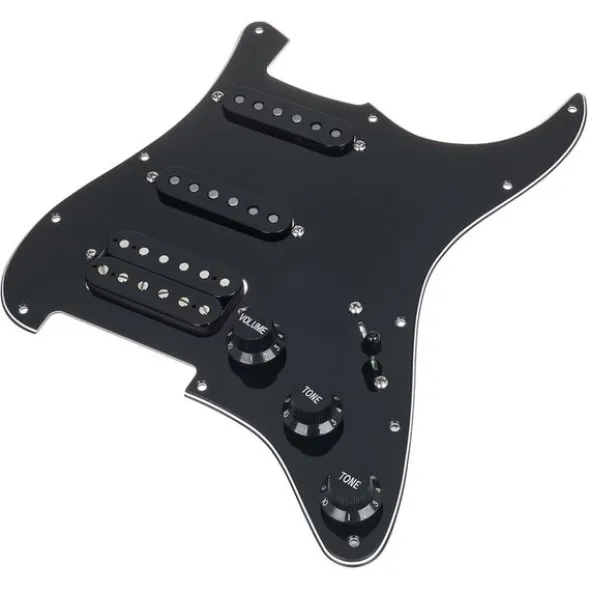

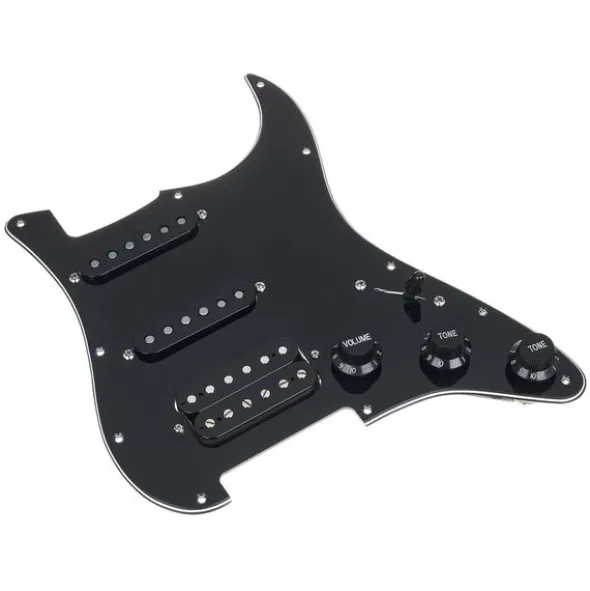

Pre-Wired Pickguard for ST-Style Electric Guitars

• No soldering required – simply attach and play
• 3-Ply standard 11 hole pickguard

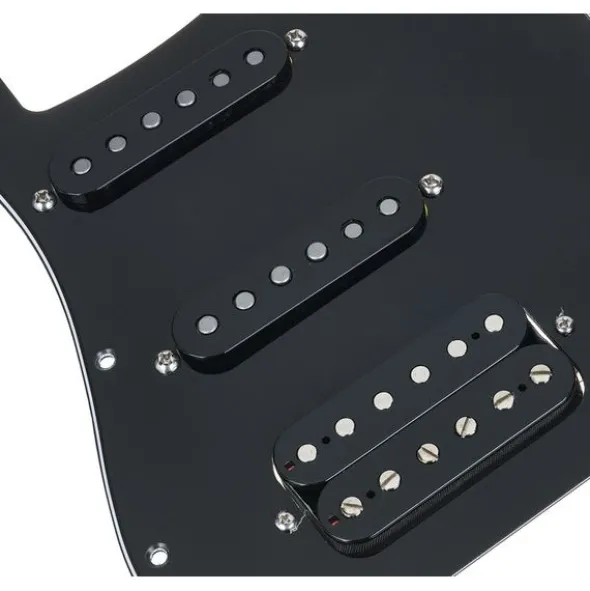

• 2 Noiseless single coils (middle & neck) and 1 humbucker (bridge) with F-spaced string spacing
• ’58 Quiet coils offer a hum-free vintage strat sound without ever compromising true single coil clarity or playing feel
• Special ’58 humbucker in the bridge position for creamy P.A.F. tones that cut through the ix
• Output: Vintage & Medium

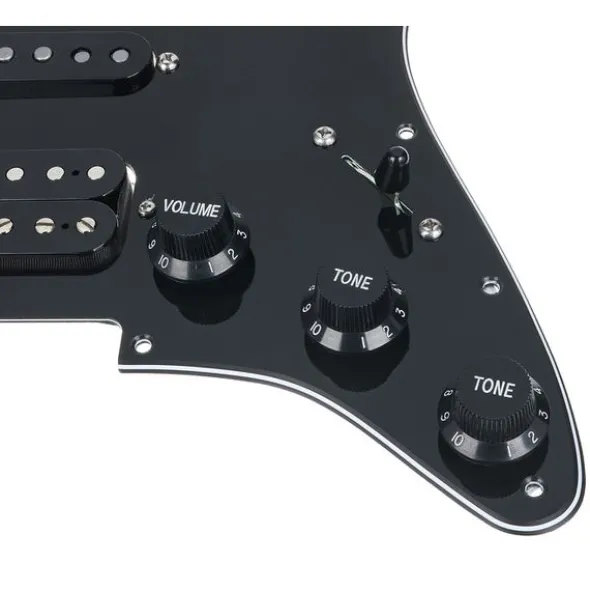

• Volume control with treble bleed
• Tone control
• Blender control can be added to the neck or bridge pickups at positions 1, 2, 4, and 5
• The humbucker is tapped in position 2 for authentic hollow single coil sound
• 3 CTS 500k Custom split-shaft potentiometers (9.5 mm thread length)
• CRL 5-Way switch
• Switch positions: 1 – Bridge, 2 – Bridge & Middle, 3 – Middle, 4 – Middle & Neck, 5 – Neck

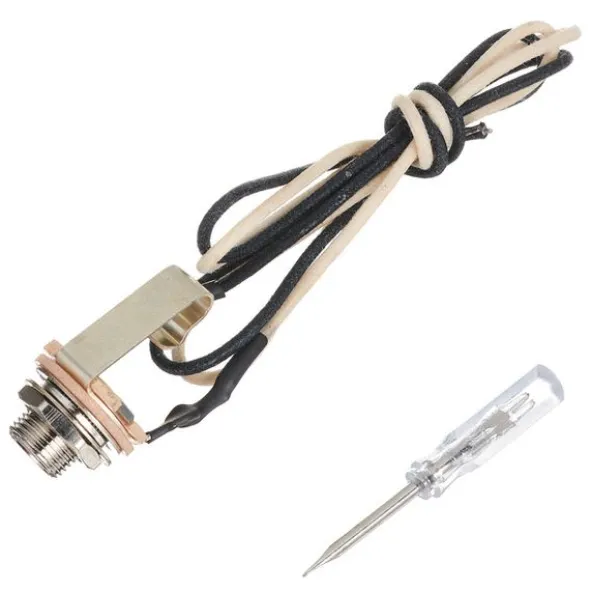

• Switchcraft mono input jack
• Vitamin “T” oil filled .047 uf capacitor
• Pre-tinned, cloth covered wire
• DC resistance (bridge): 8.3 kOhm
• DC resistance (middle): 5.9 kOhm
• DC resistance (neck): 5.9 kOhm
• Magnet material: AlNiCo 5
• Cap colour: Black
• Pickguard colour: Black
• Made in the USA
