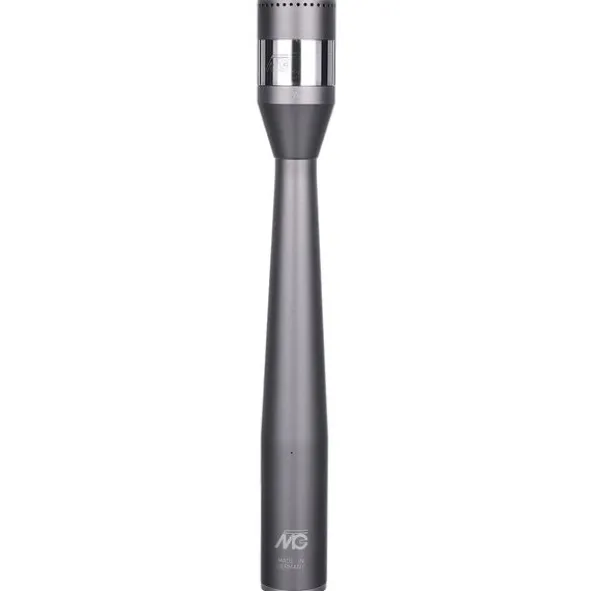

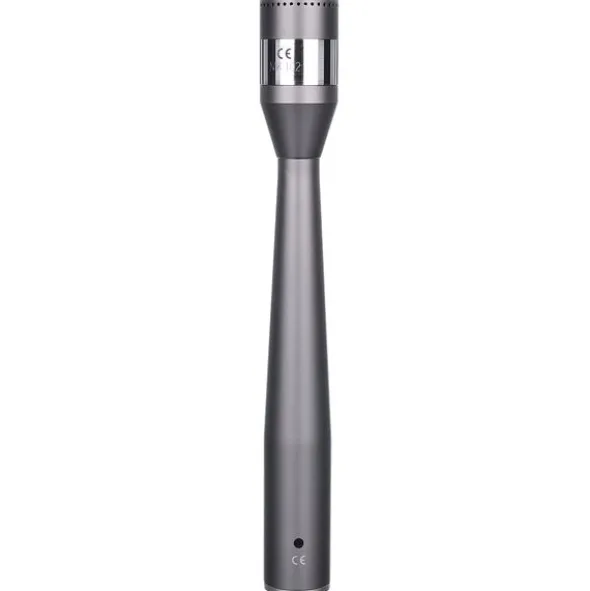

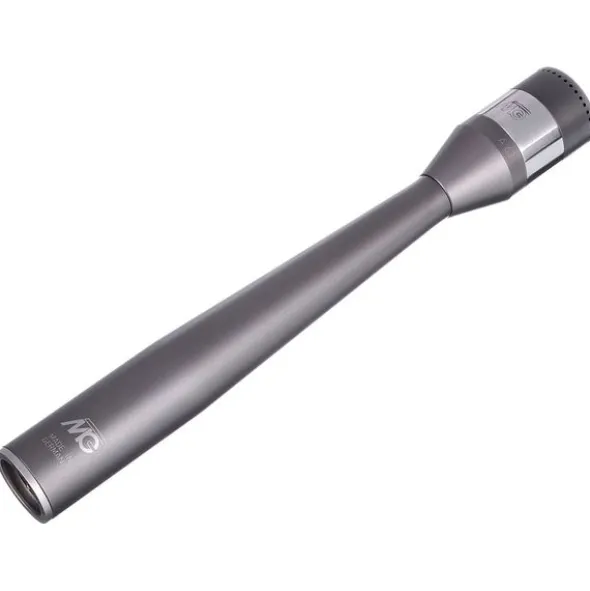

Microtech Gefell M 102

Small Diaphragm Condensor Microphone

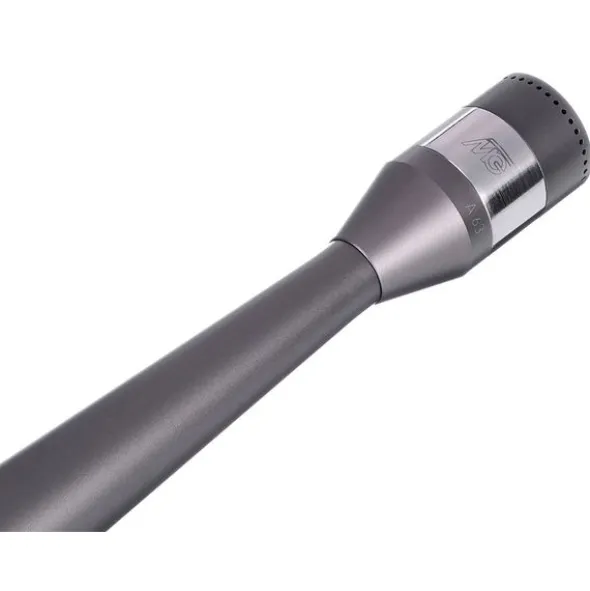

• 1″ nickel-diaphragm capsule derived from precision measurement microphone design, optimized for studio applications
• Ideal as a main microphone for recordings that should include a certain amount of the room response
• As a support for close-range miking of musical instruments, especially in the bass range, as well as for multi-channel miking.
• Low equivalent noise level and low-noise, high-output impedance converter in hybrid technology and transformerless circuit design for low equivalent volume and high operational reliability
• Colour: Dark Bronze

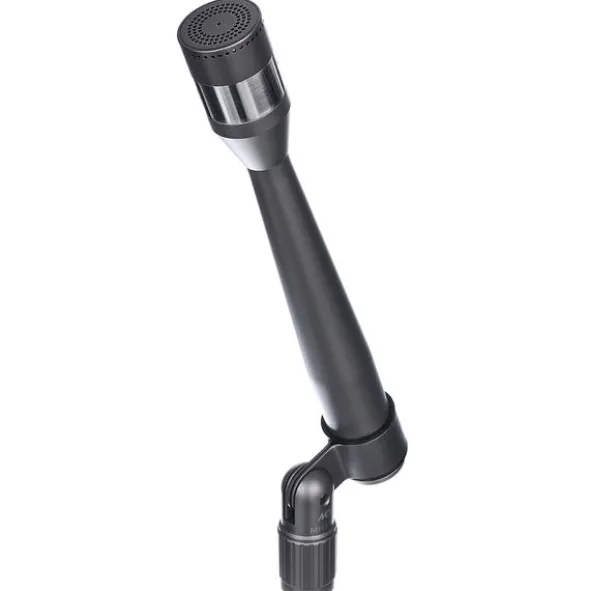

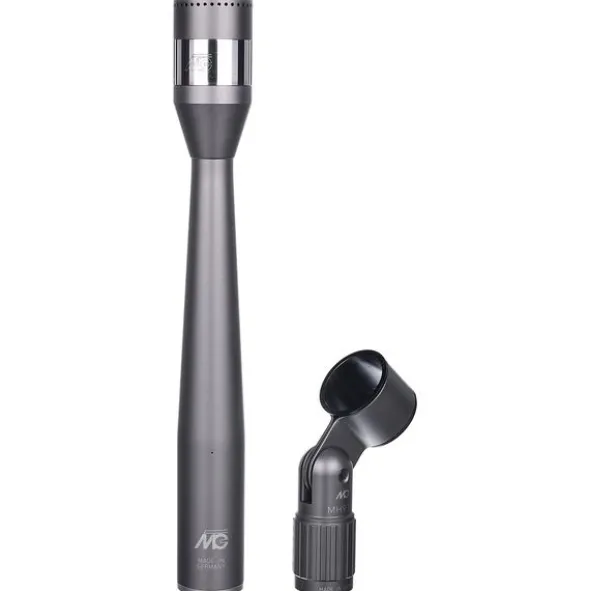

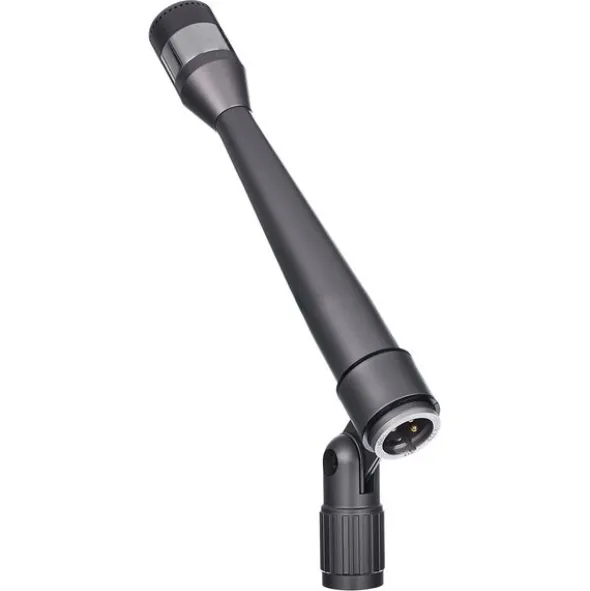

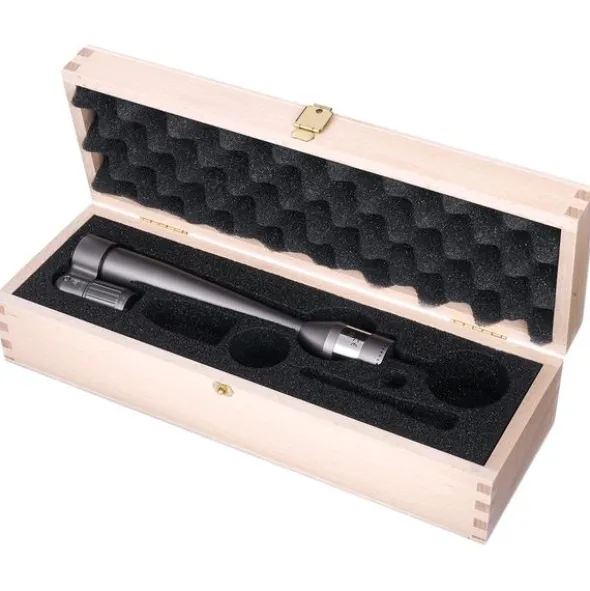

• Includes wooden case and microphone holder MH 93.1

Technical specifications:

• Polar pattern: Omnidirectional
• Acoustic operating principle: Pressure gradient transducer
• Frequency range: 20 – 20.000 Hz
• Sensitivity: 50 mV/Pa at 1 kHz
• Nominal impedance: 100 Ohm
• Equivalent noise level: 11 dB A-weighted
• Equivalent noise level: 83 dB A-weighted (relative to 1 Pa at 1 kHz)
• Maximum sound pressure level: 136 dB at 0.5% THD
• Dynamic range: 125 dB
• Power supply: 48V phantom power
• Current consumption: 5.5 mA

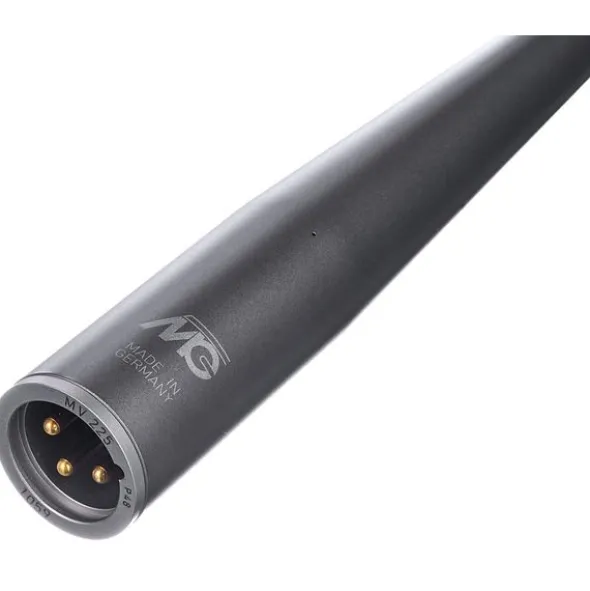

• Connector: XLR3M
• Dimensions (L x diameter): 180 x 21 – 23.8 mm
• Weight: 210 g
