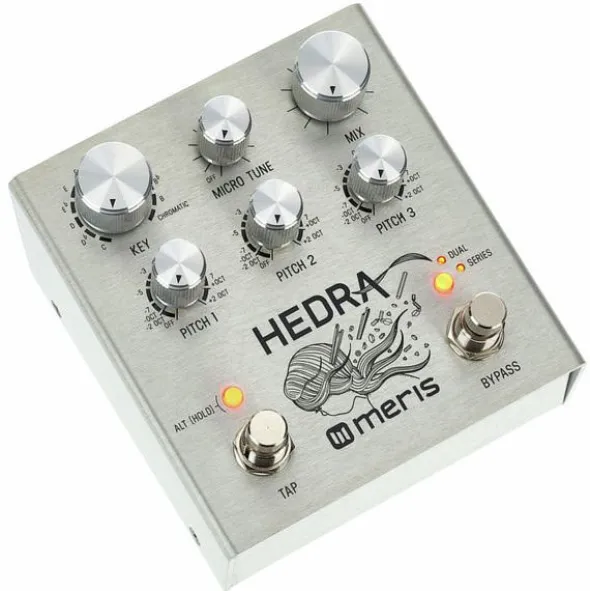

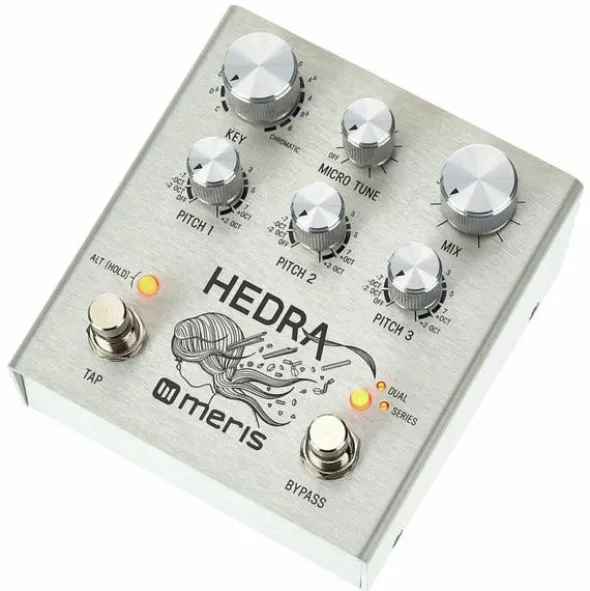

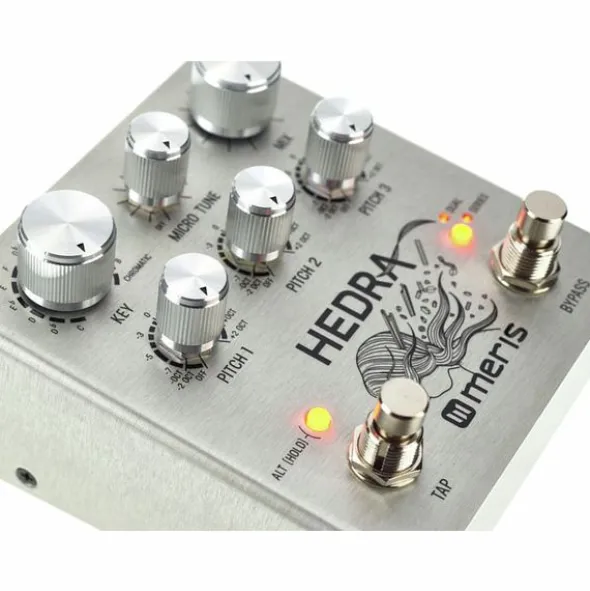

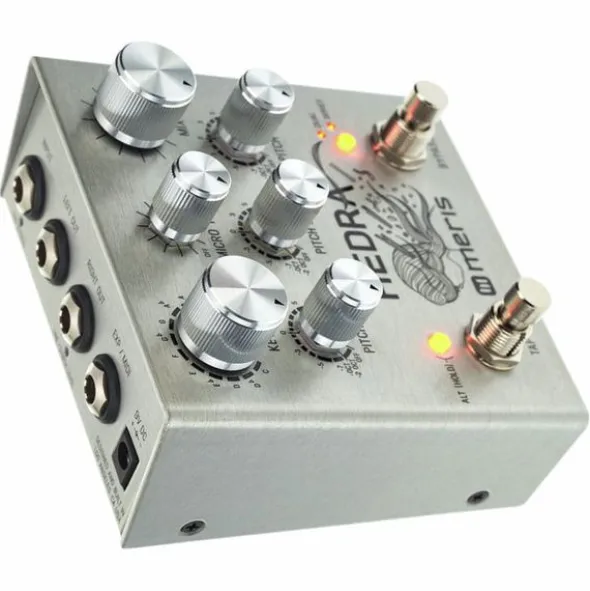

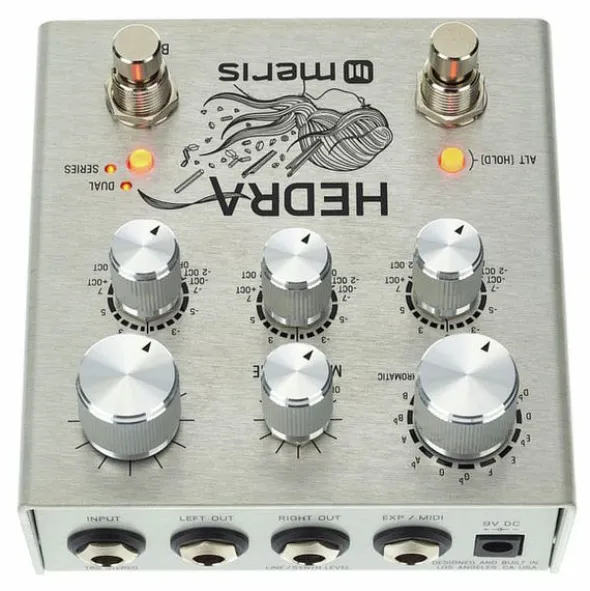

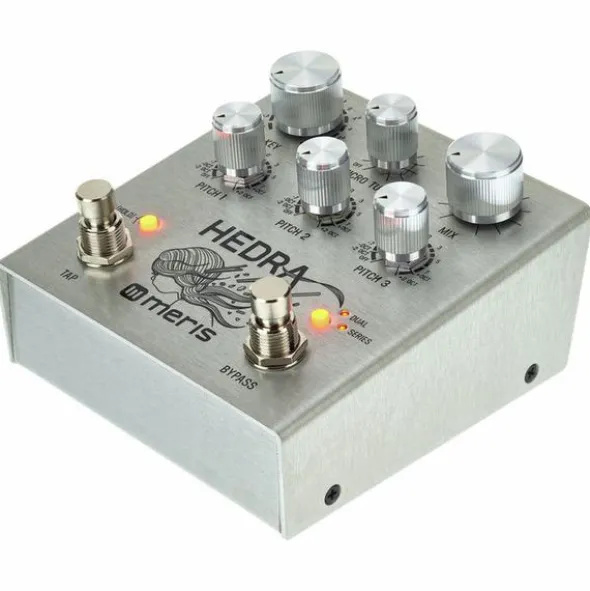

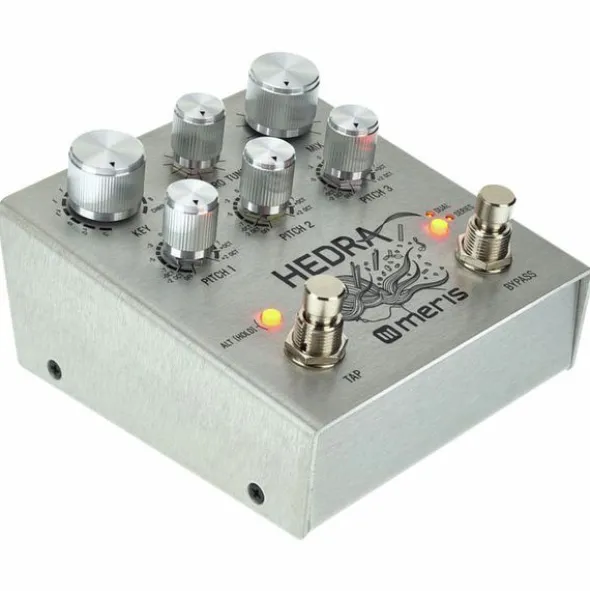

Meris Hedra Pitch-Shifter

Effect Pedal for Electric Guitar

• Pitch shifter
• 3 Harmony voices / delay lines with rhythmic time offset
• Tap Tempo function and synchronisation
• 12 Diatonic harmonies and chromatic pitch shifting
• Up to 16 presets via MIDI
• 24 Bit AD / DA with 32 bit floating point DSP
• Switchable headroom for guitar/line input level
• Tap Tempo functionality with separate temp increases for each voice
• Expression control possible for all effect parameters (also simultaneous)
• MIDI in / out / preset selection / external tap tempo available via EXP socket
• Analogue signal path for wet / dry mix
• Presets via external 4-preset switch (Meris Preset Switch, not included) or MIDI selectable
• Selectable bypass (True / Relay Bypass or Buffered)

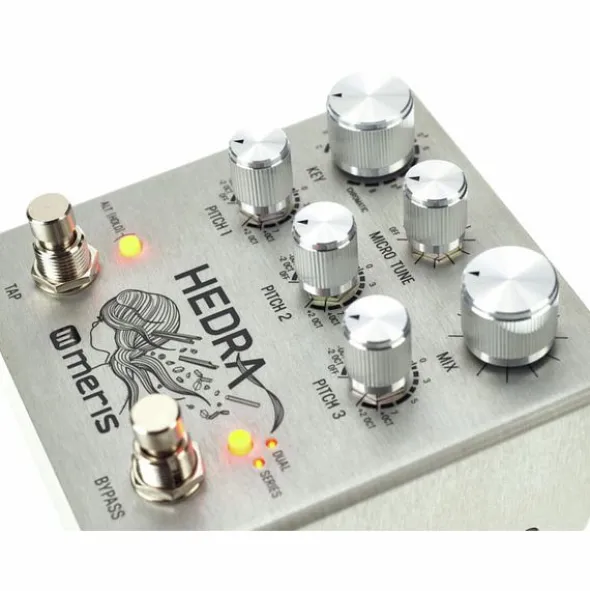

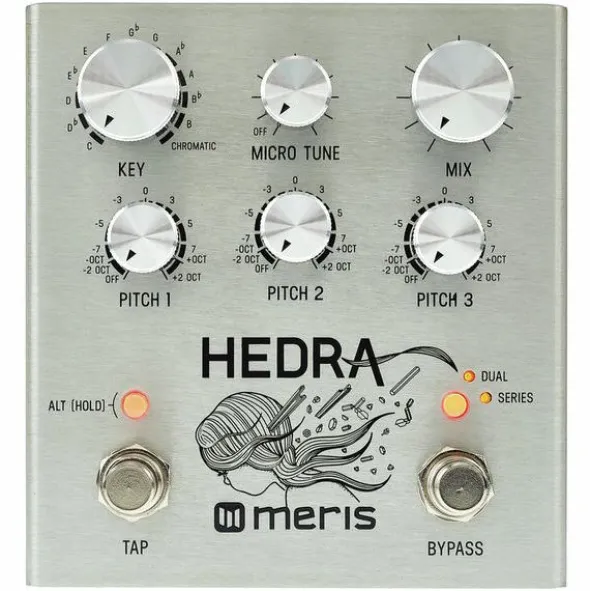

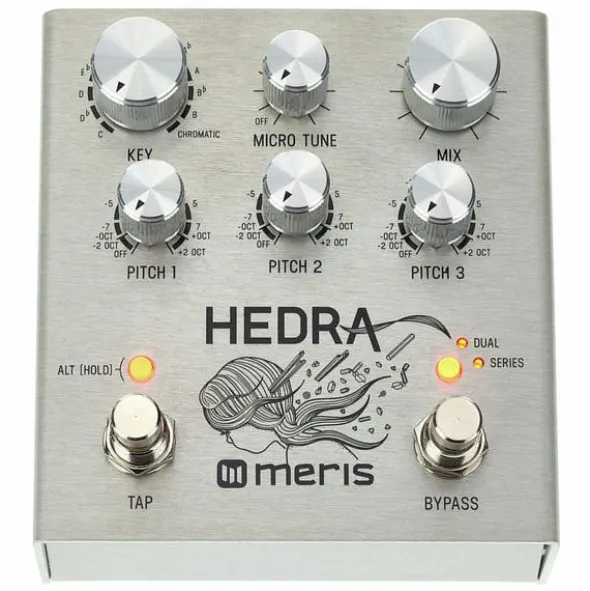

• Key, Micro Tune, Mix, Pitch 1, Pitch 2, and Pitch 3 knobs
• Alt (Hold) button for activating alternative controller functions
• Mode Button for selecting the delay line arrangement (Dual / Dual + Series / Series / Pitch Feedback)
• Bypass footswitch
• Tap footswitch
• Status LEDs
• Metal housing

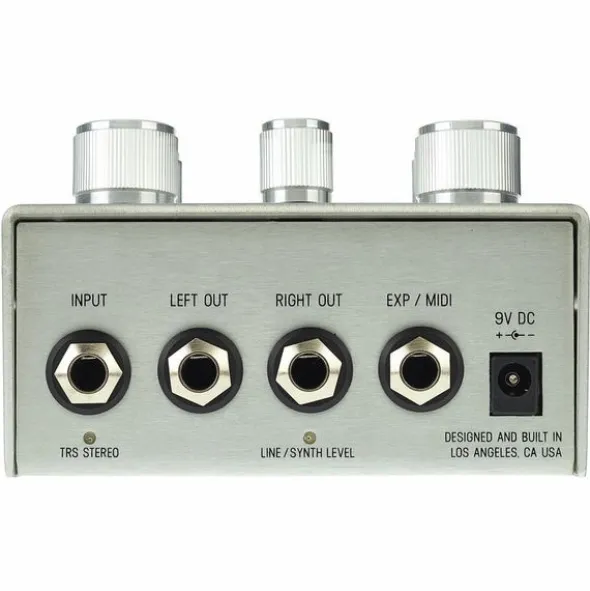

• 6.3 mm TRS input jack (switchable stereo / mono)
• 2x 6.3 mm mono latches (L / R) outputs
• 6.3 mm TRS Exp / Tap Tempo / External Footswitch / MIDI Jack
• Power supply via 9 V DC power supply unit with 2.1 x 5.5 mm barrel connector and polarity (-) inside (Power adapter not included)
• Current consumption: 150 mA
• Dimensions (W x D x H): 107 x 115 x 67 mm
• Weight: 410 g

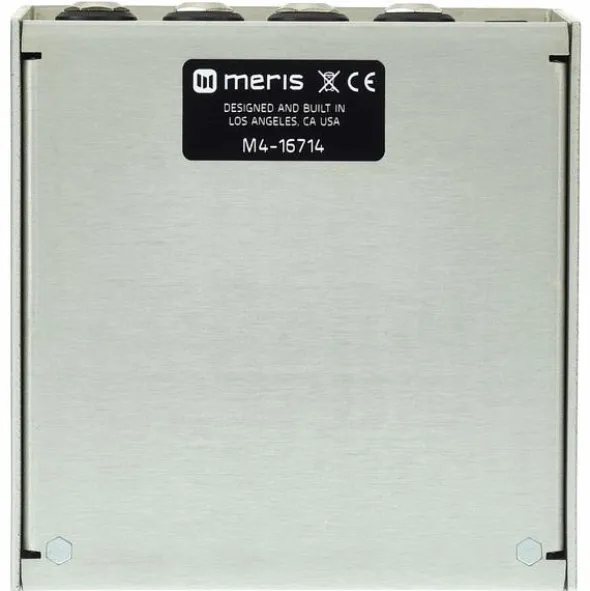

• Made in USA

Note: Battery operation is not supported.

Note: Register your product at www.w-distribution.com/Warranty to extend the warranty to 4 years.
