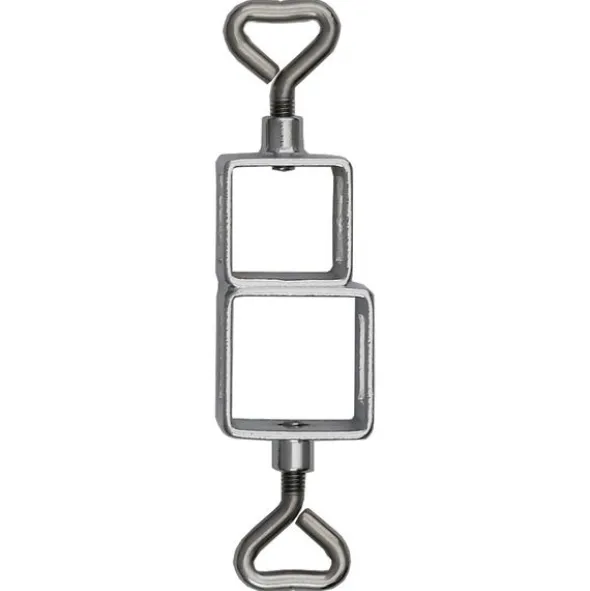

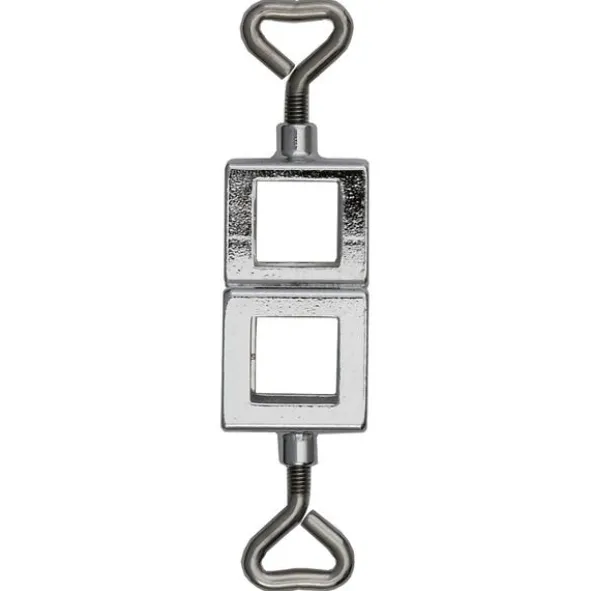

Kolberg 117 Twin Adjusting R 20/25/30

Multi-Functional Double Adjusting Ring

• For connecting square tubes 20 mm, 25 mm and 30 mm
• Adapter for the 300 series combination stand system (square, 30 mm)
• In addition, round tubes with a diameter of 20 mm can also be clamped in the 20 mm square mounting hole
• 1. Surface: Mounting holes square 20/square 20 mm
• 2. Surface: Mounting holes square 25/square 30 mm
• For connecting: – 1 square tube 20 mm and 1 square tube 25 mm (90° offset), – 1 square tube 20 mm and 1 square tube 30 mm (90° offset), – 1 square tube 30 mm and 1 square tube 25 mm (parallel), – 2 square tubes 20 mm (parallel), – 2 main support tubes Ø 20 (parallel)
• All combination stand parts are made of high-quality steel and have a high-gloss chrome finish

Mounting hole square 20 mm suitable for e.g.:

• Basic holder 240, 240L, 240S
• Cross tube 223 – 227, 122, 122S
• T-beam 114K, 114L, 114KS, 114LS
• Cross tube / distance bar 225
• Main support tube 202 – 209

Mounting hole square 25 mm suitable for e.g.:

• Cross tube 125, 125S
• Distance bar 222S, 225G
• Angled insert pipe 113

Mounting hole square 30 mm suitable for e.g.:

• Support tube 112
• Cross tube (300 series) 320 – 330Z
• Angle brackets (300 series) 336 – 339
