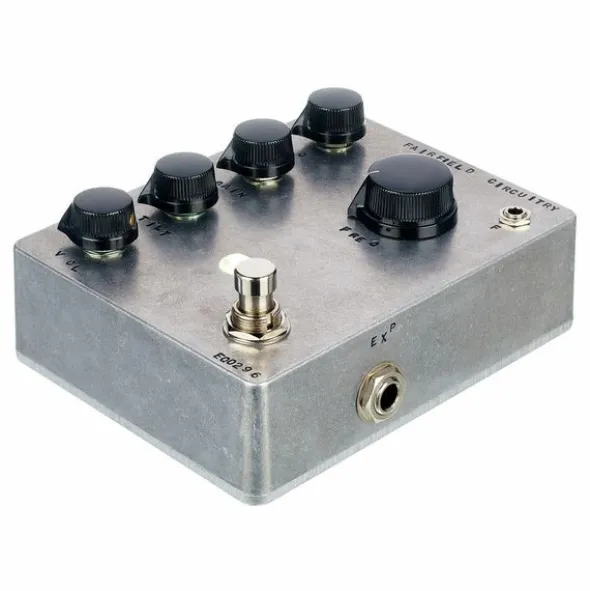

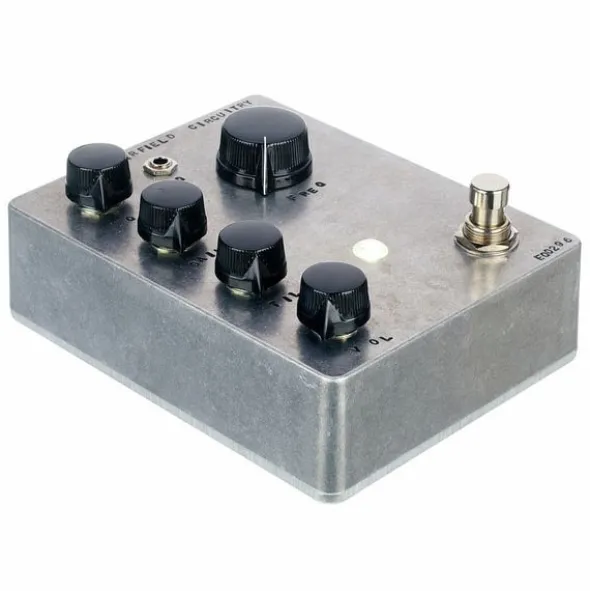

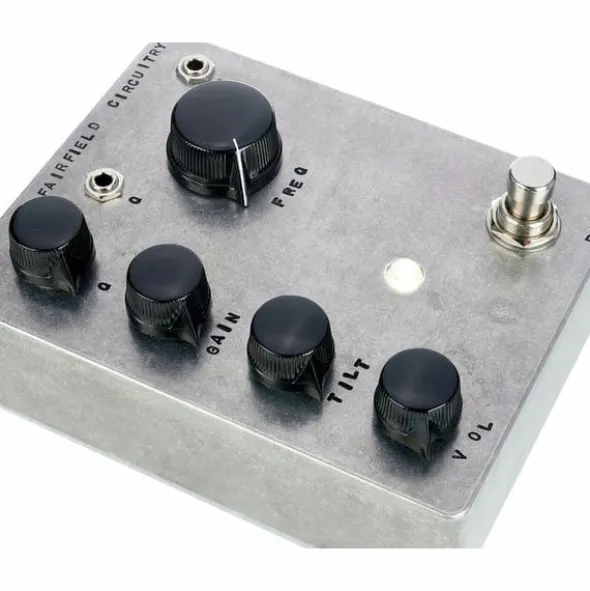

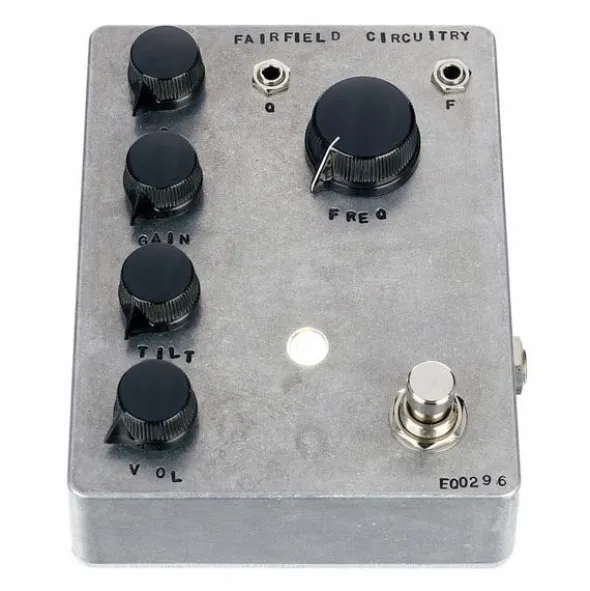

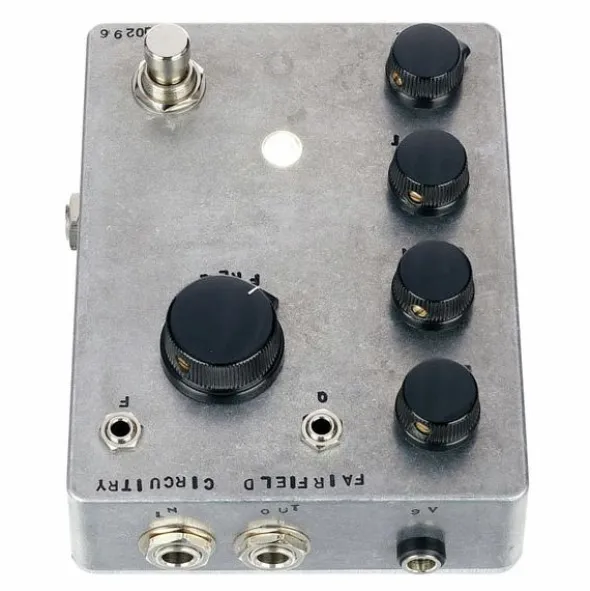

Fairfield Circuitry Long Life Parametric EQ

Effect pedal for electric guitar, electric bass & synthesizer

• Single-band parametric equaliser with some extras
• The frequency response can be tilted variably around the centre frequency from low-pass to high-pass
• An expression pedal can control the centre frequency
• Fully variable Q that switches to self-oscillation
• CV inputs for resonance (Q) and frequency (F)
• Synthesiser interface with V/octave scaling

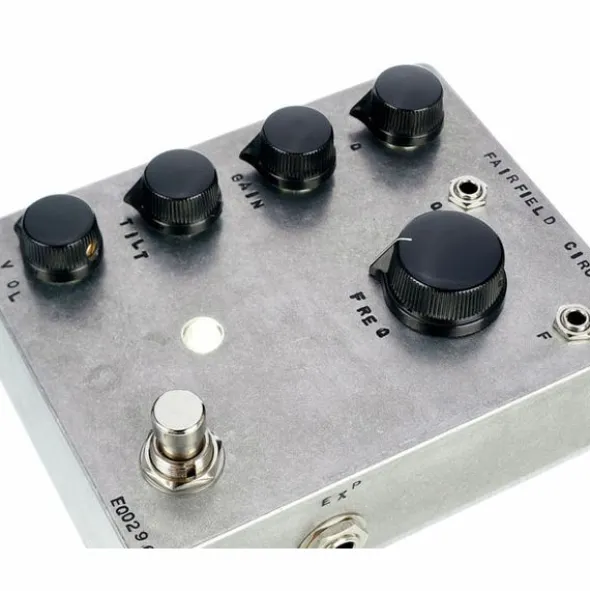

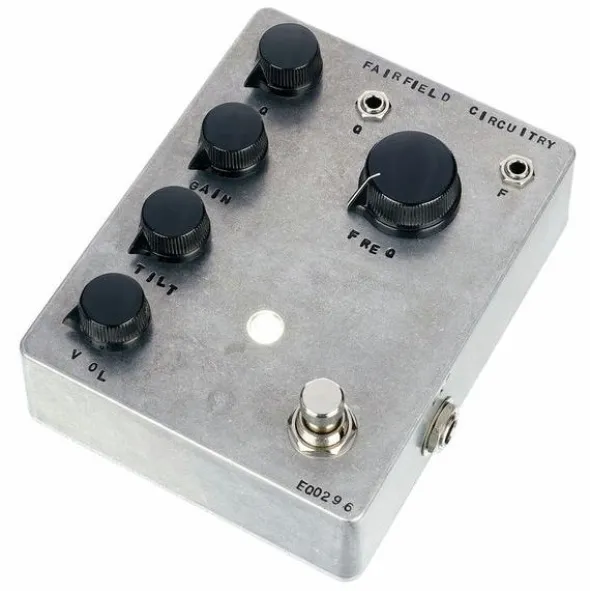

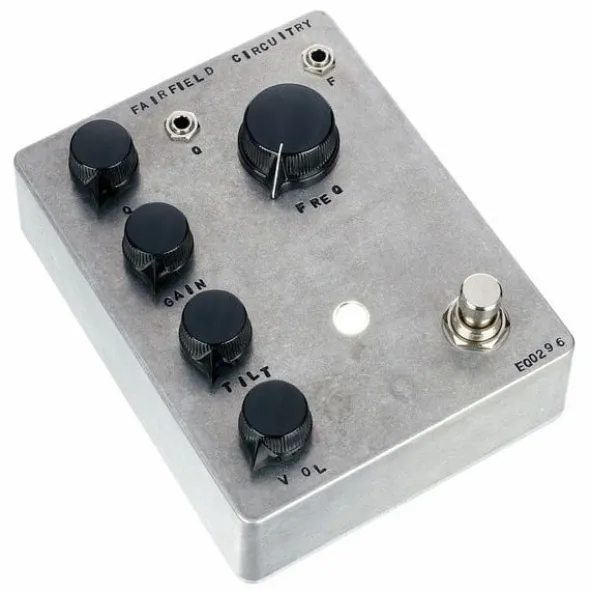

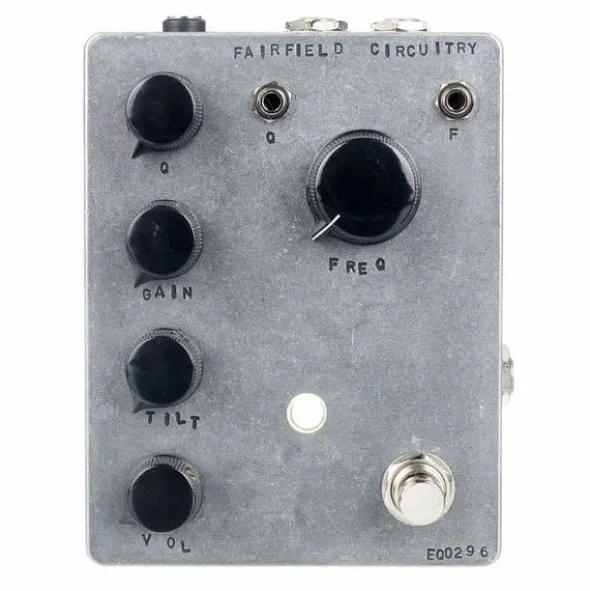

• Controls: Freq, Q, Gain, Tilt, Vol
• LED: Effect On
• Footswitch: Effect Bypass

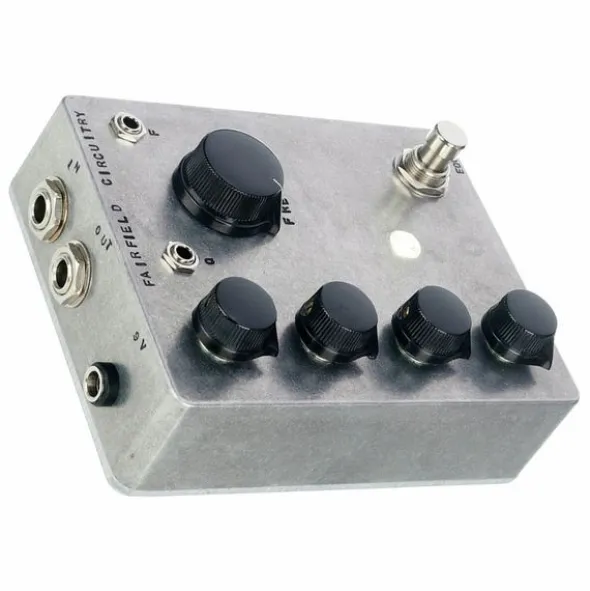

• Input: 6.3 mm jack
• Output: 6.3 mm jack
• Power supply connection: Barrel connector 5.5 x 2.1 mm, negative polarity inside
• Power consumption: 150 mA
• Power supply via 9 V DC mains adapter (not included in delivery – suitable mains adapter: Art.409939)
• True bypass
• Dimensions (W x D x H): 95 x 122 x 50 mm
• Weight: 360 g
• Made in Canada

Note: Battery operation is not supported.
