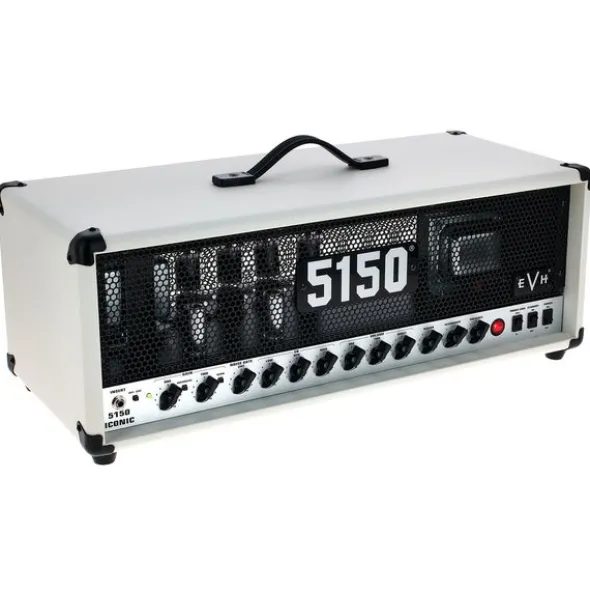

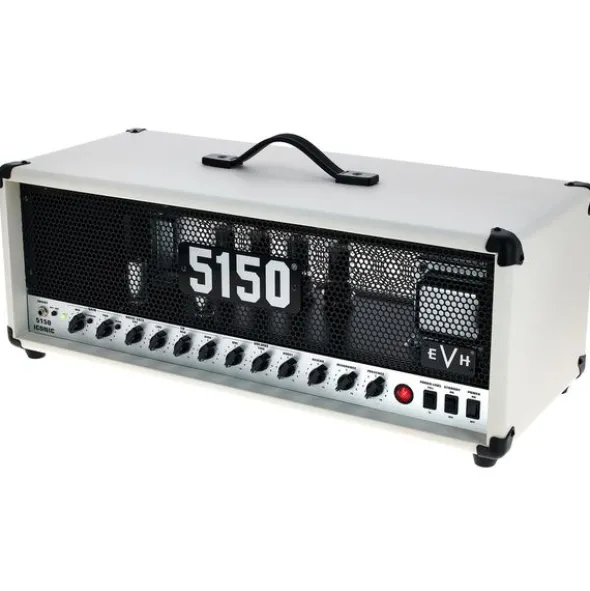

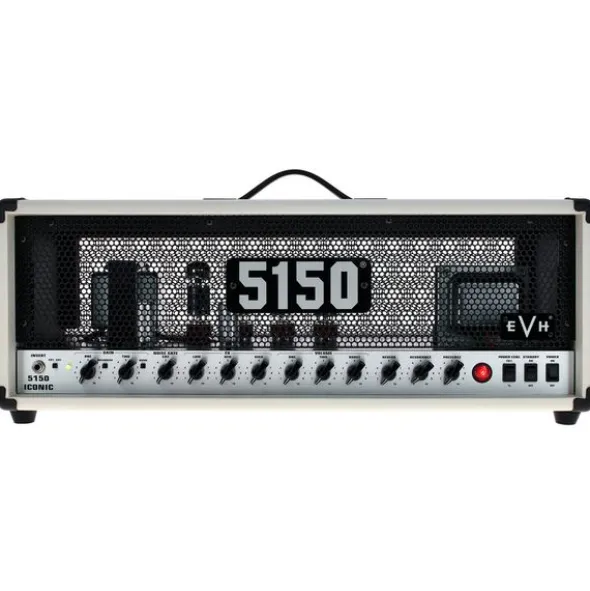

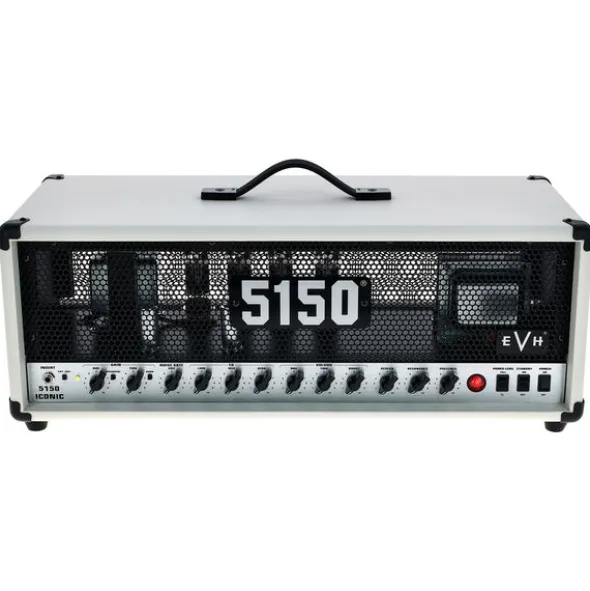

Evh 5150 Iconic 80W Top IV

Amp Head for Electric Guitar

• Two channels
• Power: 80 watts
• Preamp tubes: Two ECC83S (12AX7)

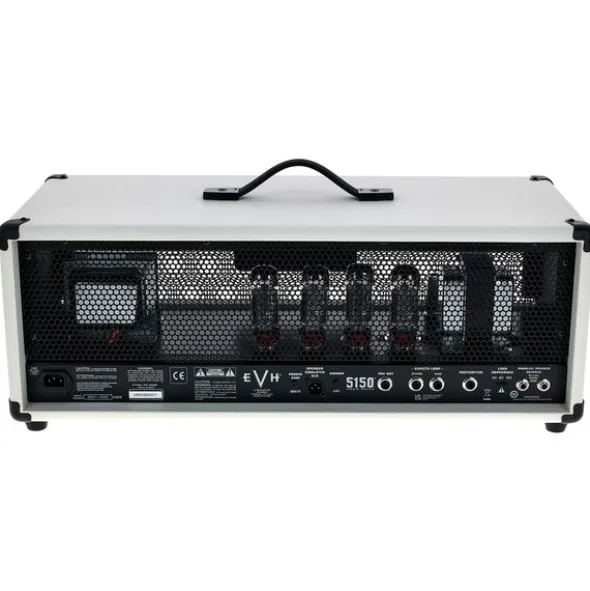

• Power amp tubes: Four 6L6
• Channel 1: Gain control with overdrive switch
• Channel 2: Gain control with burn switch and noise gate

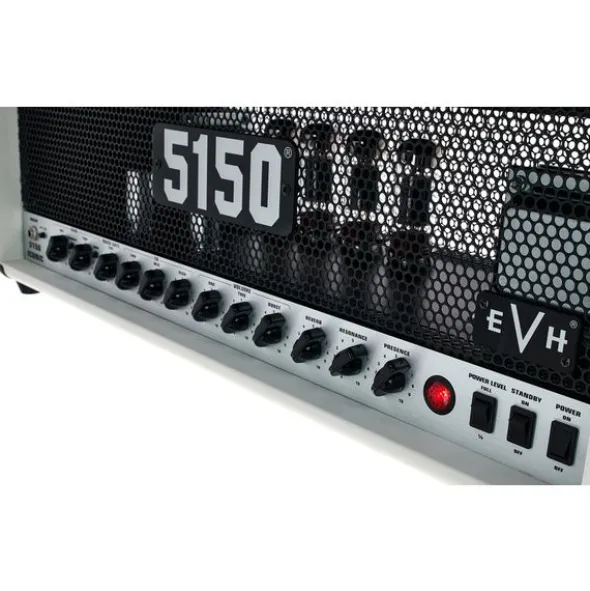

• Controls for low, mid, high and volume, boost, reverb, resonance and presence for channels 1 + 2

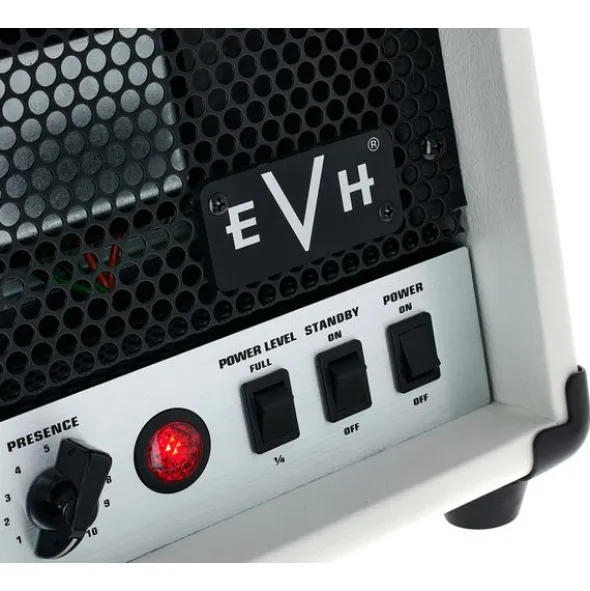

• Switches for power, standby, power level (full / 1/4), power amp mute, ground and load impedance (4 / 8 / 16 ohms)
• Effects: Reverb
• Effect loop send/return: 6.3 mm jack

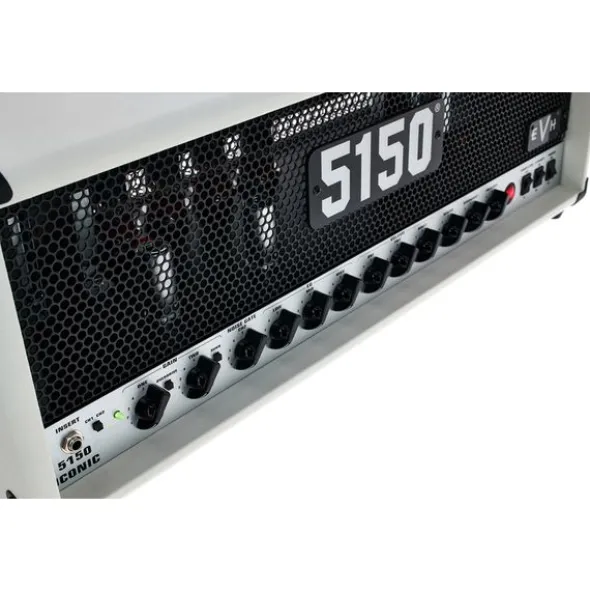

• Instrument input: 6.3 mm jack
• Pre out: 6.3 mm jack
• Footswitch connection: 6.3 mm jack
• Recording output with speaker simulation: XLR
• Dimensions (W x D x H): 686 x 294 x 267 mm
• Weight: 22 kg
• Colour: White

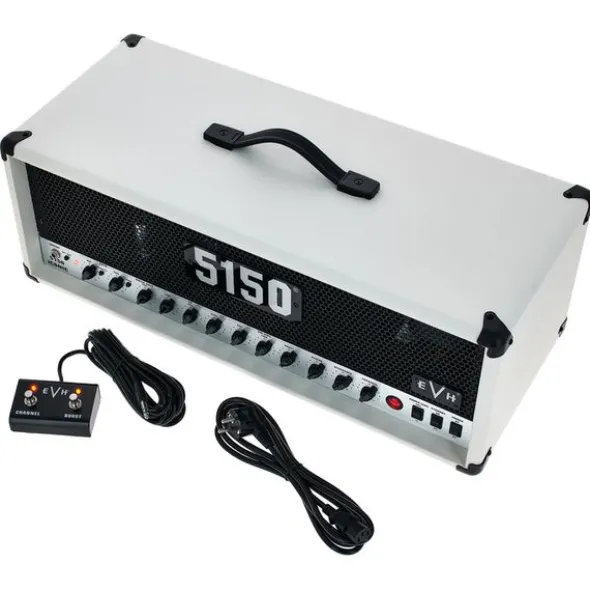

• Includes 2-way footsswitch
