EarthQuaker Devices Easy Listening Amp Simulator

Analogue Stereo Amp and Speaker Simulator

• Fully analogue signal circuit
• True stereo signal processing
• A mono signal (via the left input) can be expanded into a wide stereo image
• 2 x 6.3 mm TS jack inputs, Left / Right

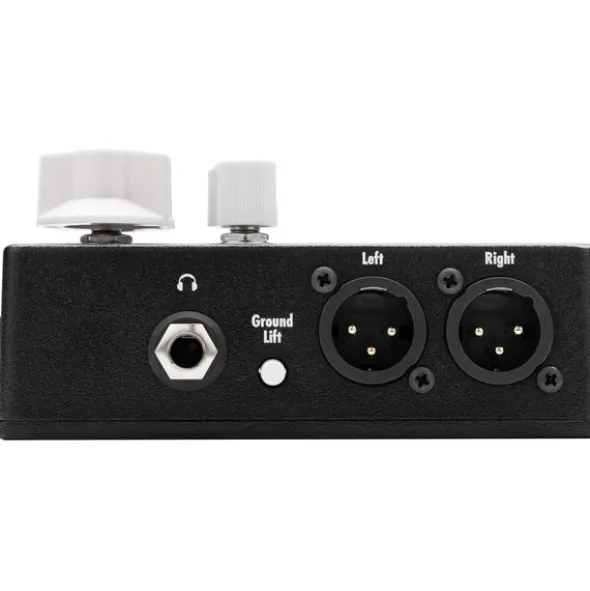

• 2 x XLR outputs, Left / Right
• 6.3 mm TRS stereo headphone output
• 6.3 mm stereo TRS jack aux input
• The aux signal path bypasses the preamp and speaker/cabinet simulation
• Level control
• The Aux control regulates the Aux input
• 3-band EQ: Bass, Middle, Treble
• Bass Cut / Boost up to 500 Hz
• Middle Cut / Boost from 500 Hz to 2 kHz
• Treble Cut / Boost from 2 kHz
• On/Off footswitch
• Status LED
• Input impedance: 1 megohm
• Aux input impedance: 1 megaohm
• Headphone output impedance: 10 ohms
• XLR output impedance: 100 ohms
• Power supply via optional 9V DC power supply
• 2.1 x 5.5 mm barrel connector, centre negative
• Power consumption: 200 mA
• Dimensions (L x W x H): 127 x 69.9 x 63.5 mm
• Weight: 313 g
• Made in USA
