DSM & Humboldt Simplifier Bass Master

Effect Pedal for Electric Bass

• Everything you need to go directly into an FOH (Front of house) or recording mixer
• Versatile pre-amp with three modes (Clean, Comp, Hot), Gain, Level and a four-band EQ
• Parallel signal routing with selectable LPF (500 Hz, Off, 100 Hz)
• Dual FX Loop (with Pre-Fx Loop and Main-Fx Loop) and a cabinet simulation with three voicings: 8x 10″ 1 x 15″ & 4x 10″ with type selection and resonance controls
• LED: On
• Input: 6.3 mm jack

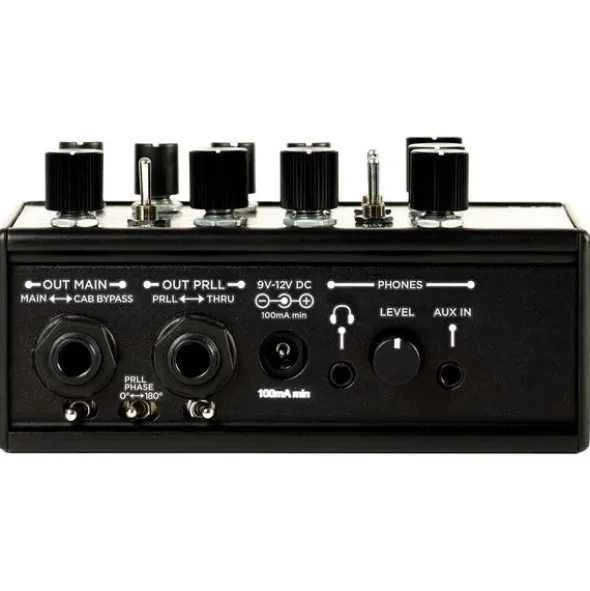

• Main output: 6.3 mm jack
• Parallel output: 6.3 mm jack

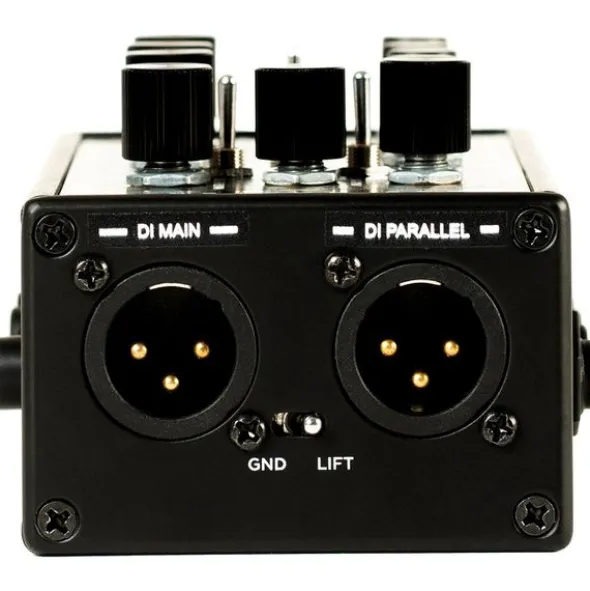

• DI parallel: XLR
• DI main: XLR

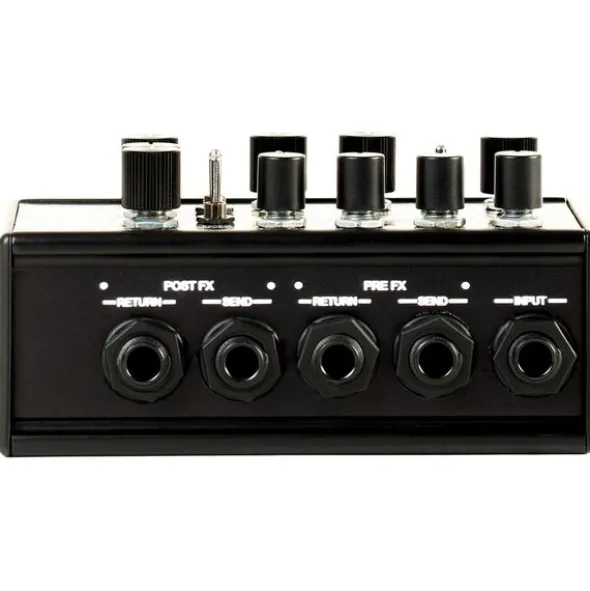

• Pre FX Send & Return: Two 6.3 mm jacks
• Post FX Send & Return: Two 6.3 mm jacks
• Aux input: 3.5 mm stereo jack
• Headphones: 3.5 mm stereo jack
• Power supply connector: Barrel connector 5.5 x 2.1 mm, centre negative
• Power consumption: 100 mA
• Power supply with a 9 – 12 V DC power adapter (not included, suitable power supply: Art. 409939)
• Dimensions (W x D x H): 115 x 65 x 55 mm
• Weight: 430 g
• Made in Chile

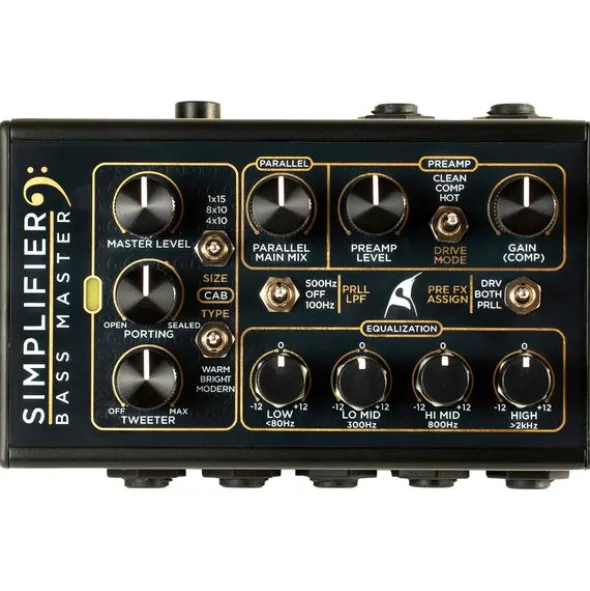

Controls:

• Preamp: Gain (Comp), Preamp Level
• Parallel: Main Mix
• Cab: Master Level, Porting, Tweeter
• Equalization: Low, Low Mid, High Mid
• Phones level

Switches:

• Preamp Drive Mode (Clean, Comp, Hot)
• Parallel LPF: 500 / Off / 100 Hz
• Pre FX Assign (Drv, Both, Parallel)
• Cab size: Four 10″ / eight 10″ / one 15″
• Speaker Colour: Warm / Bright / Modern
• Out Main (Main / Cab / Bypass)
• Out Parallel (Parallel/Thru)
• Parallel Phase
• Ground lift

Note: No battery operation possible

Disponível desdeMaio 2025

número de artigo613302

unidade de venda1peça(s)

DesignFloorboard

TubesNo

Amp ModelingNo

Integrated EffectsYes

Headphone OutputYes

Direct OutYes

MIDI Connector(s)No

Integrated Expression PedalNo

Connections for Pedals or SwitchesNo

Aux InputYes

Integrated TunerNo

USB ConnectionNo

Effect TypesSpeaker Simulation

Channels1

Active / PassiveActive

Gnd/Lift switchableYes

Speaker SimulationYes
