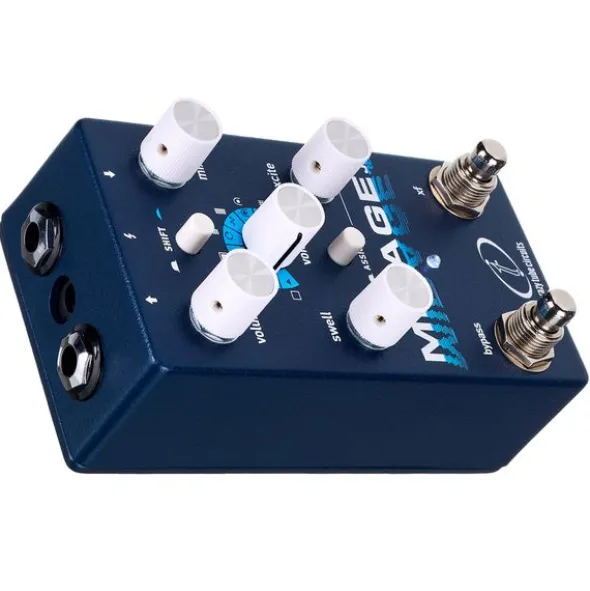

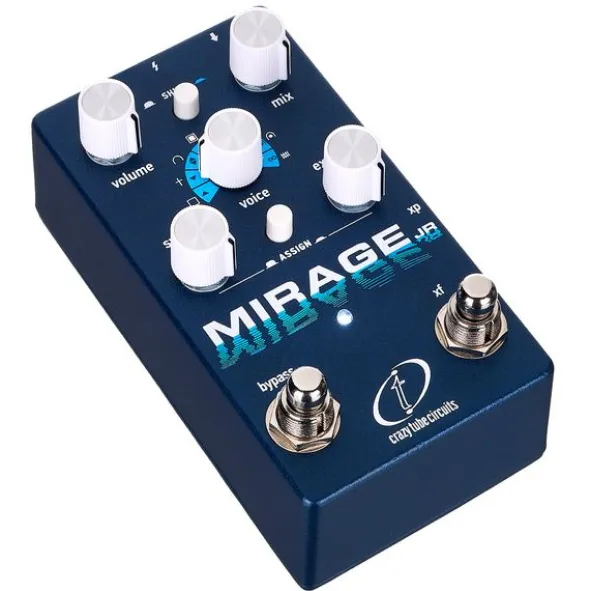

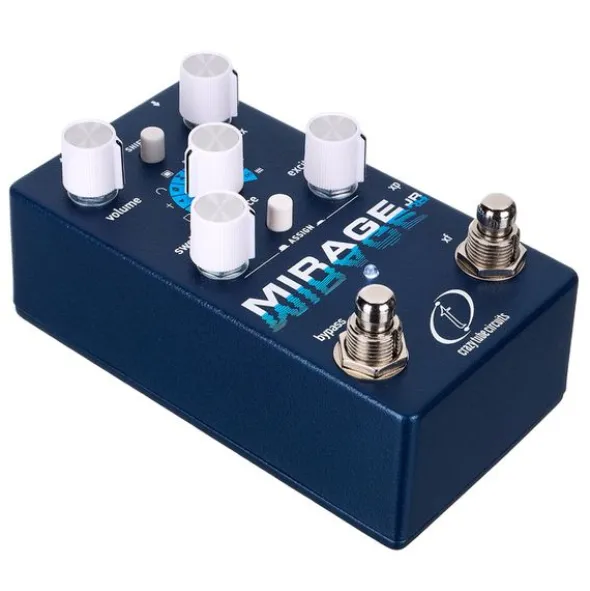

Crazy Tube Circuits Mirage Junior

Effect Pedal for Electric Guitar

• High-end mono reverb
• 16 reverb algorithms
• Divided into two intuitive banks: Vintage/Classic and Ambient/Experimental
• Studio-quality signal path with high headroom, clarity and detail
• Analogue dry signal path
• Assignable expression footswitch and external expression pedal input
• Internal switches for selecting bypass and mix mode
• Direct, readable user interface for immediate creative results – no menus to navigate
• Click-free true bypass design via high-quality relay or buffered bypass with decaying reverb
• Power-up Bypass / Engage Preset function

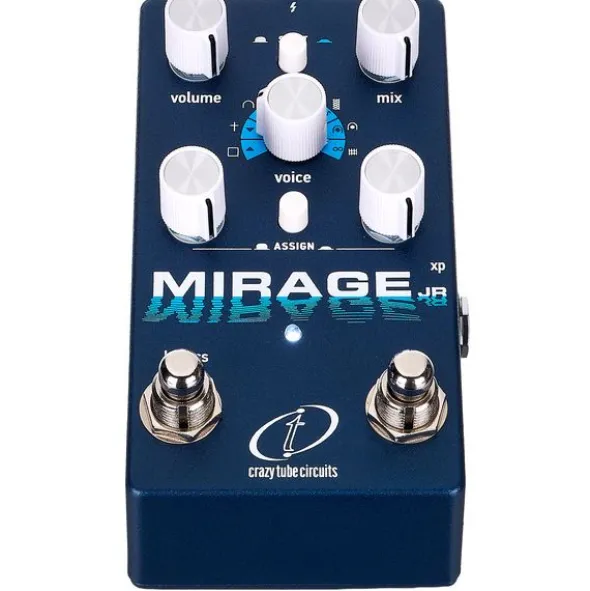

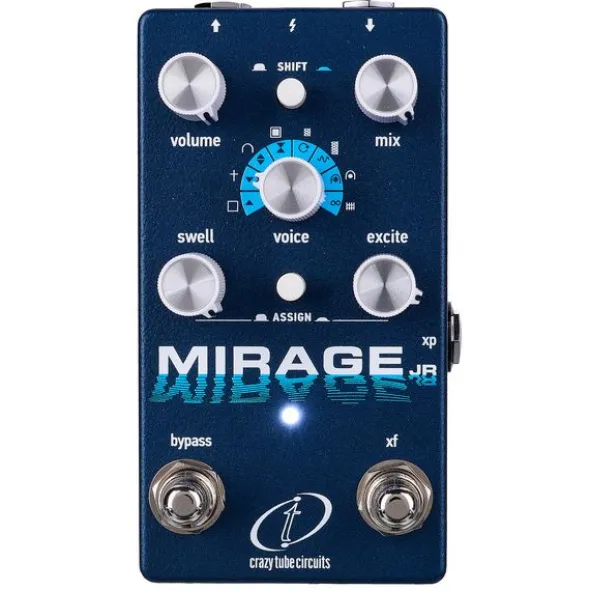

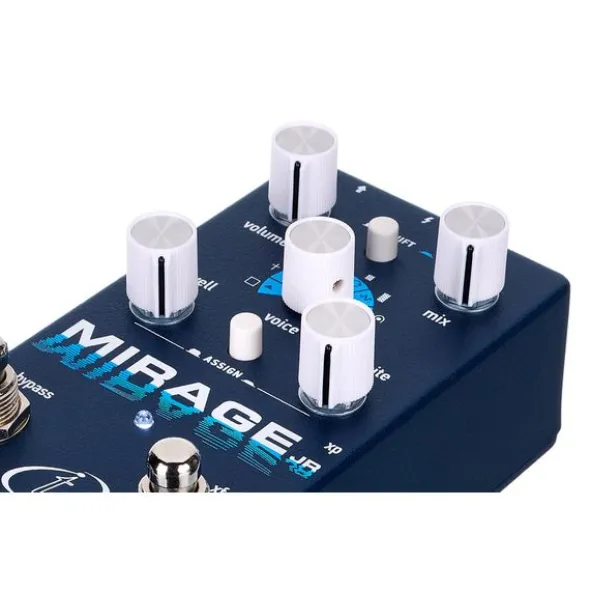

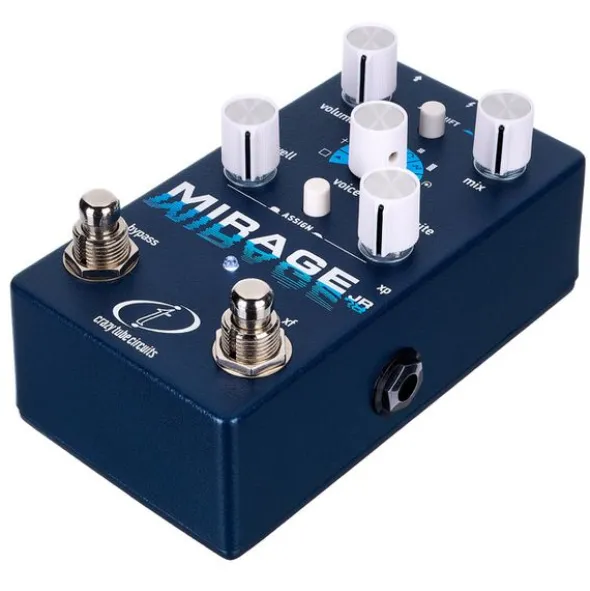

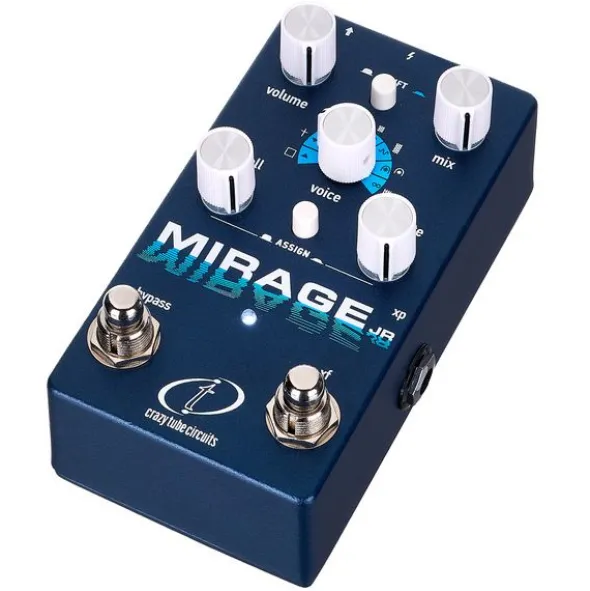

• Controls: Mix Volume, Swell, Excite, Voice
• Shift switch for preset selection, selects the level for the volume control
• Assign switch for Expression

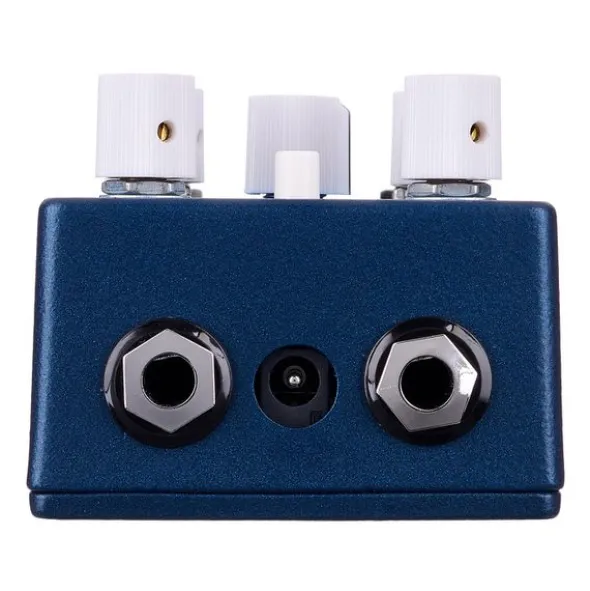

• Connectors on the top (except ext. expression)

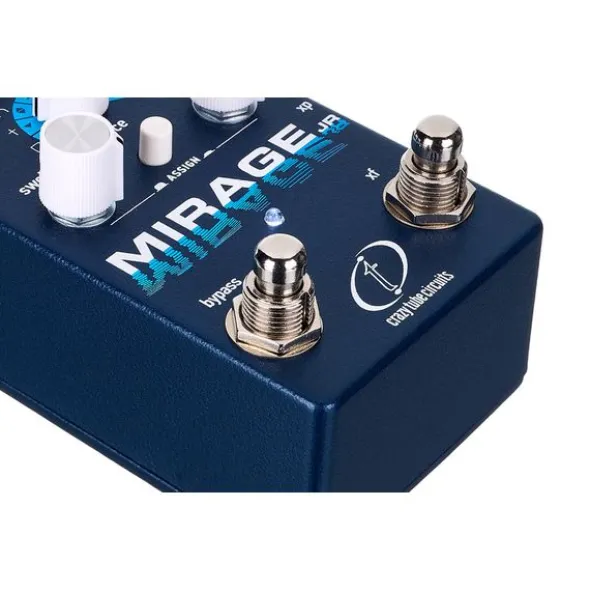

• Footswitch: Bypass, XF
• 6.3 mm jack input
• 6.3 mm jack output
• XP (Expression) 6.3 mm jack

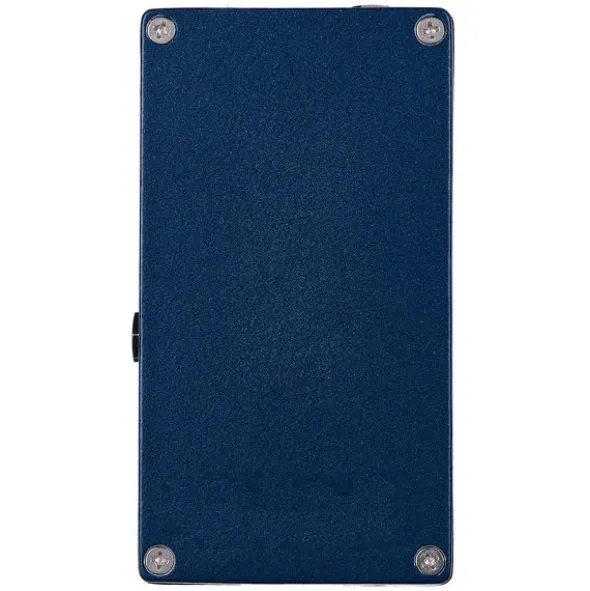

• Dark Abyss Blue die-cast housing
• Dimensions: (D x W x H): 12.4 x 6.9 x 5.8 cm
• Maximum power consumption: 115 mA
• Required power supply: 9 V DC (2.1 mm x 5.5 mm, centre negative)
• Weight: 337 g
• Made in Greece
