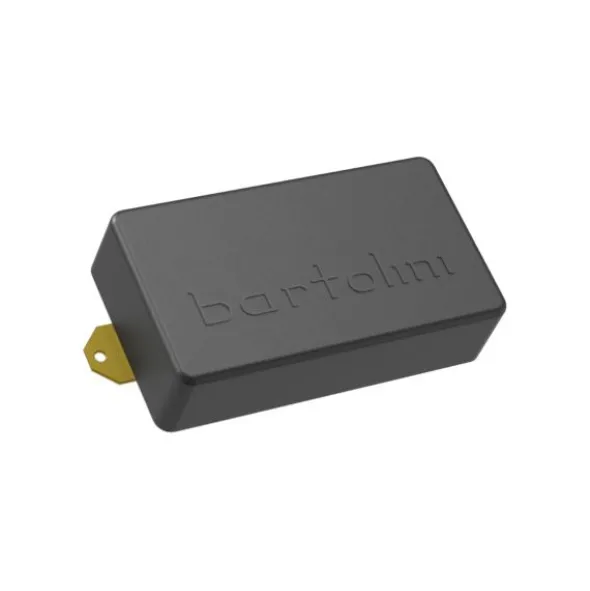

Bartolini Imbalanced Coils 1 C-BK B

Pickup for Electric Guitar

• Passive humbucker with two coils in parallel
• For bridge position
• Coils wound asymmetrically to produce a sound somewhere between single-coil and dual-coil
• 4-wire cable with shielding and plain shield conductor
• DC resistance: 4.0 kOhm per coil
• Reversed coil polarity
• Magnet configuration: Carbon steel, brass, ceramic blade magnets (ferrite)
• Asymmetric field
• Resonance frequency: 4.4 kHz
• 51 mm maximum sensing width
• Brass bracket with threaded holes
• Dimensions (L x W x H): 70.1 x 38.9 x 23.4 mm (max. height including cable)
• Colour: Black cover
