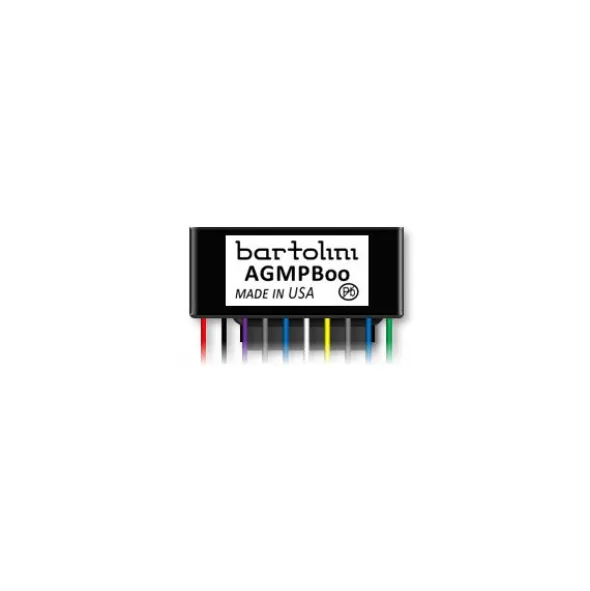

Bartolini Dual Piezo Buffer AGMPBoo Kit

Two-channel buffer preamp set for electric bass

• Clear, transparent sound with extremely low distortion
• Suitable for piezo/microphone pickups in combination with magnetic pickups
• Two independent buffer circuits to combine two pickups

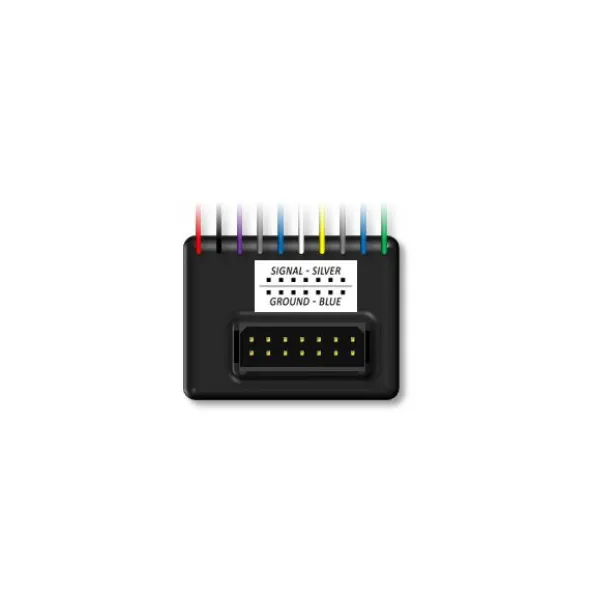

• Circuit identical to AGMPB/918, but with connector for up to 7 plugs of piezo string saddles
• Piezo channel input impedance: 3.3 MOhm
• Input impedance magnetic channel: 1 MOhm
• Output impedance: 3.6 ohm
• Per channel adjustable gain up to 12 dB
• Supports 18V operation for 6 dB additional headroom
• Power supply via 1 x 9V / 2 x 9V (18V) battery (not included)
• Dimensions (L x W x H): 26.7 x 20.1 x 10.9 mm
• Includes 25 kOhm blend potentiometer
