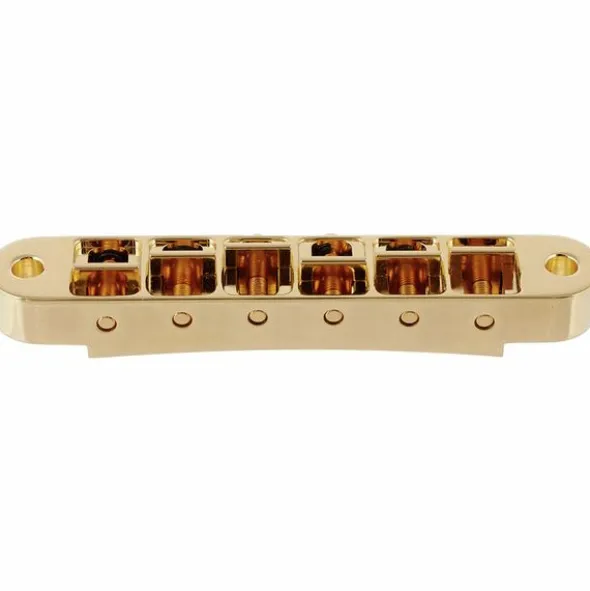

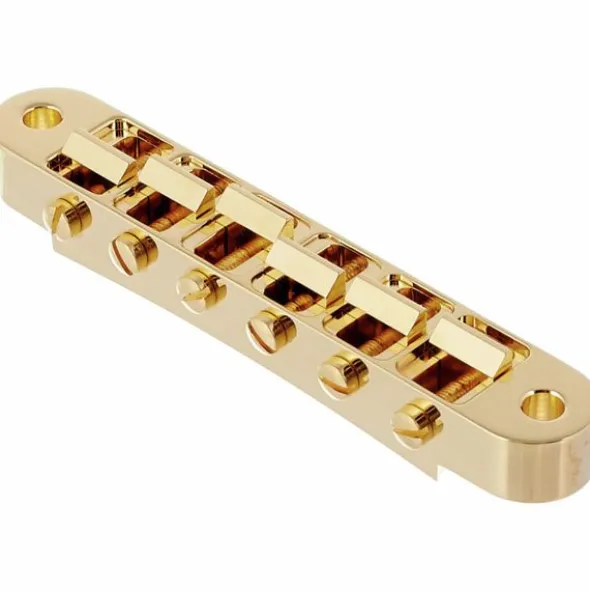

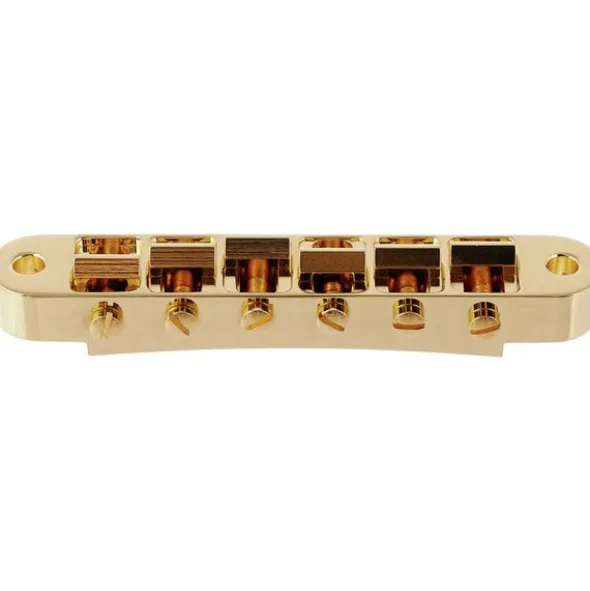

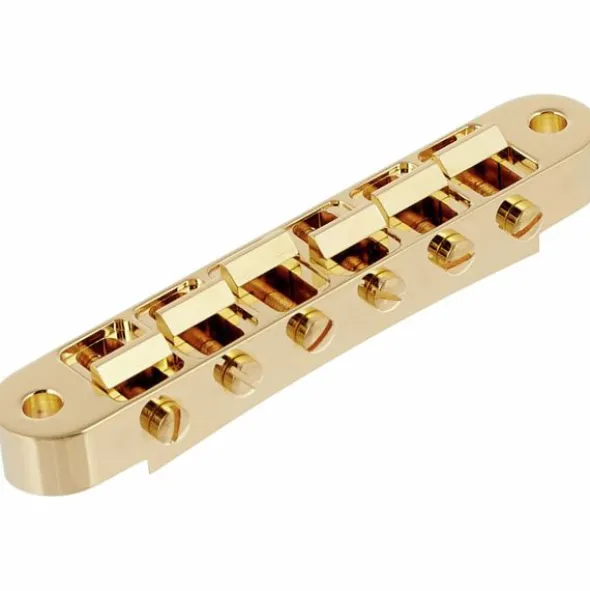

ABM 2504g Bridge

Bridge

• One of the best Nashville-type single cut replacements in the field
• Made in Germany
• The ideal sound tool for professional single cut tuning
• 100% compatible with the original
• High quality: Machined from solid bell brass
• Extremely strict manufacturing tolerances
• Very fast response with a full basic tone, clear treble response, lively overtones, and long sustain
• Much more presence than a simple die-cast bridge
• Ideal in combination with the ABM 3020 (even fuller sound and shifting overtones) or 3020a tailpiece (open high-end guitar sound)
• Expanded adjustment of the intonation
• Finish: 24-karat gold high-gloss

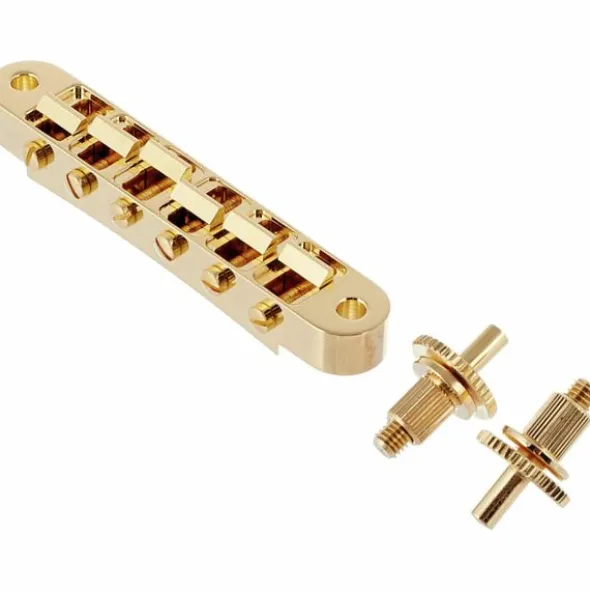

• Includes steel mounting posts and brass bushings

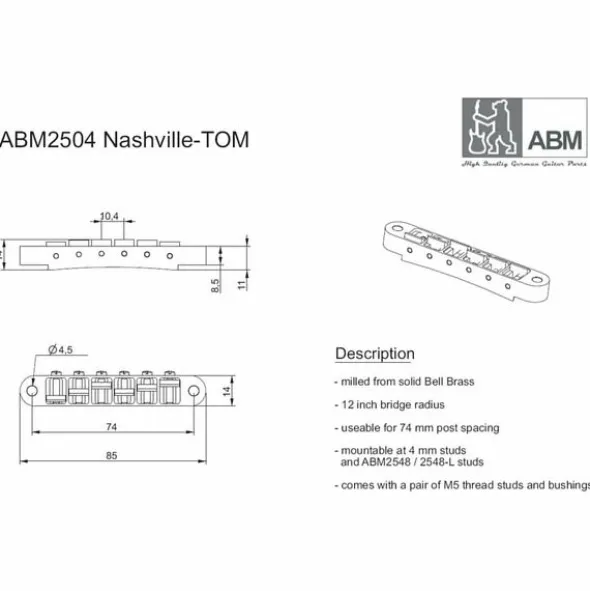

Dimensions:

• Post spacing: 74 mm
• String spacing: 52 mm / 10.4 mm
• Width: 85 mm
• Depth: 14 mm
• Height: 14 mm
• Radius: 12″ = 304.8 mm
• Post socket: For 4 mm
• Posts: M5 with 4 mm head
• Bushing: M5 internal thread with 7 mm outside diameter
